Intermatic 1A850

B00D5PPXTK

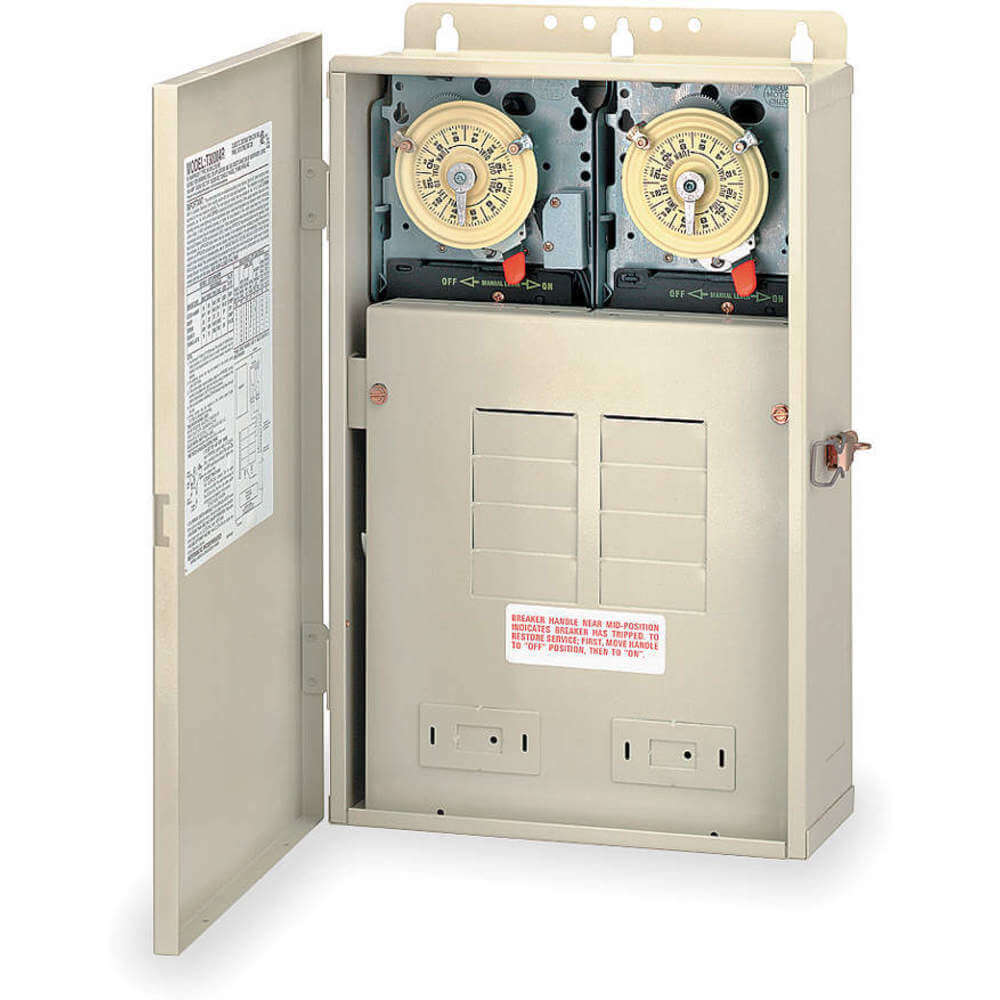

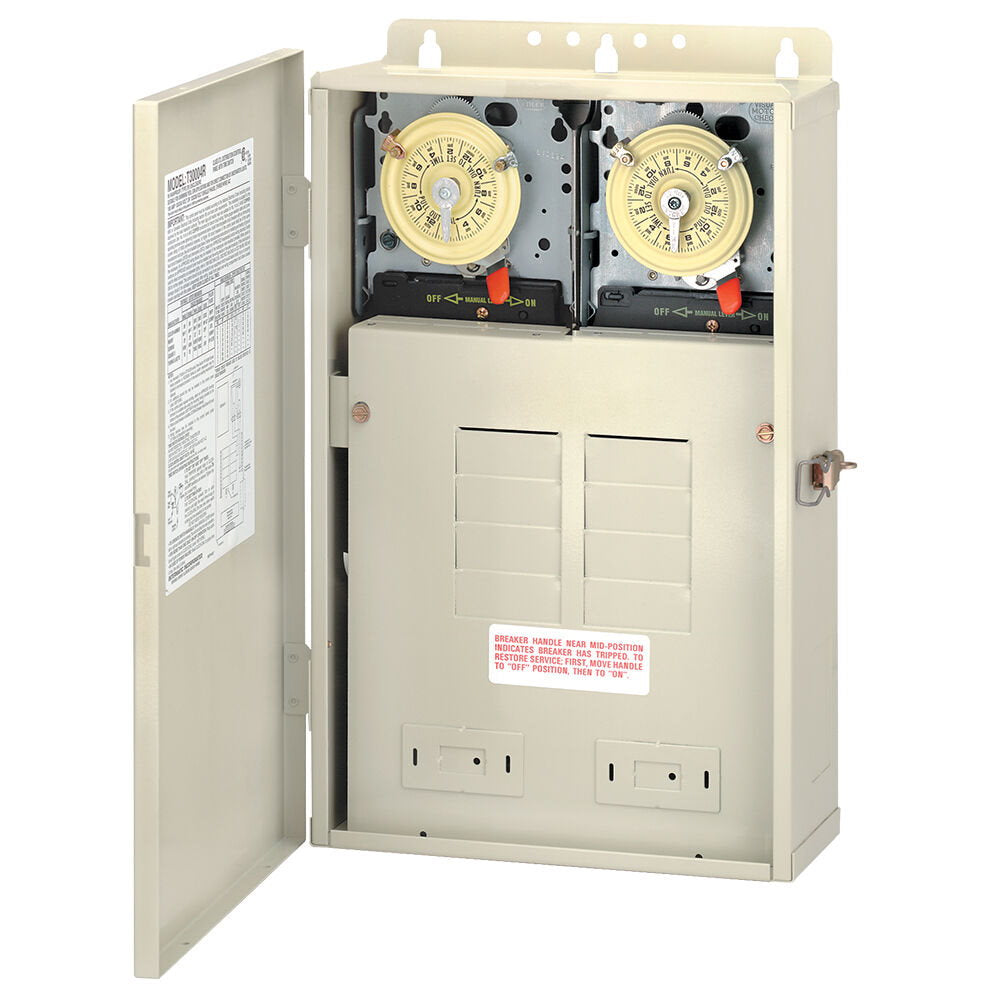

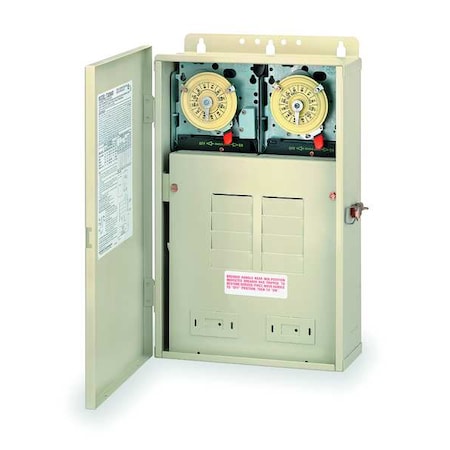

Intermatic T30404R Pool/Spa Control Panel 2xT104M, Color

Intermatic T30404R Pool/Spa Control Panel 2xT104M, Colorzoom

Attributes

Key Value
07827512431 8UPC
1 ON & 1 OFFTrippers Included:
10.875 in.Width (in)
100 AmpsAmperage
16.5 in.Height (in)
240/240 VoltVoltage (V)
4.25 in.Depth (in.)
Additional TrippersSold Separately:
Amperage Rating100, 100 A
Amps30, 30 A
ApplicationsDistribution/Control Pa.
BrandIntermatic
Catalog NumberT30404R
ColorBeige
Contact FormDPST/DPST, DPST-NO
Country of OriginMexico
CSA CertificationcCSAus
CSA, CSAus ListedUL Listed
Current Stock22
Depth4 7/8 in
Description:S/POOL CNTRL DPST,DP
Dimensions16-1/2 in H x 10-7/8 in.
DPST - DPSTSwitch Type:
Enclosure TypeSteel, 3R Beige metal, .
Extra Trippers2E054
Family SeriesIntermatic Miscellaneous
FinishBeige
Gross Weight14.775 lbs
Height16 1/2 in
Horsepower5 hp
Inductive Load Ratings40 A, 240 VAC, 60 Hz; 4.
Inductive Load Ratings .40 A, 120-240 VAC, 60 Hz
IntermaticBrand
International ShippingNo
IP/NEMA RatingNEMA 3R
ItemElectromechanical Water.
Item NumberT30404R
Knockout Dimensions Back(5) 1/2" - 3/4"
Knockout Dimensions Bot.(4) 1/2" - 3/4", (3) 1/.
Knockout Dimensions Left(1) 3/4" - 1"
Knockout Dimensions Rig.(1) 1 3/4" x 2 3/4"
Lead TimeExpected to ship in 1-2.
Load Center Rating Disp.100 A, 120-240 VAC, Sin.
Load Center Ratings100 A, 120 VAC, 60 Hz; .
ManufacturerIntermatic
Manufacturer Part NumberT30404R
MaterialMetal
Max. On/Off Cycles12
Max. Time Setting23 hr
Mechanical ControlsFamily
Mechanism Supply Voltage240/240 VAC, 60 Hz
Mechanisms(2) T104M
MFG Part #:T30404R
Min. Time Setting1 hr
Motor Load Ratings Rang.2 HP, 24 FLA @ 120 VAC,.
MountingWall
Mounting TypeWall
MpnT30404R
Net Weight13.48 lbs
Number Of Breaker Knock.8
Number Of Circuits2
Number of Poles2
Number Of Receptacle Sw.2
Operating Temperature M.130?F; 54?C
Operating Temperature M.-40?F; -40?C
Panelboard TypeReview
PDF Standards And Certi.cCSAus
Pilot Duty Load Ratings1000 VA, 120 VAC, 60 Hz.
Pilot Duty Load Ratings.1000 VA, 120-240 VAC, 6.
Power Consumption Max W3 W
Product Depth4.75 in; 120.7 mm
Product Depth (in)4.75
Product Height16.875 in; 428.6 mm
Product Height (in)16.875
Product Width10.875 in; 276.2 mm
Product Width (in)10.875
Range24 hr
Resistive Load Ratings40 A, 240 VAC, 60 Hz; 4.
Resistive Load Ratings .40 A, 120-240 VAC, 60 Hz
SeriesT30000R
SKUZO-G1476833
StandardsCalifornia Proposition .
SteelHousing
SubCategoryElectrical
Supplier:Intermatic
Switch TypeDPST/DPST
T30404RStock Code
Temperature Rating-40 to 130 deg F
Time Setting24 hr
Tungsten Load Ratings40 A, 120 VAC, 60 Hz; 4.
Tungsten Load Ratings R.40 A, 120-240 VAC, 60 Hz
TypeMechanical, DPST, 1-Pha.
UPC078275124318, 782751243.
UPC:078275124318
Voltage240V AC
Voltage Rating240/240, 240 VAC
Volts AC240
Warranty Period1-Year limited
Width10 7/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB002ZPGS4A265.991In StockIntermatic265.99 @ 1
Hawk ElectronicsT30404R293.271In StockIntermatic293.27 @ 1
thumbzoombigfrogsupply.comT30404R293.271In StockIntermatic293.27 @ 1
thumbzoomZoroG1476833293.27146Intermatic15.65293.27 @ 1
thumbzoomgordonelectricsupply.comT30404R299.721In StockINTERMATIC299.72 @ 1
thumbzoomelectricsuppliesonline.comT30404R299.721In StockINTERMATIC299.72 @ 1
thumbzoomsustainablesupply.comC1164337312.651In StockIntermatic15.65312.65 @ 1
thumbzoomamericanelectrics.comT30404R335.821In StockIntermatic335.82 @ 1
thumbzoomsimsupply.comZO-G1476833347.16122Intermatic347.16 @ 1
thumbzoommidwestapplianceparts.comT30404R-IN-P354.121In StockIntermatic354.12 @ 1
thumbzoombulbspro.comT30404R359.811In StockIntermatic359.81 @ 1
kscdirect.comINT T30404R366.551In StockINTERMATIC366.55 @ 1
lesliespool.com308745369.991In StockIntermatic369.99 @ 1
thumbzoomGalcoT30404R-TRMC387.921In StockIntermatic14.775387.92 @ 1
thumbzoomPlatt.com0029632391.041In StockIntermatic391.04 @ 1
thumbzoommayerelectric.comINTT30404R404.211In StockINTERMATIC404.21 @ 1
kirbyrisk.com557905407.861In StockIntermatic407.86 @ 1
thumbzoomcrescentelectric.com348294420.371In StockIntermatic420.37 @ 1
thumbzoomVoomi SupplyT30404R433.561In StockIntermatic433.56 @ 1
thumbzoomimprovedepot.com48272524.81In StockIntermatic524.8 @ 1
thumbzoomRaptor SuppliesAA8TXF665.94061In StockINTERMATIC665.9406 @ 1
