Leeson 101341

mpn101341
brandname: LEESON
manufacturername: LEESON

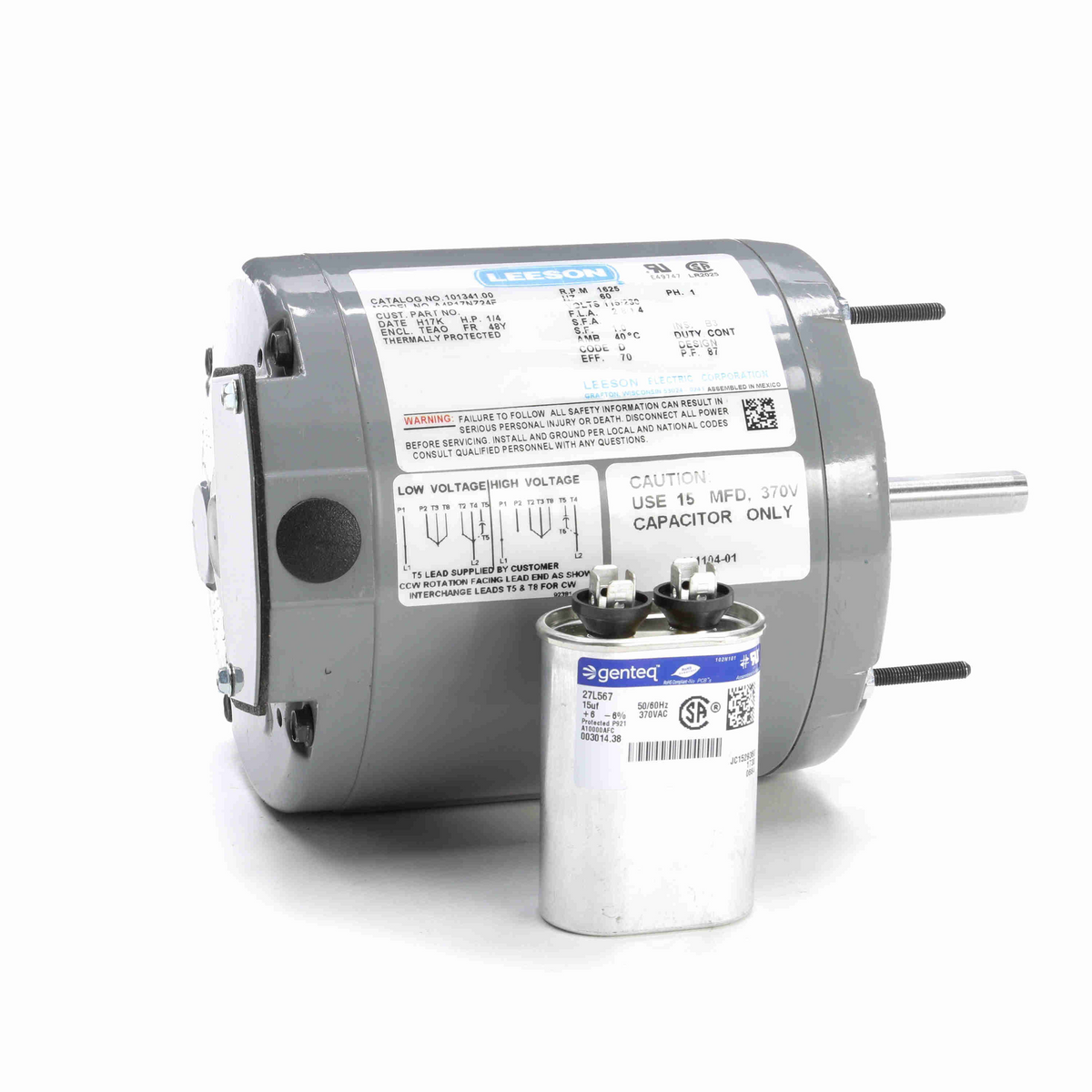

Leeson 101341.00 1/4HP 1625RPM 48 TENV 115/230V 1PH 60HZ AIROVER

Leeson 101341.00 1/4HP 1625RPM 48 TENV 115/230V 1PH 60HZ AIROVER

zoom

Brand: Leeson
PartNumber: 101341

Attributes

Key	Value
1/2 Load Efficiency	58.1%
1/2 Load Power Factor	76%
3/4 Load Efficiency	67.2%
3/4 Load Power Factor	83%
Amps	2.8/1.4
Bearing Type	Ball
Bearings	Ball
Construction	Rolled Steel
Dimensions	10.31 Inch L x 5.62 Inc.
Duty	Continous, Airover
Duty Cycle	Continuous
Efficiency	70.0%
Enclosure Material	Rolled Steel
Enclosure Type	TEAO (Totally Enclosed .
Frame	48Y
Frame Size	48
Frame Type	48Y
Frequency Rating	60 Hz
Full Load Ampere	2.8 A
Full Load Efficiency	70%
Full Load Power Factor	87%
HP	1/4
HP Rating	0.25 HP
Hz	60
Insulation Class	B
Insulation Type	Class B
Item Name	Hatchery And Incubator .
KVA Code	D
Locked Rotor Ampere	5 A
Maximum Ambient Tempera.	40? C
Motor Shell Length	4.50"
Mounting	Round
Mounting Type	Round
Number of Poles	4
Number of Speeds	1
Overall Length	8.93"
Overload Protector	Automatic
Phase	1, 1-Phase
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible, Selective C.
RPM	1625
Service Factor	1, 1.0
Shaft Diameter	0.500", 0.5 Inch
Shaft Length	2.31 Inch, 2.13"
Shaft Position	Horizontal
Ship Weight	15 lbs.
Speed Rating	1625 rpm
Standards	UL File No E49747 Liste.
Start Method	Across The Line, Perman.
Temperature Rating	40 ?C
Thermal Protection	Yes, Automatic
Torque Rating	12 lb-ft
Trade Name	Leeson
Type	PN
Voltage Rating	230 VAC
Volts	115/230
Weight	15 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	emotorpro.com	101341	268.36	1	In Stock		Leeson	15.0	268.36 @ 1
	factorysupplyoutlet.com	RJ80UI	383.88	1	In Stock		LEESON		383.88 @ 1
	National Supply Network	B588353	574.01	2	In Stock		LEESON ELECTRIC		574.01 @ 2
	EIS	MOT101341	584.0	1	In Stock		LEESON	15.0	584.0 @ 1
