Lovejoy 68514476506

B010DSW8D0

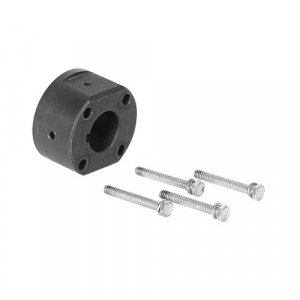

Lovejoy 68514476506 Cast Iron 6SCH Spacer Hub, 15/16" Bore, 1/4" x 1/8" Keyway, 2.5" OD, 450 Inch Pounds Item Torque

Lovejoy 68514476506 Cast Iron 6SCH Spacer Hub, 15/16" Bore, 1/4" x 1/8" Keyway, 2.5" OD, 450 Inch Pounds Item Torquezoom

Attributes

Key Value
# of Cap Screws Required4
Bore Size15/16 in
Bore TypeFinished Bore
Cap Screw Required Size1/4 - 1-3/4
ColorGray
Coupling TypeCoupling Hubs, S-Flex
Cubic inches7.62500 in3
Description:6SCH-SPCR HUB-15/16-1/4.
Dimension L1.220 in (30.99 mm)
Dimension SL0.630 in (16.00 mm)
Hub #6SCH
Keyway Size (W x D)1/4 x 1/8 in
ManufacturerLOVEJOY INC
MaterialCast Iron
Max. Bore1.375 in
Max. Speed6000 rpm
MFG Part #:68514476506
Nominal Torque (with EP.450 in-lb
Outside Diameter2.500 in (63.50 mm)
Rated HP at 1,200 rpm8.60 hp
Rated HP at 1,800 rpm12.90 hp
Rated HP at 100 rpm0.70 hp
Rated HP at 3,600 rpm25.70 hp
Supplier:LOVEJOY INC
Thread (Dimension T)5/16-18
Torsional Stiffness1718.00 in-lb/rad
UPC:685144765062
Weight1.47 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepot6851447650652.771In StockLovejoy1.4752.77 @ 1
thumbzoomusmegastore.com6851447650652.771In StockLovejoy1.4752.77 @ 1
thumbzoomheavydutydepot.com6851447650652.772In StockLovejoy52.77 @ 2
cbtcompany.com6851447650657.51In StockLovejoy57.5 @ 1
kscdirect.comLOV 6851447650660.411In StockLOVEJOY INC60.41 @ 1
thumbzoommidwestapplianceparts.com68514476506-LJ-P83.031In StockLovejoy83.03 @ 1
Airline HydraulicsLOVEJOY 68514476506106.791In StockLOVEJOY106.79 @ 1
