Mid-West Instrument 120-AA-00-OO-100P

B00859X4J2

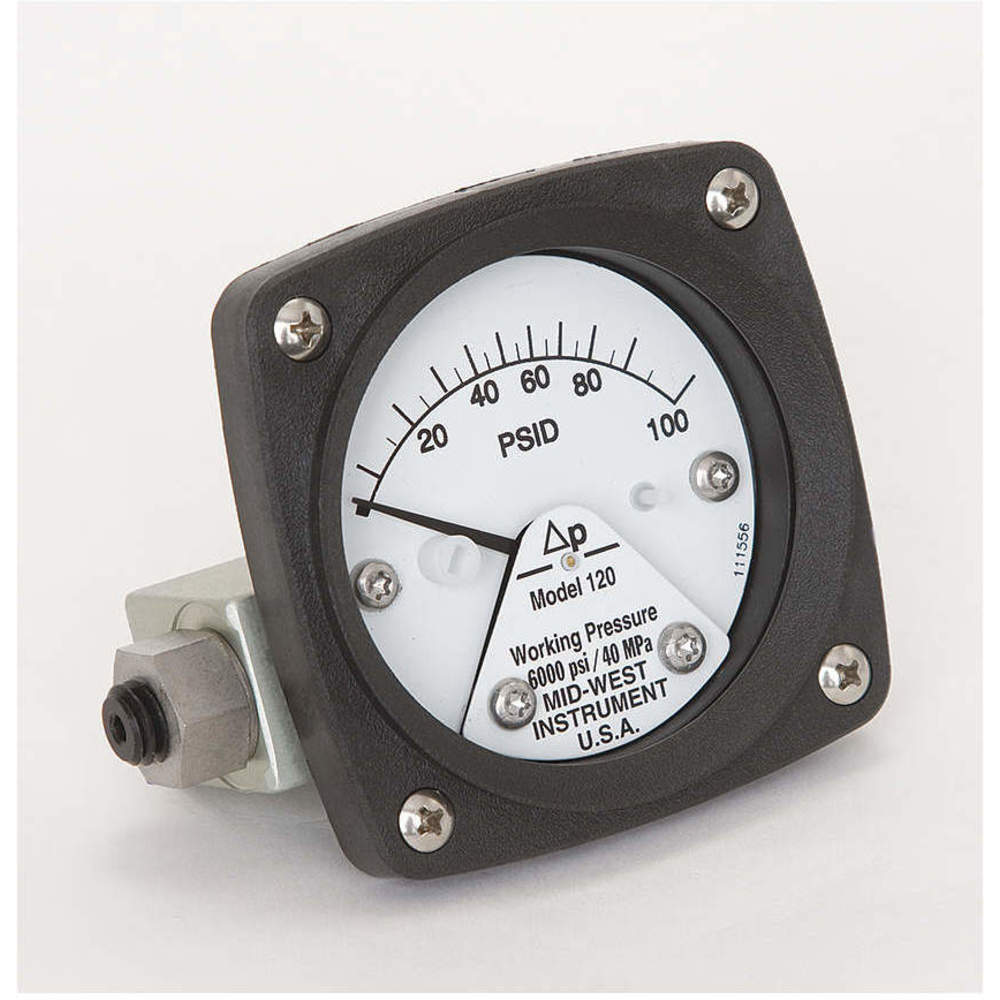

Mid-West 120-AA-00-OO-100P Differential Pressure Gauge with Aluminum Body and Stainless Steel Internals, Piston Type, 3/2/3% Full Scale Accuracy, 2-1/2" Dial, 1/4" FNPT Back Connection, 0-100 psid Range, 3000 psig SWP

Mid-West 120-AA-00-OO-100P Differential Pressure Gauge with Aluminum Body and Stainless Steel Internals, Piston Type, 3/2/3% Full Scale Accuracy, 2-1/2" Dial, 1/4" FNPT Back Connection, 0-100 psid Range, 3000 psig SWPzoom

Attributes

Key Value
Accuracy+/-3-2-3%
Accuracy GradeASME B40.1 Grade B
Adjustable Set PointsYes
Ambient Operating Tempe.-40 Degrees to 200 Deg.
ApplicationHydraulics, Filtration .
Basic Gauge Case Materi.Metal
Basic Gauge Wetted PartsStainless Steel / Buna-N
Bezel Gasket MaterialBuna-n
Blowout Safety BackNo
Bolt Circle Diameter3.5 in
BrandMidwest Instrument
Case ConstructionGlass Reinforced
Case Depth0.75 in
Case Diameter3 in
Case ShapeRound
Current Stock3
Dial ColourWhite
Differential Gauge Conn.1/4 in
Differential Gauge Conn.FNPT
Differential Pressure G.Differential Pressure G.
Differential Pressure R.0 to 100 psi
Differential Pressure R.psi
Differential Pressure R.0 to 100
Gauge Accuracy+/-3-2-3%
Gauge Case MaterialPlastic
Gauge Connection Locati.Back
Gauge Nominal Dial Size2 1/2 in
Gauge Operating Temp. R.-40 Degrees to 200 Deg.
Gauge Primary Range Sma.5
Hazardous Location Rati.Not Rated
Housing MaterialAluminum
IncludesInstructions
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
International ShippingNo
IP/NEMA RatingIP65, NEMA 4X
ItemDifferential Pressure G.
Lead TimeExpected to ship in 1-2.
Lens MaterialAcrylic
Manufacturer Warranty L.5 yr
Manufacturers Warranty .5 yr
Maximum Working Static .3,000 psig
Mounting TypePanel-Mount
Movement MaterialStainless Steel
Mpn120-AA-00-OO-100P
Nominal Dial Size2 1/2 in
Non-SparkingNo
Panel Mount Characteris.3 L Dia Holes on E Dia .
Panel-MountableYes
Piston MaterialStainless Steel
Pressure Gauge TypeDifferential Pressure G.
Pressure Range0 to 100 psid
Primary Scale Minor Gra.5
Process Connection Gend.Female
Process Connection Loca.Back
Process Connection Size1/4 in
Process Connection TypeNPT
Process Temperature Ran.-40 Degrees to 200 Deg.
Rated Total Pressure3000 PSI, 3,000 psi
Removable BezelNo
Repeatability1%
Seal MaterialBuna-n
Sensor MaterialBuna-n
Sensor TypePiston
Series120
SKUZO-G0017911
StandardsASME B1.20.1, ASME B40..
SubCategoryTest Instruments

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC1757692165.561In StockMid-West Instrument0.8165.56 @ 1
thumbzoomZoroG0017911173.9917Midwest Instrument0.8173.99 @ 1
Transcat120-AA-00-OO-100P182.01In StockMID-WEST INSTRUMENT182.0 @ 1
grainger.caWWG3GUZ9212.791803081In StockMIDWEST INSTRUMENT0.8212.79180308 @ 1
thumbzoomsimsupply.comZO-G0017911217.8413Midwest Instrument217.84 @ 1
thumbzoomRaptor SuppliesAC9JGV277.11397351In StockMIDWEST INSTRUMENTS277.1139735 @ 1
