Schneider Electric XB5AA711237

B01LYU79Z0

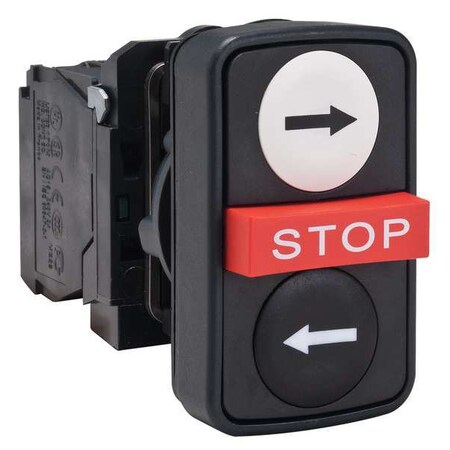

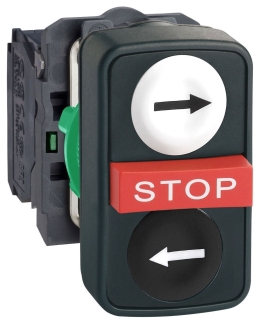

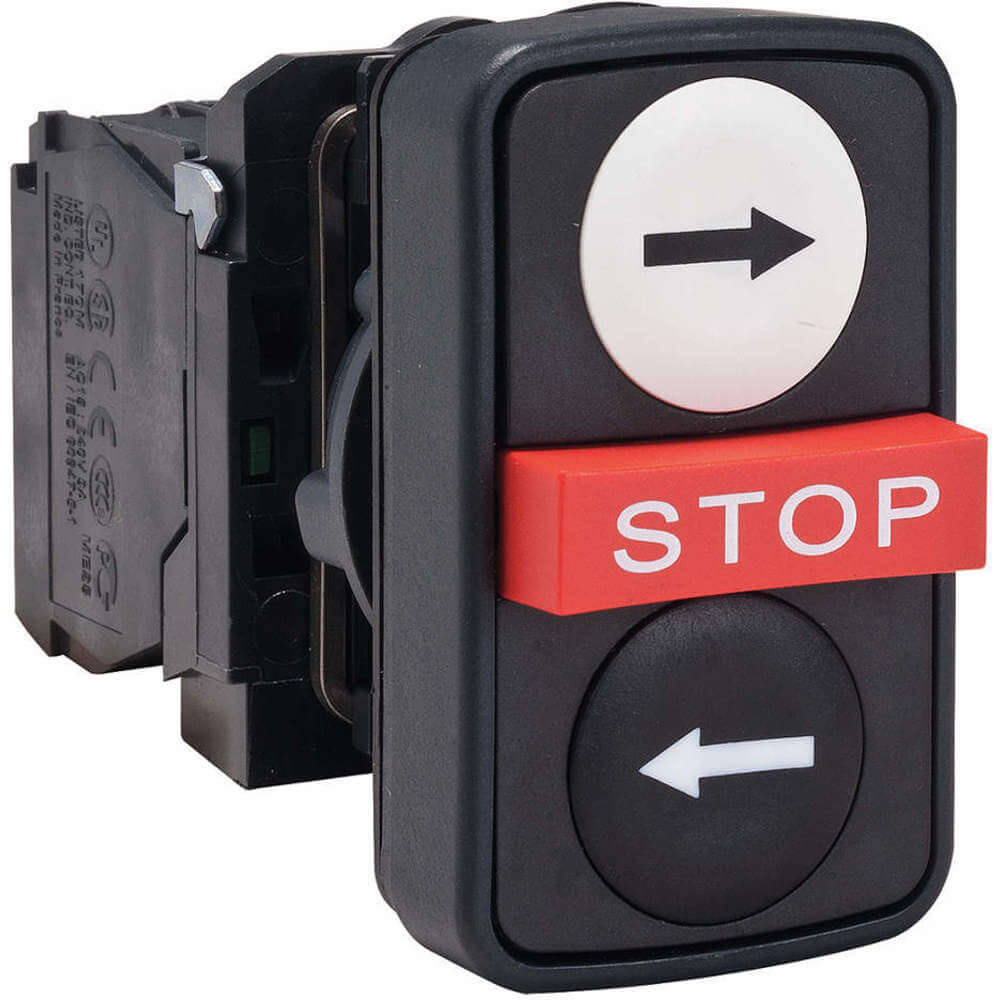

Non-Illum Multi Push Contact,Arrows

Non-Illum Multi Push Contact,Arrowszoom

Attributes

Key Value
ActionMomentary
Actuator TypeRound, Button, Flush
Ambient Air Temperature.-40-70?C
ASINB00DBSRL9G
Batteries Included?No
Batteries Required?No
Bezel Materialdark grey plastic
CategorySwitches
CertificationUL
Circuit3PST-2NO/1NC
Color - Actuator/CapBlack, Red, White
Contact Form2NO/1NC
Contact Rating10A @ 600V AC
Contacts Type And Compo.2 NO + 1 NC
Contacts Usagestandard contacts
Current Rating (Amps)6A (AC), 550mA (DC)
DescriptionPLSTC FLSH 3 BUTTON CMP.
Detailed DescriptionPushbutton Switch 3PST-.
Digi-Key Part Number4008-XB5AA711237-ND
Electrical Life1,000,000 Cycles
Features-
Head MaterialPlastic
Illumination Type, Color-
Illumination Voltage (N.-
IncludesBlack Arrow on White BA.
Ingress ProtectionIP67/IP69K - Dust Tight.
IP Rating66, 69K
ItemMultihead Operators wit.
Item model numberXB5AA711237
LegendRight Arrow/Left Arrow/.
Legend/Background ColorBlack/White, White/Blac.
ManufacturerSchneider Electric
Manufacturer Product Nu.XB5AA711237
Manufacturer Standard L.1 Weeks
Measurement SystemMetric
Mechanical Life1,000,000 Cycles
MfrSchneider Electric
Mounting Diameter22 mm
Mounting TypePanel Mount, Front
NEMA Contact Rating Des.A600/Q600
NEMA Rating1, 12, 3, 4, 4X
Number of Heads3
Operating Temperature-25?C ~ 70?C
PackageBox
Panel Cutout DimensionsCircular - 22.00mm Dia
Part NumberXB5AA711237
Product StatusActive
Product TypeMultihead Operators wit.
Resistance To High Pres.7000000 Pa 55?C 0.1 m
SeriesHarmony XB5
ShapeRectangular
Shock Resistance30 gn 18 ms) half sine .
Size22 mm
StandardsCE, CSA, RoHS, UL
Switch FunctionOn-Mom, Off-Mom
Termination StyleScrew Terminal
TypeStandard
Type of Operator(1) Extended Button, (2.
UNSPSC Code31160000
Voltage Rating - AC120 V
Voltage Rating - DC125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG471066686.2512Schneider Electric0.186.25 @ 1
thumbzoomgordonelectricsupply.comXB5AA71123799.591In Stock10SQUARE D99.59 @ 1
thumbzoomNewark89T7920107.851In StockSCHNEIDER ELECTRIC107.85 @ 1
thumbzoomRadwellXB5AA711237115.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE115.0 @ 1
thumbzoomsustainablesupply.comC1174439119.941In StockSchneider Electric0.1119.94 @ 1
Future Electronics1028415125.15In StockSchneider Electric125.1 @ 5
AmazonB00DBSRL9G125.871In StockSchneider Electric125.87 @ 1
thumbzoomDigi-Key17179617131.011In StockSchneider Electric131.01 @ 1
thumbzoomRaptor SuppliesAF7ZGQ152.6076631In StockSCHNEIDER ELECTRIC152.607663 @ 1
