CAI - SQUARE D QO612L100DF

B000E32OW0

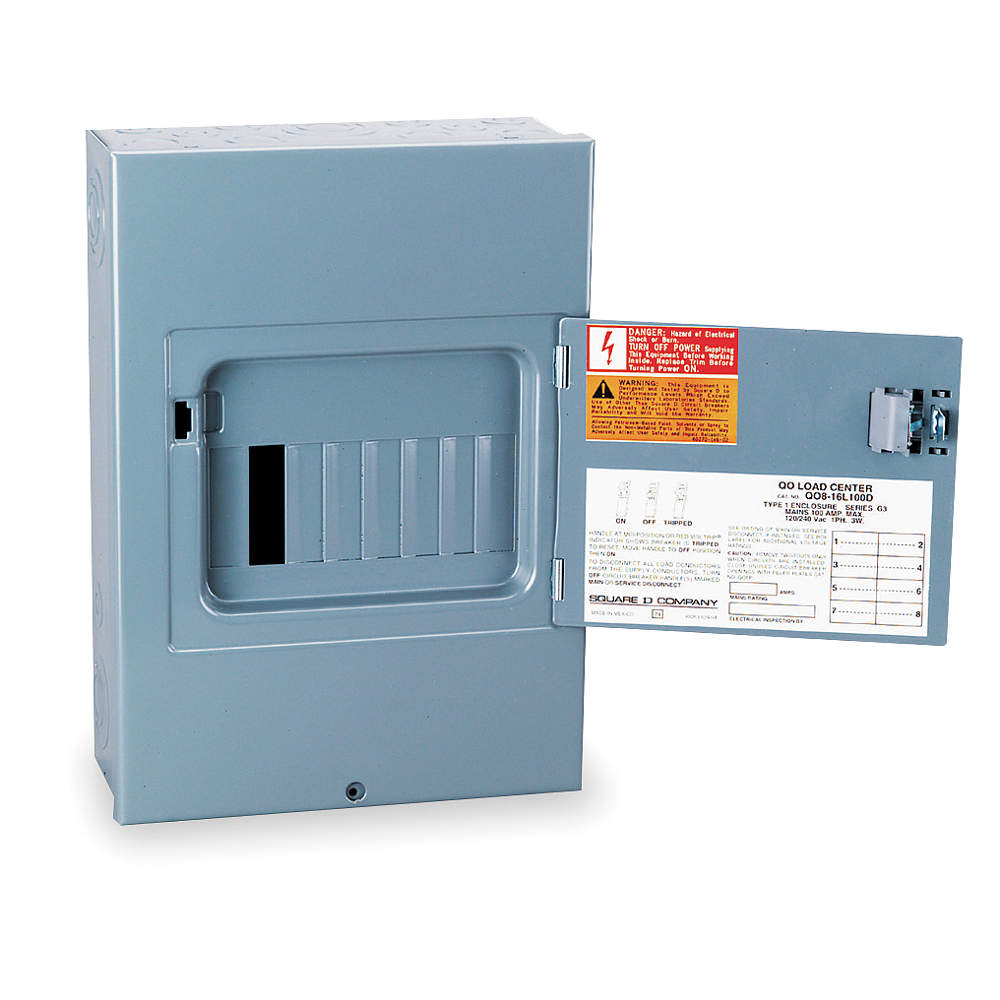

Load Center, Lug, 100A, 120/240VAC, 1Ph

Load Center, Lug, 100A, 120/240VAC, 1Phzoom

Attributes

Key Value
Amperage Rating100
Amps100 A
ApplicationDESIGNED TO MEET RESIDE.
AWG RangeAWG 8...AWG 1 Aluminum/.
BrandSquare D
Bus MaterialTin Plated Aluminum
Cable SizeAWG 8...AWG 1 aluminium.
Catalog NumberQO612L100DF
Circuit Breaker TypeQO
ColorBaked Enamel Gray
Color FamilyGray
ColourGray
ConfigurationEnclosed
Country of OriginMX - Mexico, Mexico
Cover Attachment StyleScrew On
Cover Closure MethodDoor Latch
Cover TypeFlush Cover With Door
Current Rating100 A
Depth3 3/4 in
ECCNEAR99
EnclosureBaked enamel Gray;Welde.
Enclosure MaterialSteel
Enclosure NEMA Rating1
Enclosure Surface FinishEnamel
Feed LocationTop/Bottom
For Use WithSquare D QO Circuit Bre.
GTIN00785901785644
Height5, 12.56 in, 319 mm
Included Enclosure CoverFlush Cover
Interrupt Rating10 kA
ItemLoad Center
Item TypeLoad Center
Length15
LocationIndoor
Made in USANo
Main Circuit Breaker or.Main Lug
Main TypeFixed Mains (Lugs)
ManufacturerSchneider Electric
MaterialTin Plated Aluminum Bus.
Max. No. of Tandem Brea.6
Max. Operating Temp.104 Degrees F
Max. Single Pole Circui.6
Max. Tandem Circuits12
MFRQO612L100DF
Min. Operating Temp.23 Degrees F
Mounting TypeFlush
No. of Circuits12
No. of Spaces6
No. of Wires3-wire
Number of Circuits12
Number of Spaces6
Phase1, 1 Phase
Rated Current100A
Recommended Flush CoverIncluded
Recommended Ground Bar .1D374
Recommended Surface Cov.Included
SeriesQO Series, QO
Short Circuit Current R.10kA, 10 kA
SKU11637318
Special FeaturesTin plated aluminium bu.
StandardUL LISTED
StandardsUL, RoHS Compliant, UL .
Sub BrandQO
UNSPSC39121101
UPC785901785644
UPC Code785901785644
Voltage120/240V AC
Voltage Rating240 V, 120/240 V AC
Warranty DescriptionContractual Warranty:18.
Width11, 8.91 in
Wire SizeAWG 8...AWG 1 aluminium.
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Home Depot10020979832.581In StockSquare D32.58 @ 1
thumbzoomsustainablesupply.comC120389545.01In StockSquare D13.045.0 @ 1
thumbzoomZoroG118622755.691389Square D13.055.69 @ 1
thumbzoomgordonelectricsupply.comQO612L100DF56.091In Stock10SQUARE D56.09 @ 1
Newark80C444169.121In StockSQUARE D BY SCHNEIDER ELECTRIC69.12 @ 1
steinerelectric.com9955369.541In StockSquare D?69.54 @ 1
thumbzoomhardwareandmoreee.com21662571.691In StockSQUARE D BY SCHNEIDER ELECTRIC71.69 @ 1
Toolbox Supply1163731874.021In StockSquare D74.02 @ 1
thumbzoomHardware and ToolsUKLB-1170103.091In StockSquare D103.09 @ 1
us.rs-online.com70405635116.4711Square D116.47 @ 1
Graybar88243003121.90081In StockSquare D (Schneider Electric)121.9008 @ 1
grainger.caSQDQO612L100DF157.724901861In StockSQUARE D13.0157.72490186 @ 1
thumbzoomcrescentelectric.com51872186.891In StockSquare D186.89 @ 1
thumbzoomRaptor SuppliesAJ2HNU193.80435751In StockSQUARE D193.8043575 @ 1
