- mpnC22669
- brandname: Cle-Line
- manufacturername: Cle-Line

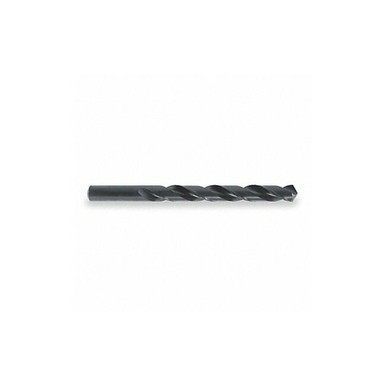

Jobber Bit, 39, High Speed Steel
- Brand: Cle-line
- PartNumber: C22669
- Model: C22669
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 797 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0995 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0995" |
| Diameter (Wire/Let) | 39 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #39 |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0299 in |
| Drill Size - Decimal In. | 0.0995 in |
| Drill Size - Wire | #39 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Tin, Black Oxide |
| Flute Length | 1 3/8 in, 1.3750", 1-3/. |
| Flute Length (Metric) | 34.92mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/32 in |
| Mpn | C22669 |
| Number of Flutes | 2 |
| Overall Length | 2-3/8 in, 2 3/8 in, 2.3. |
| Overall Length (Metric) | 60.32mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 3/32 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.0995 in Dia x 1 in L,. |
| Shank Size (Metric) | 2.53mm |
| Shank Type | Straight |
| SKU | ZO-G1155463 |
| Style | 1899 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | #39 |
| UPC | 697334226697 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545205 | 0.8387 | 12 | 12 | | Cle-Line | | 0.8387 @ 12 |
 | MRO Supply | 6124262 | 1.02 | 50 | 12 | | Cle-Line | | 1.02 @ 50 |
 | Zoro | G1155463 | 1.05 | 1 | 990 | | Cle-Line | 0.01 | 1.05 @ 12 |
 | Megadepot | C22669 | 1.32 | 1 | 12 | | Cle-Line | | 1.32 @ 12 |
 | usmegastore.com | C22669 | 1.32 | 1 | 12 | | Cle-Line | | 1.32 @ 12 |
 | heavydutydepot.com | C22669 | 1.35 | 75 | 12 | | Cle-Line | | 1.35 @ 75 |
 | sustainablesupply.com | C2765297 | 1.37 | 1 | 12 | | Cle-Line | 0.01 | 1.37 @ 12 |
 | Raptor Supplies | AD6TUJ | 1.4190345 | 1 | 12 | | CLE-LINE | | 1.4190345 @ 12 |
 | simsupply.com | ZO-G1155463 | 7.22 | 1 | 797 | | Cle-Line | | 7.22 @ 12 |
