Dayton 2ZXA7

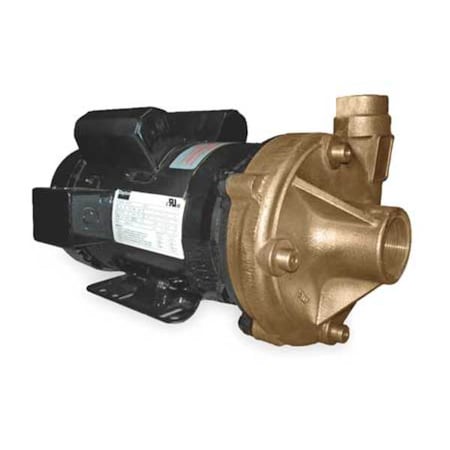

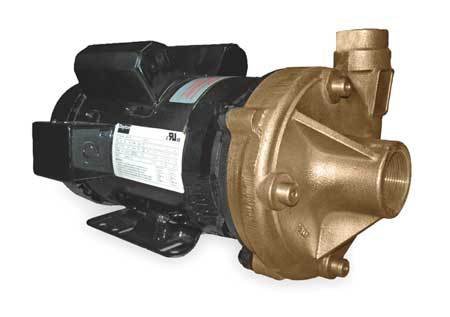

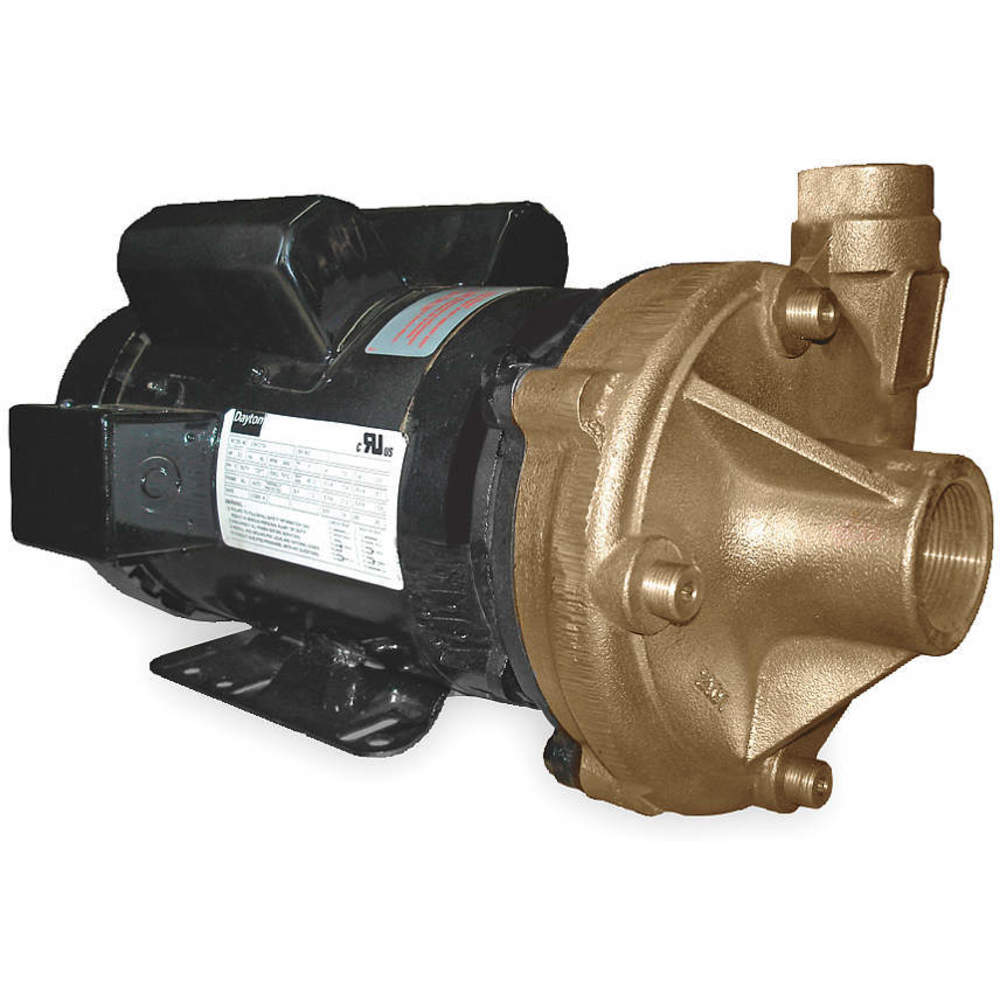

Dayton Bronze 3 HP Centrifugal Pump 230V, 2ZXA7

Dayton Bronze 3 HP Centrifugal Pump 230V, 2ZXA7zoom

Attributes

Key Value
Agency ComplianceUL Approval in Motor
Amps-/12.5
Bearing TypeBall
Best Efficiency Flow95 gpm
Best Efficiency GPM @ H.95 @ 57 ft
Best Efficiency Head57 ft
Compatible Discharge Pi.1 1/4 in
Compatible Intake Pipe .1 1/2 in
Compatible with Media T.Non-Flammable Liquids
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.107 gpm
Flow Rate @ 100 ft of H.43 gpm
Flow Rate @ 120 ft of H.17 gpm
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.105 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.103 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.98 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.92 gpm
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.87 gpm
Flow Rate @ 60 ft of He.79 gpm
Flow Rate @ 70 ft of He.72 gpm
Flow Rate @ 80 ft of He.63 gpm
Flow Rate @ 90 ft of He.55 gpm
For Use With Potable Sy.No
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.107
GPM of Water @ 100 Ft. .43
GPM of Water @ 110 Ft. .32
GPM of Water @ 120 Ft. .17
GPM of Water @ 130 Ft. .2
GPM of Water @ 15 Ft. o.105
GPM of Water @ 20 Ft. o.103
GPM of Water @ 25 Ft. o.100
GPM of Water @ 30 Ft. o.98
GPM of Water @ 40 Ft. o.92
GPM of Water @ 50 Ft. o.87
GPM of Water @ 60 Ft. o.79
GPM of Water @ 70 Ft. o.72
GPM of Water @ 80 Ft. o.63
GPM of Water @ 90 Ft. o.55
Height9 in
Horsepower3 hp
Housing MaterialBronze
Housing Material - PumpsBronze
HP3
HP - Pumps3 hp
Hz60
Impeller DesignClosed
Impeller MaterialStainless Steel
Impeller TypeClosed
IncludesManual
Inlet1-1/2"
Inlet Pressure200 psi
Inlet Size - Pumps1-1/2 in NPT
Intake and Discharge Si.1 1/2 in , 1 1/4 in
Intake TypeNPT
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Length18 in
Length (Straight Wirewa.18 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids5/16 in
Max. Head131 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure56 psi
Max. Pressure - Pumps56 psi
Max. Specific Gravity1.0
Maximum Feet of Head130 ft
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Minimum Media Temperatu.40 Degrees F
Motor EnclosureTEFC, Totally Enclosed .
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Enclosure BroadTEFC
Motor Enclosure TypeTEFC
Motor Frame Designation56J
Motor RPM3,450 RPM
Motor TypeTEFC
Nameplate Voltage230V AC
Nominal Voltage230V AC
Outlet1-1/4"
Outlet Size - Pumps1-1/4 in NPT
Overall Height8.9 in
Overall Length18 in
Overall Width8.8 in
Phase1, Single
Phase - Pumps1
Phase Broad1
Port Rotation4 Position Increments
Pump Housing MaterialBronze
Pump Housing Material B.Brz
Pumping ApplicationAggressive Liquid Appli.
Seal MaterialViton
Seal TypeMechanical
Shaft MaterialStainless Steel
Shut Off Pressure (Maxi.56 psi
Solid Diameter (Maximum)0.31 in
Specific Gravity (Maxim.1
StandardsUL Listed (Motor Only)
Voltage230VAC
Voltage - Pumps240V AC
Wetted Material316 Stainless Steel, Br.
Wetted MaterialsBronze, Brass, Viton, C.
Width8 3/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG11247241060.221In Stock26Dayton80.01060.22 @ 1
grainger.caGGM2ZXA71208.169409541In StockDAYTON65.01208.16940954 @ 1
thumbzoomsustainablesupply.comC17053091568.721In StockDayton80.01568.72 @ 1
thumbzoomRaptor SuppliesAC4HQA1742.11625251In StockDAYTON1742.1162525 @ 1
