Hubbell HBL24CM33

B00NGHCT9Y

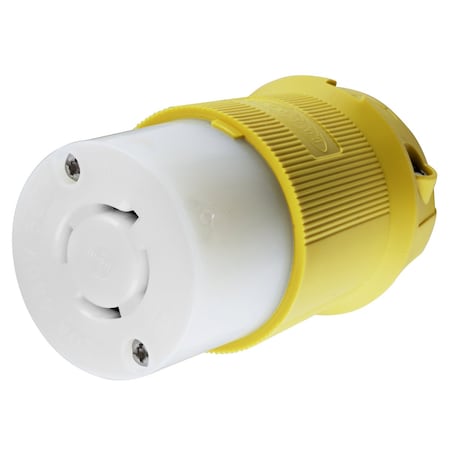

Hubbell HBL24CM33 03852 Locking Device Connector, See Image

Hubbell HBL24CM33 03852 Locking Device Connector, See Imagezoom

Attributes

Key Value
Amperage20 A
Amperage Rating20, 20, 20 A
ApprovalsCSA, UL
Body TypeStraight
BrandHubbell Wiring Device -.
Cable range0.350 - 1.150 in
Catalog NumberHBL24CM33
ColorYellow
ConnectivityPressure Terminal Screws
Cord dia35 in-1.15 in
Cord Diameter0.35 to 1.15, 0.35 to 1.
Cord range0.350 in-1.150 in (9-29)
Corrosion ResistantYes
Country of Origin (subj.United States
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric strengthWithstands 2,000V minim.
Dimensions2.33 x 2.33 x 3.86, 2.3.
EnclosureIP20
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Plugs & Recepta.
Gross Weight0.22 lbs
GTIN00783585038520
Height3.86 in
Horsepower5, 5 hp
InsulationInsulated Body
Isolated GroundNo
Item NumberHBL24CM33
Length2.33 in
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberHBL24CM33
MaterialNylon
Material - mounting har.Cord Mounted
Max HP5
MountingCord
NEMA ConfigurationL16-20R
Nema RatingL16-20R
NEMA RatingL16-20R/WD1/WD5, 6
Net Weight0.465 lbs
Number of poles3-Pole
Number of Poles3
Number of wires4-Wire
Number of Wires4
Operating temperatureMaximum continuous 75C .
Phase3, Three phase
Temperature rating-40 C w/o impact, -25 w.
Temperature Rating (Deg.-40 to 75, -40 to 75 de.
Terminal TypePressure Screw
Type3-Phase Heavy Duty Isol.
UPC783585038520
Voltage480 VAC
Voltage Rating480 Delta VAC, 480 VAC .
Voltage rating descript.480 VAC
WatertightNo
Width (in)2.33
Wire size#16 AWG to #8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL24CM3349.91In StockHubbell49.9 @ 1
thumbzoomstandardelectricsupply.com216471569.861In StockHubbell69.86 @ 1
thumbzoomMRO Supply102093169.861In StockHubbell Wiring69.86 @ 1
thumbzoomgordonelectricsupply.comHBL24CM3370.911In StockHUBBELL70.91 @ 1
thumbzoomZoroG80070185275.231In StockHubbell Wiring Device-Kellems75.23 @ 1
us.rs-online.com7198754376.2811Hubbell Wiring Device-Kellems76.28 @ 1
thumbzoomGalcoHBL24CM33-HBBL78.241In StockHubbell0.46578.24 @ 1
steinerelectric.com9158280.911In StockHubbell80.91 @ 1
thumbzoomRadwellHBL24CM3390.011HUBBELL KELLEMS90.0 @ 1
Newark93B494896.341In StockHUBBELL WIRING DEVICES96.34 @ 1
thumbzoomcrescentelectric.com19699299.191In StockHubbell Wiring Device - Kellems99.19 @ 1
kirbyrisk.com1945365147.071In StockHubbell147.07 @ 1
