- mpnXW1E-LV411Q4M-R
- brandname: IDEC
- manufacturername: IDEC

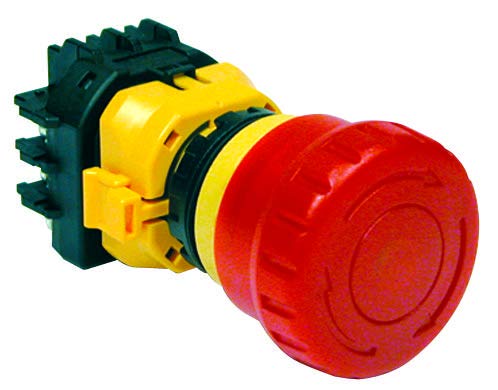

IDEC - XW1E-LV411Q4M-R - Emergency Stop Switch, SPST-NC, Screw DPST-1NO Pushlock Reset/Push-Pull 5 A 250 V 250 V-6pack
- Brand: IDEC
- PartNumber: 4004111114
- Manufacturer: Idec
- Label: Idec
Attributes
| Key | Value |
|---|
| Actuator Color | Red |
| Actuator Type | Button |
| AMP Rating | 5 |
| Approvals | CCC, CE, CSA, UL |
| Bezel | Plastic Round |
| Certification Listings | UL;CSA;CE;CCC |
| Color | Red |
| Contact Configuration | 1NO/1NC |
| Contact Form | SPST-NC ; SPST-NO |
| Contact Material | Gold Plated Silver |
| Contact Rating | 250 V |
| Contacts | 1NO, 1NC |
| Current (A) | 5 A |
| Current Rating | 5 A |
| Depth Behind Panel | 1.92 " |
| Dielectric Strength | 250 V |
| Electrical Life | 100000 (Min.) Operations |
| Family Series | IDEC Switches, XW Series |
| Full Shroud | No |
| Function | E-Stop |
| Gross Weight | 0.1906 lbs |
| Head Size | 40 mm |
| Illumination | Illuminated |
| Illumination Circuit | Full Voltage |
| IP Rating | IP65 |
| Item Number | XW1E-LV411Q4M-R |
| Lamp Type | LED |
| Lamp Voltage | 24 VAC ; 24 VDC |
| Legend | Twist Arrows |
| Lens/Button Color | Red |
| Lens/Button Shape | Mushroom |
| Light Source | LED |
| Manufacturer | Idec |
| Manufacturer Part Number | XW1E-LV411Q4M-R |
| Max Voltage | 250 VAC, 250 VDC |
| Maximum Operating Tempe. | +55 ?C |
| Mechanical Life | 250000 (Min.) Operations |
| Minimum Operating Tempe. | -25 ?C |
| Mounting Hole Size | 22.3 mm |
| Mounting Size (mm) | 22 |
| Mounting Type | Panel Mount |
| N/C Contacts | 1 |
| N/O Contacts | 1 |
| Net Weight | 0.1906 lbs |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Nominal Mounting Size | 22 mm |
| Number of Poles | 1 |
| Operating Force | 32 N (Pushlock), 21 N (. |
| Operating Temperature | -25 to +55 ?C |
| Operation | Push-Pull;Push Lock-Twi. |
| Operator Size (mm) | 40 mm, 40 |
| Panel Cut Out | 22.3 mm |
| Product Series | XW |
| Reset Type | Push Lock - Twist Reset |
| Series | XW Series, XW |
| Shape | Mushroom |
| Size | 22 mm |
| Standards | CCC ; CE ; CSA C22.2 No. |
| Switch Function | Pull-to-Reset, Push-to-. |
| Temperature Operating R. | -25 to +55 ?C |
| Terminal Type | Screw |
| Termination | Screw |
| Type | Illuminated Pushbutton |
| Voltage | 250 VAC;250 VDC |
| Voltage Rating | 250 V |
| Voltage, Rated AC | 250 V |
