Lovejoy 68514476234

mpn68514476234
brandname: LoveJoy
manufacturername: LoveJoy

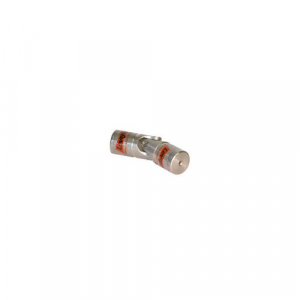

Lovejoy Size D11B Universal Joint, Solid Bore A and 1" Round Bore B, 3/8" x 3/16" External Keyway A and 1/4" x 1/8" Keyway B with Set Screw at 90 Degrees from Keyway, 1.75" Outer Diameter, 5.00" Overall Length, 1144 Carbon Steel, Inch

Lovejoy Size D11B Universal Joint, Solid Bore A and 1" Round Bore B, 3/8" x 3/16" External Keyway A and 1/4" x 1/8" Keyway B with Set Screw at 90 Degrees from Keyway, 1.75" Outer Diameter, 5.00" Overall Length, 1144 Carbon Steel, Inch

zoom

Brand: Lovejoy
PartNumber: 68514476234
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
Bore A & B	Solid & 1 in
Bore Depth (Dimension C)	1.380 in
Bore Type	Solid
Color	Metallic
Cubic inches	15.3125 in3
Keyway A & B (W x D)	3/8 External & 1/4 x 1/.
Material	Steel
Max. Angle Offset	25.00 ?
Max. Pin Height (Dimens.	2.500 in
Max. Speed	1750.00 rpm
Operating Temperature R.	-30 to 212 ?F
Outside Diameter	1.75 in
Overall Length	5.00 in
Set Screw Size	No Setscrew & 5/16-18
Size	D11B
Static Breaking Torque	10680.00 in-lb
Style	Bored
Type	Universal Joints - D Ty.
Weight	2.50 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	68514476234	329.7	1	In Stock		Lovejoy	2.5	329.7 @ 1
	heavydutydepot.com	68514476234	341.5	1	In Stock		Lovejoy		341.5 @ 1
