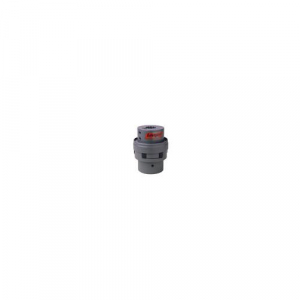

Lovejoy 76472 Size C276 Medium Duty Jaw Coupling Hub, Cast Iron, Inch, 2.625" Bore, 6.18" OD, No Keyway

Lovejoy 76472 Size C276 Medium Duty Jaw Coupling Hub, Cast Iron, Inch, 2.625" Bore, 6.18" OD, No Keywayzoom

Attributes

Key Value
# of Jaws3
Bore Size2 5/8 in
ColorGray/Metallic
CouplingC276
Coupling TypeJaw
Cubic inches300.57419 in3
Dimension CD6.530 in (165.86 mm)
Dimension CL0.120 in (3.05 mm)
Dimension G1.630 in (41.40 mm)
Dimension HD5.00 in (127.00 mm)
Dimension SL1.560 in (39.62 mm)
Elastomeric MemberSOX (NBR) Rubber
Hub Style3
Keyway Size (W x D)No Keyway
Length thru Bore3.120 in (79.25 mm)
MaterialCast Iron
Max. Bore (Dimensions I.2.875 in (73 mm)
Max. Speed4800.00 rpm
Min. Bore (Dimensions I.0.875 in (22.00 mm)
Moment of Inertia WR2188.000 lb-in2
Nominal Torque4716 in-lb
Outside Diameter6.180 in (156.97 mm)
Overall Length of Hub7.870 in (199.90 mm)
Rated HP at 1,200 rpm90 hp
Rated HP at 1,800 rpm135 hp
Rated HP at 100 rpm7.5 hp
Rated HP at 3,600 rpm270 hp
Weight16.50 lb
Weight (Complete Coupli.47.00 lb
Weight (Complete Coupli.36.00 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514476472331.61In StockLovejoy16.5331.6 @ 1
thumbzoomheavydutydepot.com68514476472354.71In StockLovejoy354.7 @ 1
