Maxim 288308

B009063AF2

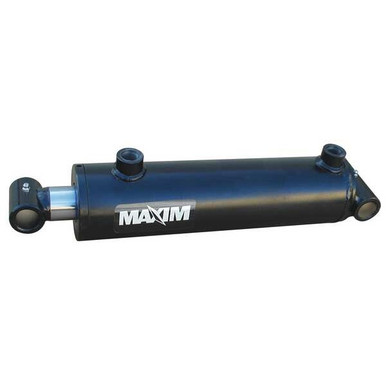

Maxim WT Welded Cylinder: 2 Bore x 6 Stroke - 1.5" Rod Diameter, 3000 PSI with SAE #6 Port Size, Retracted: 14 and Extended: 20, 1" Pin Dia, 288308

Maxim WT Welded Cylinder: 2 Bore x 6 Stroke - 1.5" Rod Diameter, 3000 PSI with SAE #6 Port Size, Retracted: 14 and Extended: 20, 1" Pin Dia, 288308zoom

Attributes

Key Value
Bore Dia.2 in, 2"
Bore Dia. (In.)2
BrandMaxim
Column Load9420 lb., 9420 lb
Current Stock19
Dimension A (In.)0.188
Dimension B (In.)2.756
Dimension C (In.)2.251
Dimension D (In.)2.649
Dimension E (In.)0.750
Duty RatingHeavy Duty
Extended Length20", 20 in
FinishBlack
International ShippingNo
ItemWelded Hydraulic Cylind.
Max. Pressure3000 psi, 3,000 psi
Mpn288-308
Pin Dia.1 in, 1"
Piston MaterialDuctile Iron
Port Size#6 SAE
Port Size (SAE)#6
Retracted Length14 in, 14"
Rod Dia.1-1/4", 1 1/4 in
Rod Dia. (In.)1-1/4
Rod SealPolypak
Rod Seal TypePolypak
Single Acting/Double Ac.Double Acting
SKUZO-G3243746
Stroke Length6", 6 in
SubCategoryHydraulics
Temp. Range-20 Degrees to 220 Deg.
Tie RodsHigh Tensile
TubesPrecision Honed Steel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3243746154.99127Maxim11.93154.99 @ 1
thumbzoomsimsupply.comZO-G3243746179.89119Maxim179.89 @ 1
grainger.caWWG6FDD9187.417625321In StockMAXIM11.93187.41762532 @ 1
thumbzoomsustainablesupply.comC1378297220.351In StockMaxim11.93220.35 @ 1
thumbzoomRaptor SuppliesAE8TAK269.06905351In StockMAXIM269.0690535 @ 1
