Molex / Waldom 15-91-2095

B07QQF83B9

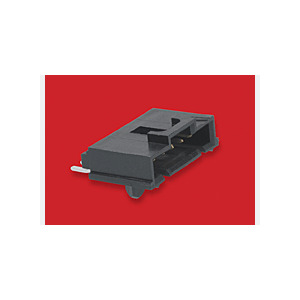

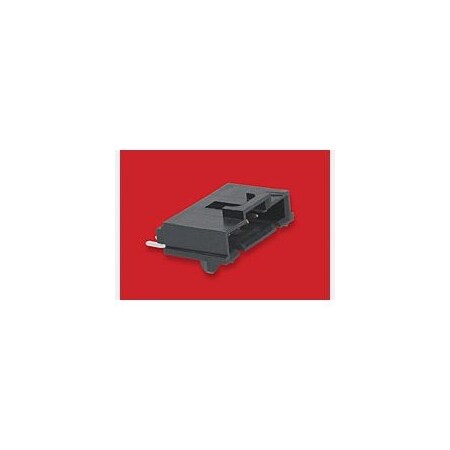

15-91-2095, Conn Shrouded Header HDR 9 POS 2.54mm Solder RA SMD SL Tube (10 Items)

15-91-2095, Conn Shrouded Header HDR 9 POS 2.54mm Solder RA SMD SL Tube (10 Items)zoom

Attributes

Key Value
Alternate Part No.538-15-91-2095
ApplicationsAutomotive, General Pur.
Base Product Number001591
BrandMolex
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Current Rating (Amps)-
DescriptionCONN HEADER SMD R/A 9PO.
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberWM1347-ND
Fastening TypeLatch Holder
FeaturesBoard Guide
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.215" (5.45mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMolex
Manufacturer Part No.15-91-2095
Manufacturer Product Nu.0015912095
Manufacturer Standard L.35 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting AngleRight
Mounting TypeSurface Mount, Right An.
Number of Positions9
Number of Positions Loa.All
Number of Rows1
Operating Temperature-
Overall Contact Length-
PackageTube
PackagingTube
Part # Aliases0015912095 70634-0043
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
Series70634, SL 70634
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination StyleSMD
TradenameSL
TypeShrouded
Voltage Rating250 V, -

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance Electronics15-91-20952.28147143MOLEX2.28147 @ 1
thumbzoomNewark01AH01783.63119MOLEX3.63 @ 1
Verical15-91-20953.73203300Molex3.73 @ 20
Onlinecomponents.com15-91-20953.7814935MOLEX / WALDOM3.78 @ 1
WaldomMOLEX 15-91-20953.81208395MOLEX3.81 @ 20
thumbzoomswatee.com15-91-20954.51200Molex4.5 @ 1
thumbzoomjensentools.com101523895.081In StockMolex5.08 @ 1
Mouser538-15-91-20957.471466Molex7.47 @ 1
thumbzoomDigi-Key5314548.3414876Molex8.34 @ 1
thumbzoomRadwell15-91-209512.060043MOLEX12.0 @ 600
thumbzoomZoroG2079564123.0143Molex123.0 @ 1
