Molex / Waldom 43045-1221

B07QQD8GYT

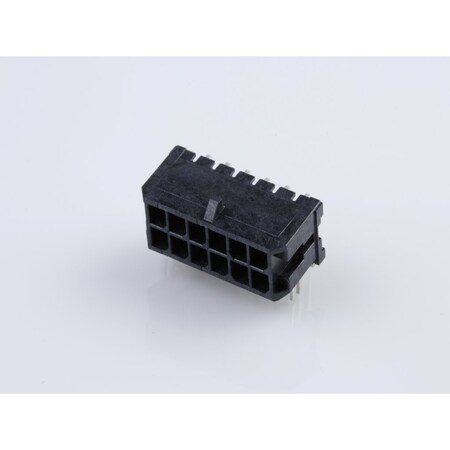

43045-1221, Conn Power HDR 12 POS 3mm Solder RA Thru-Hole 12 Terminal 1 Port Micro-Fit 3.0 Tray (25 Items)

43045-1221, Conn Power HDR 12 POS 3mm Solder RA Thru-Hole 12 Terminal 1 Port Micro-Fit 3.0 Tray (25 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.43045-1221
ApplicationsAutomotive, General Pur.
Base Product Number043045
CategoryConnectors, Interconnec.
ColorBlack
Color - ResinBlack
Connector ShapeSquare
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post0.125" (3.18mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating8.5 A
Current Rating (Amps)8A
DescriptionCONN HEADER R/A 12POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM2677-ND
Durability (mating cycl.30
Family NameMicro-Fit 3.0
Fastening TypeLocking Ramp
FeaturesBoard Lock
Flammability94V-0
Glow-Wire CapableYes
Ingress Protection-
Insulation ColorBlack
Insulation Height0.290" (7.37mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerMolex
Manufacturer Product Nu.0430451221
Manufacturer Standard L.11 Weeks
Mated Height10.06mm
Mated Stacking Heights-
Material - MetalBrass
Material - Plating Mati.Tin
Material - Plating Term.Tin
Material - ResinHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Cycles at Max. Pro.3
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Circuits12
Number of Contacts12
Number of Positions12
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
OrientationRight Angle
Overall Contact Length-
PackageTray
PCB LocatorYes
PCB RetentionYes
PCB Thickness - Recomme.1.60mm
Pitch3.00 mm (0.118")
Pitch - Mating0.118" (3.00mm)
Pitch - Mating Interface3.00mm
Plating MaterialTin
Plating min - Mating0.254?m
Polarized to PCBYes
Primary TypeSoft Shell
Process Temperature max.260
Product StatusActive
Representative StandardUL / TUV / CSA
Row Spacing - Mating0.118" (3.00mm)
SeriesMicro-Fit 3.0 43045, 43.
ShroudedFully
ShroudingShrouded - 4 Wall
Special FeaturesLow-Halogen
StyleBoard to Cable/Wire
Surface Mount Compatibl.Yes
Temperature Range - Ope.-40? to +105?C
TerminationSolder
Termination Interface: .Through Hole
TypeRight Angle Header
ULE29179
Voltage - Maximum600V
Voltage Rating600V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers161-93991.2192198Molex1.2192 @ 1
WaldomMOLEX 43045-12211.75352864MOLEX1.75 @ 35
Power and Signal Group04304512211.8272100854Molex1.8272 @ 1008
thumbzoomTMEMX-43045-12211.847554MOLEX1.84 @ 75
Heilind Electronics43045-12211.932972929MOLEX1.93297 @ 29
us.rs-online.com703714462.0554Molex Incorporated2.0 @ 5
thumbzoomNewark56H95812.97100854MOLEX2.97 @ 1008
thumbzoomMisumi USA43045-12213.75154Molex3.75 @ 1
thumbzoomDigi-Key16350283.7511709Molex3.75 @ 1
thumbzoomRadwell43045-12216.0154MOLEX6.0 @ 1
thumbzoomZoroG200415953131.25154Molex131.25 @ 1
