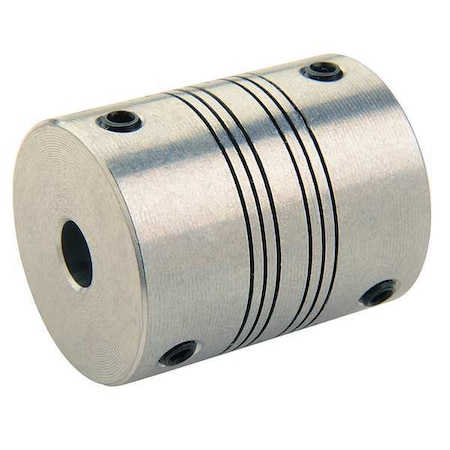

Ruland PSMR22-6-6-A Set Screw Beam Coupling, Polished Aluminum, Metric, 6mm Bore A Diameter, 6mm Bore B Diameter, 22.2mm OD, 27.0mm Length, 2.03 Nm Nominal Torque

Ruland PSMR22-6-6-A Set Screw Beam Coupling, Polished Aluminum, Metric, 6mm Bore A Diameter, 6mm Bore B Diameter, 22.2mm OD, 27.0mm Length, 2.03 Nm Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3.0?
Axial Motion0.13 mm
B1 Max Shaft Penetration12.7 mm
B2 Max Shaft Penetration12.7 mm
Bore (B1)6 mm
bore - side 1:6 mm
bore - side 2:6 mm
Bore Dia.6mm x 6mm
Bore Tolerance+0.025 mm / -0.000 mm
bore tolerance:+.025 / -.000 mm
Catalog PageN/A
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)1.125 in
Clearance Dia. (mm)28.6
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.1.02 Nm
Dynamic Torque Reversing0.51 Nm
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM4
Full Bearing Support Re.Yes
harmonization code:8483608000
Hex Wrench Size2.0 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Item?30VC71
Length (L)27.0 mm
Length through Bore11.43 mm
Length through Bore (In.0.45
Length through Bore (mm)11.43
ManufacturerRuland Manufacturing
MaterialAluminum
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
material:7075 Aluminum
Max. Angular Misalignme.3 Degrees, 3 ?
Max. Axial Misalignment.+/-0.005
Max. Bore (mm)6 mm
Max. Parallel Misalignm.0.008 in
Max. RPM6,000 RPM
Max. Temp.225 ?F, 225 Degrees F
Max. Temp. Range (F)225 Degrees
maximum angular misalig.3
maximum parallel misali.0.20 mm
maximum rpm:6000 rpm
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Mfr. Model?PSMR22-6-6-A
Min. Bore (mm)6
Moment of Inertia1.639 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
number of beams:Four Beam
Number of Screws4 ea
operating temperature:-40 to +225
Outer Diameter (OD)22.2 mm
Outside Dia.22.2 mm
Outside Dia. (In.)0.875
Outside Dia. (mm)22.2 mm
outside diameter:22.2 mm
Overall Length27 mm
Overall Length (In.)1.063
Overall Length (mm)27
overall length:27 mm
PackageBag
Parallel Misalignment0.20 mm
Product StatusActive
Rated Torque18 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
screw clamp type:Set Screw Type
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM4
Screw Size (mm)M4
screw thread size:M4
Screw TypeSet Screw
Seating Torque1.76 Nm
Series-
Setscrew Location2 (120?), 2 (120 Degree.
Shaft Locking Type - Co.1 Piece Set Screw
SizePSMR22
Small Bore (B2)6 mm
Specifications0.875" (22.23mm) Outer .
Static Torque2.03 Nm
Style4-Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torque (In.-Lbs.)18
Torsional Stiffness1.88 Deg/Nm
Torsional Stiffness (De.0.212
torsional stiffness:1.88 N-m/deg
TypeBeam Coupling
UNSPC31163003
UNSPSC31163003
UPC634529033074
Weight (lbs)0.055300
weight:0.091 lb
Zero-Backlash?Yes
