Samtec SFM-105-03-S-D

mpnSFM-105-03-S-D
brandname: SAMTEC
manufacturername: SAMTEC

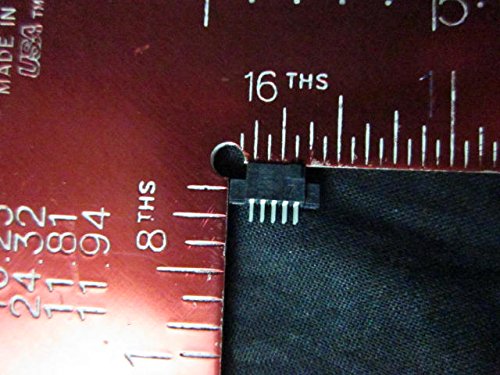

Samtec SFM-105-03-S-D Connector strip 2x5pin PKG 50

Samtec SFM-105-03-S-D Connector strip 2x5pin PKG 50

zoom

Brand: Samtec
PartNumber: SFM-105-03-S-D
PackageQuantity: 1

Attributes

Key	Value
Applications	-
Base Product Number	SFM-105
Category	Connectors, Interconnec.
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	-
Contact Length - Post	0.075" (1.91mm)
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2A per Contact
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Insulation Material	Liquid Crystal Polymer .
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm,.
Material Flammability R.	UL94 V-0
Mfr	Samtec Inc.
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 125?C
Package	Tube
Part Status	Active
Pitch - Mating	0.050" (1.27mm)
Row Spacing - Mating	0.050" (1.27mm)
Series	Tiger Eye? SFM
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	250VAC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Samtec	SFM-105-03-S-D	3.0	1	5268		Samtec		3.0 @ 50
	Radwell	SFM-105-03-S-D	4.0	1	50		SAMTEC		4.0 @ 50
	Digi-Key	6693171	4.65	969	1004		Samtec Inc.		3.90281 @ 57
	Newark	97P5132	5.73	1	50		SAMTEC		5.73 @ 50
