Tritan UCF213-40

B08X3SG8L7

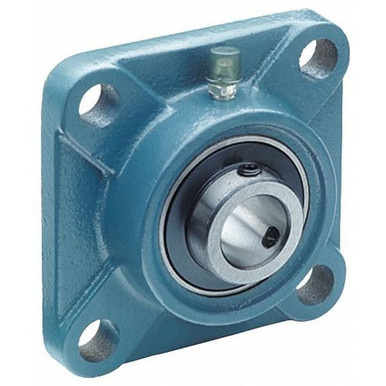

UCF213-40 - TRITAN - Factory New!

UCF213-40 - TRITAN - Factory New!zoom

Attributes

Key Value
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Steel, Alloy Steel
Bearing Insert TypeBall, Radial Ball
Bearing LubricationShell Alvania RL2 or NL.
Bearing Material Grade52100
Bolt Hole Center-to-Cen.5.8661"
Bolt Size5/8 in
Bore Dia.2.5"
Bore Diameter2 1/2 in
Bore TypeCylindrical
BrandTritan
ClosureDouble Sealed
ColorBlue
Current Stock22
Dynamic Load Capacity13668 Lbf, 12,926.51 lbf
FeaturesAnti-Rotation Device, C.
FinishPainted
Flange Thickness0.859 in
Housing MaterialCast Iron
Housing Material FinishPainted
Housing TypeSquare
Included BearingUC213-40
International ShippingNo
Item4-Bolt Flange Bearing, .
Lead TimeExpected to ship in 1-2.
Locking TypeSet Screw
Lubricant MaterialNLGI #2 Equivalent
Lubrication OpeningsOne Zirc Fitting
Maximum Temperature250 Degrees F
Minimum Temperature-40 Degrees F
Mount Hole Center-to-Ce.5 55/64 in, 5.859 in
Mount Hole Center-to-Ce.5 55/64 in, 5.859 in
Mount Hole Size3/4 in
Mounting Bolt Size5/8 in
MpnUCF213-40
Number of Mount Holes4
Overall Height7.406 in, 69.7 mm
Overall Length7.406 in, 187 mm
Overall Width187 mm, 2.75 in
Rolling Element Rows1
Seal MaterialRubber
SeriesUCF
Shaft Locking TypeSet Screw, Set Screws
SKUZO-G9446997
StandardsISO, AFBMA, AFBMA, ISO
Static Load Capacity10116 Lbf
Static Radial Load Capa.8,992.36 lbf
SubCategoryPower Transmission
System of MeasurementInch
Temp. Range-4 to +248? F
UPC888569052957

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG944699792.55142Tritan10.592.55 @ 1
thumbzoomsimsupply.comZO-G9446997109.63122Tritan109.63 @ 1
thumbzoomNational Supply Network66500430126.291In StockTritan126.29 @ 1
thumbzoomGlobal IndustrialWBB1873361163.881In StockTritan163.88 @ 1
grainger.caWWG36UY47176.501503081In StockTRITAN10.5176.50150308 @ 1
thumbzoomRaptor SuppliesAH7JXW270.20875051In StockTRITAN270.2087505 @ 1
