- mpn9421 0601000
- brandname: Belden
- manufacturername: Belden

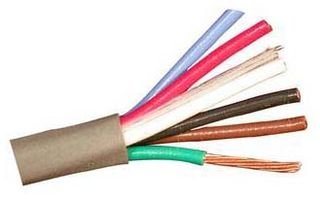

9421 0601000?-?Multiconductor Unshielded Cable, Audio Control, Chrome, 8 Conductor, 22 AWG, 1000 ft, 304.8 m
- Brand: Belden
- PartNumber: 9421 0601000
- PackageQuantity: 1
- Manufacturer: BELDEN
- Label: BELDEN
Attributes
| Key | Value |
|---|
| Application | For computers, communic. |
| Base Product Number | 9421 |
| Cable external diameter | 5.82mm |
| Cable Type | Multi-Conductor, Contro. |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 22 AWG |
| Conductor Strand | 7/30 |
| Configuration | Conductors |
| Conform to the norm | UL 1685 |
| Core diameter | 22AWG |
| Core structure | stranded |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Unknown |
| CPR standard | E |
| Description | CABLE 8COND 22AWG CHROM. |
| Detailed Description | 8 Conductor Multi-Condu. |
| Digi-Key Part Number | BEL5717-1000-ND |
| ECCN | EAR99 |
| Features | - |
| Information | The UL Label and Mark o. |
| Insulation colour | chrome |
| Insulation Material | PVC, Polyvinyl Chloride. |
| Insulation Thickness | 0.010 in. |
| Jacket (Insulation) Dia. | 0.229" (5.82mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0320" (0.813mm) |
| Jacket Color | chrome |
| Jacket Material | PVC, Polyvinyl Chloride. |
| Jacket Thickness | 0.032 in. |
| Kind of core | Cu, |
| Length | 1000.0' (304.8m), 1000 . |
| Manufacturer | BELDEN, Belden Inc. |
| Manufacturer Product Nu. | 9421 0601000 |
| Manufacturer Standard L. | 5 Weeks |
| Maximum Operating Tempe. | +80 ?C |
| Mfr | Belden Inc. |
| No. of Conductors | 8 |
| Number of Conductors | 8 |
| Number of cores | 8 |
| Operating Temperature | -20?C ~ 80?C |
| Operating temperature | -20...80?C |
| Outer Diameter | 0.229 in. |
| Package | Spool |
| Package contents | 305m |
| Packaging | Coil |
| Product Header | Unshielded Non-Plenum M. |
| Product Status | Active |
| Rated voltage | 300V |
| Ratings | UL Style 2576 |
| Series | 9421 Series, Classics |
| Shield Coverage | - |
| Shield Material | - |
| Shield structure | unshielded |
| Shield Type | - |
| Standards | UL AWM Style 2576 ; NEC. |
| Stranding | 7x30 |
| Temperature, Rating | -20 to 80 C |
| Type | Audio Control Cable |
| Type of wire | control cable |
| UNSPSC | 26121600 |
| Usage | Audio, Control, Instrum. |
| Voltage Rating | 150 V |
| Wire Gauge | 22 AWG |
| Wire insulation material | PVC |
| Wire Size | 22 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | turtle.com | BDN 9421 0601000 | 1.89 | 1 | 52 | | Belden | | 1.89 @ 1 |
 | alldataresource.com | B9421-1000 | 2.95 | 1 | 33 | | Belden | | 2.95 @ 1 |
| kirbyrisk.com | 1847365 | 4.27713 | 1000 | 33 | | Belden | | 4.27713 @ 1000 |
| TME | 9421.0601000 | 6.02 | 5 | 33 | | BELDEN | | 6.02 @ 5 |
 | Zoro | G1151465 | 1405.08 | 1 | 52 | 30 | Belden | | 1405.08 @ 1 |
 | Digi-Key | 8131181 | 2308.56 | 1 | 1 | | Belden Inc. | | 2308.56 @ 1 |
| Graybar | 88030741 | 2461.8496 | 1 | 33 | | Belden | | 2461.8496 @ 1 |
| us.rs-online.com | 70005061 | 2783.38 | 1 | 3 | | Belden | | 2783.38 @ 1 |
 | Newark | 15B3854 | 2865.6 | 1 | In Stock | | BELDEN | | 2865.6 @ 1 |
