- mpn26S30LR
- brandname: Dodge
- manufacturername: Dodge

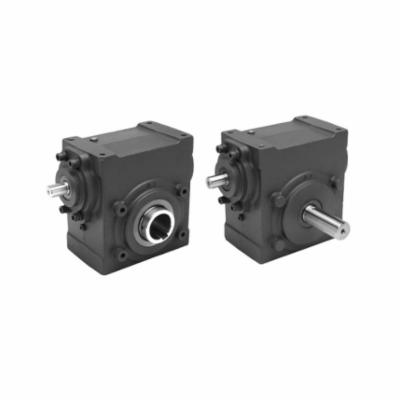

DODGE 26S30LR 26S30LR TIGEAR-2 REDUCER
- Brand: Dodge
- PartNumber: 26S30LR
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.8700 in, 72.898 mm |
| Case size | 26 |
| Center distance (in) | 2.6 in, Center distance. |
| Center to end of shaft . | 5.6300 in, 143.002 mm |
| Finish | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 2.0000 hp, 1.491 kW |
| Horsepower rating output | 1.5800 hp, 1.178 kW |
| Housing material | Cast iron |
| Input | 0.875 in Input Shaft |
| Input HP | 2 |
| Input style | Separate, Input style:S. |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 58 rpm |
| Mounting bolt pattern l. | 6.3800 in, 162.052 mm |
| Mounting bolt pattern w. | 3.3800 in, 85.852 mm |
| Nominal ratio | 30 |
| Output | Double solid output sha. |
| Output bore/shaft diame. | 1.25 in |
| Output horse power | 1.58 |
| Output shaft | Double (solid) |
| Output style | Left, right |
| Overhung load | 1610 lbf, 7161.637 N |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 1705 in/lb, 1705.0 in/lb |
| Ratio | 30 to 1 |
| Seal type | Single-lip contact |
| Shaft dia input | 0.8750 in |
| Shaft diameter output | 1.1250 in, 28.575 mm |
| Shaft length input | 1.1700 in, 29.718 mm |
| Shaft length output | 2.6700 in, 67.818 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 2.7900 hp, 2.081 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 26S30LR | 1032.12 | 1 | In Stock | 10 | Dodge | | 1032.12 @ 1 |
 | MRO Supply | 151750 | 1169.57 | 1 | In Stock | | Dodge | | 1169.57 @ 1 |
 | Purvis | 26S30LR | 1266.36 | 1 | In Stock | | Dodge | | 1266.36 @ 1 |
| factorysupplyoutlet.com | GD85GO | 1588.54 | 1 | In Stock | 25 | DODGE | | 1588.54 @ 1 |
| motionindustries.com | 02455338 | 1598.78 | 1 | In Stock | | Dodge | | 1598.78 @ 1 |
