- mpnSVX006A1-4A1B1
- brandname: EATON
- manufacturername: EATON

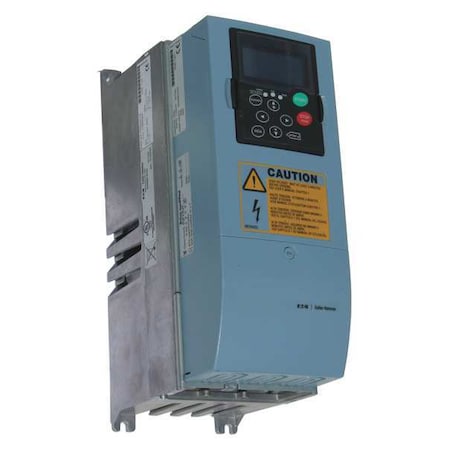

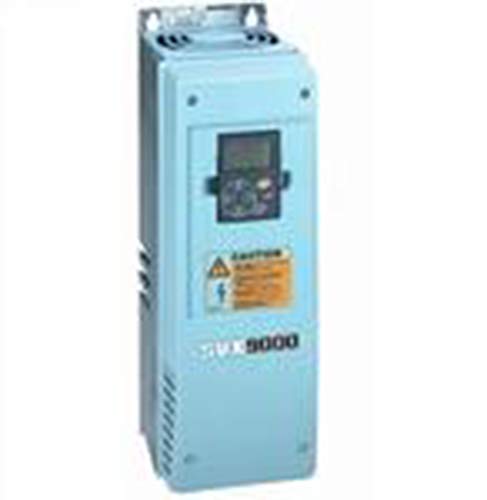

Variable Frequency Drive, LED, 5.6 in. W
- Brand: Eaton
- PartNumber: SVX006A1-4A1B1
- PackageQuantity: 1
- Binding: Kitchen
- Manufacturer: Eaton
- Label: Eaton
Attributes
| Key | Value |
|---|
| Accepts Input Control S. | Yes |
| Adjustable Acceleration. | 0 to 3000 sec |
| Adjustable Deceleration. | 0 to 3000 sec |
| Ambient Temperature | -10 to 50 C |
| Application | Commercial / Institutio. |
| Approvals | IEC 61800-2 ; EN 61800-. |
| Brake Chopper Included | Yes |
| Brand | Eaton |
| Catalog Number | SVX006A1-4A1B1 |
| Color | White |
| Color (merch) | White |
| Control Method | Frequency Control (V/f). |
| Control Type | Keypad, Remote |
| Country of Origin | Finland |
| Country of Origin (subj. | Finland |
| Current Rating | 9 A |
| Depth | 8.4 in |
| Digital Readout | Yes |
| Dimensions | 12.9 x 5.0 x 7.5 |
| Display Type | LED |
| Displays | LED Keypad |
| Driver Type | Adjustable Frequency |
| Dynamic Braking | No |
| Enclosure | Open |
| Enclosure Rating | NEMA 1/IP21, NEMA 1 |
| Ethernet Port Included | No |
| For Use With | 3-Phase Inverter Duty M. |
| Frequency | 50/60 Hz |
| Function | Motor Control |
| Green Environmental Att. | Product Contributes To . |
| Height | 12 Inch, 16.5 in |
| Horsepower | 7.500 |
| Horsepower Rating | 7.5 hp |
| Input Frequency | 50/60 Hz |
| Input Phase AC | Three |
| Input Type | Analog, Digital |
| Input Voltage | 480V AC |
| Input Voltage Range | 380V AC to 5000V AC |
| IP/NEMA Rating | NEMA 1 |
| Item | Variable Frequency Drive |
| Item Type | Adjustable frequency dr. |
| Key Pad Lockout | Yes |
| Length | 15.75 in |
| Made in USA | No |
| Manufacturer | Eaton Cutler Hammer, Ea. |
| Max. HP | 7.5 hp |
| Max. Output Amps | 9 A |
| Maximum Output Current | 9 A |
| Maximum Output Power | 5 hp |
| Mounting Type | Panel Mount |
| Number of Inputs | (6) Digital Inputs, (2). |
| Number of Outputs | (1) Output - Analog + (. |
| Operating Temperature | 14 to 122 Degrees F |
| Output Frequency | 0 to 320 Hz |
| Output Frequency Range | 0 to 320 Hz |
| Output Phase AC | Three |
| Output Type | Analog |
| Output Voltage | 500V AC |
| Output Voltage Range | 500V AC |
| Overall Depth | 15 3/4 in, 7.48" (190mm) |
| Overall Dimensions | 7.48 x 12.874 x 5.039" . |
| Overall Height | 12 in |
| Overall Length | 12.874" (327mm) |
| Overall Width | 5.039" (128mm), 9 3/4 in |
| Part Number | SVX006A1-4A1B1 |
| Phase | 3, 3 Phase |
| Power Rating | 7.5 kW |
| Primary Type | AC Drive |
| Protection | Earth fault protection,. |
| Series | SVX Series, SVX9000 Ser. |
| Special Features | Control Panel ; Interna. |
| Standard | UL 508C,EN 61800-3 Leve. |
| Standards | UL 508C, IEC 61800-2, E. |
| Start/Stop Control | Programmable |
| Starting Torque | 250% |
| Style | Industrial High Perform. |
| Supply Voltage | 480 VAC |
| Torque @ 1 Hz | 120% |
| Torque Application | Constant Torque, Variab. |
| Type | Variable Frequency Driv. |
| UPC | 782116062270 |
| UPC Code | 782116062270 |
| Voltage Rating | 480 V |
| Volts AC | 480 |
| Weight | 13.98 Pound |
| Width | 5.6 in, 98 in |
| With Bypass / No Bypass | No Bypass |
| With Line Contactor / N. | No Line Contactor |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Grainger | 32WN90 | 1577.0 | 1 | 6 | 0 | EATON | | 1577.0 @ 1 |
 | Zoro | G8821766 | 1589.0 | 1 | In Stock | 13 | Eaton | 14.1 | 1589.0 @ 1 |
| AmazonTP | B00PWYFYGE | 1623.2 | 1 | In Stock | 2 | EATON | | 1623.2 @ 1 |
 | sustainablesupply.com | C1489517 | 1780.05 | 1 | In Stock | | Eaton | 14.1 | 1780.05 @ 1 |
 | motorsandcontrol.com | SVX006A1-4A1B1 | 1875.06 | 1 | In Stock | | Eaton Cutler Hammer | | 1875.06 @ 1 |
 | Platt.com | 0581890 | 2014.57 | 1 | In Stock | | Eaton | | 2014.57 @ 1 |
 | Walker Industrial | SVX006A1-4A1B1 | 2096.84 | 1 | In Stock | | Eaton Cutler-Hammer | | 2096.84 @ 1 |
| us.rs-online.com | 70058396 | 3262.72 | 1 | 1 | | Eaton - Cutler Hammer | 13.98 | 3262.72 @ 1 |
 | cappusa.com | 3599757 | 3294.69 | 1 | In Stock | | Eaton | | 3294.69 @ 1 |
 | crescentelectric.com | 191708 | 3441.88 | 1 | In Stock | | Eaton | | 3441.88 @ 1 |
