IAR HBL24CM13

mpnHBL24CM13
brandname: Hubbell
manufacturername: Hubbell

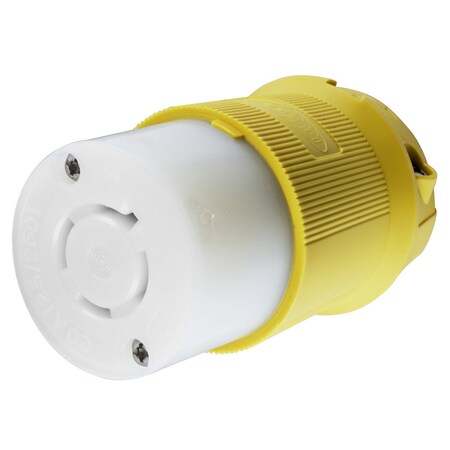

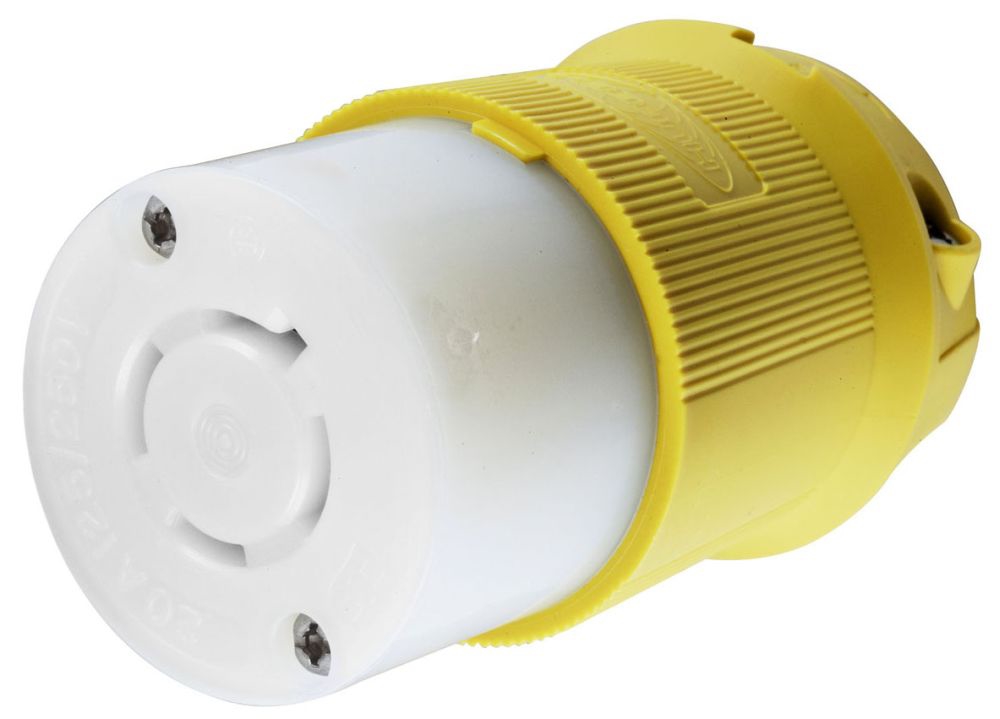

HUBBELL HBL24CM13 20A 125/250V 3P 4W L14-20R TWIST LOCK INSULGRIP CORD BODY

HUBBELL HBL24CM13 20A 125/250V 3P 4W L14-20R TWIST LOCK INSULGRIP CORD BODY

zoom

Brand: IAR
PartNumber: HBL24CM13
PackageQuantity: 1

Attributes

Key	Value
Amperage	20 A
Amps	20A
Approvals	CSA, UL
Body Material	Natural White Nylon
Body Type	Straight
Color	Yellow
Color - Plugs and Recep.	Yellow
Connectivity	Pressure Terminal Screws
Cord dia	35 in-1.15 in
Cord Dia. Range	.350"-1.150" (9-29)
Cord range	0.350 in-1.150 in (9-29)
Corrosion Resistant	Yes
Current / amperage rati.	20 A
Current rating	20 A
Current Rating	20 A
Dielectric Strength	Withstands 2,000V minim.
Dielectric strength	Withstands 2,000V minim.
Dimensions	2.33 in x 2.33 in x 3.8.
Environmental conditions	Indoor Dry Unless Prote.
Family Series	Hubbell Plugs & Recepta.
Flame Resistant	HB or better per UL94 o.
Gross Weight	0.4 lbs
Height	3.86 in
Insulation	Insulated Body
IP Rating	IP20
Isolated Ground	No
Item - Plugs and Recept.	Connector Body
Item Number	HBL24CM13
Length	2.33 in
Manufacturer	Hubbell
Manufacturer Part Number	HBL24CM13
Material	.031" (.8) Brass, Nylon
Material - mounting har.	Cord Mounted
Max HP	2 (1)
NEMA Configuration	L14-20R
Nema Rating	L14-20R
Net Weight	0.4 lbs
Number of poles	3-Pole
Number of Poles	3, 3-Pole
Number of wires	4-Wire
Number of Wires	4
Operating temperature	Maximum continuous 75C .
Package Quantity	1
Special Features	Terminals identified in.
Standards	Round portable service .
Temp. Rise	Max 30C temperature ris.
Temperature rating	-40 C w/o impact, -25 w.
Type	Connector Body
Voltage	125/250 VAC, 125/250V AC
Voltage rating descript.	125/250 VAC
Watertight	No
Weight	0.4
Width (in)	2.33
Wire size	#16 AWG to #8 AWG
Wiring Style	Chem/Marine

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	HBL24CM13	42.05	1	3		Hubbell		42.05 @ 1
	Zoro	G800702088	54.95	1	In Stock	32	Hubbell Wiring Device-Kellems	0.4	54.95 @ 1
	MRO Supply	1020920	58.86	1	In Stock		Hubbell Wiring		58.86 @ 1
	gordonelectricsupply.com	HBL24CM13	59.74	1	In Stock		HUBBELL		59.74 @ 1
	Galco	HBL24CM13-HBBL	60.59	1	In Stock		Hubbell	0.4	60.59 @ 1
	us.rs-online.com	71987538	64.32	1	In Stock		Hubbell Wiring Device-Kellems		64.32 @ 1
	Newark	14C4979	81.17	1	In Stock		HUBBELL WIRING DEVICES		81.17 @ 1
