Lovejoy 68514476237

B004S2T16U

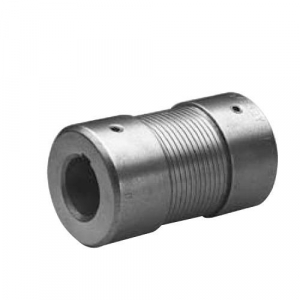

Lovejoy U-125S Shaft-to-Shaft Uniflex Coupling , 28 mm Bore A, 1-1/8" Bore B, 2.17" OD, 3.75" Overall Length, 755 in-lbs Max Torque, 6000 RPM Maximum, with Keyways

Lovejoy U-125S Shaft-to-Shaft Uniflex Coupling , 28 mm Bore A, 1-1/8" Bore B, 2.17" OD, 3.75" Overall Length, 755 in-lbs Max Torque, 6000 RPM Maximum, with Keywayszoom

Attributes

Key Value
# of Set Screws Require.1
Axial Misalignment (&De.0.020 in (0.51 mm)
Bore Size28 mm x 1-1/8 in mm
Bore TypeFinished Bore
ColorGray/Metallic
Cubic in ches17.65838 in3
Dimension HD2.170 in (55.12 mm)
Hub SizeU125S
Hub StyleShort
Keyway Size8 x 3.3 mm & 1/4 x 1/7 .
Length thru Bore1.280 in (32.51 mm)
MaterialSteel
Max. Bore (Dimensions I.1.260 in (32.00 mm)
Max. Parallel Misalignm.0.030 in (0.76 mm)
Max. Speed6000 rpm
Max. Torque755 in-lb
Min. Bore (Dimensions I.0.630 in (16.00 mm)
Operating Temperature R.-40 to 250 ?F
Overall Length3.75 in (95.25 mm)
Pin Location (Dimension.0.62 in
Rated HP at 100 rpm1.21 hp
Set Screw Thread Size (.M10 x 10 & 3/8-16
TypeShaft-to-Shaft
Weight2.75 lb
Wind-Up Angle at Max. T.3.00 ?
Wind-Up Angle at Nomina.1.22 ?

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514476237585.01In StockLovejoy2.75585.0 @ 1
thumbzoomheavydutydepot.com68514476237585.01In StockLovejoy585.0 @ 1
