OSG 0136601

mpn0136601
brandname: Osg
manufacturername: Osg

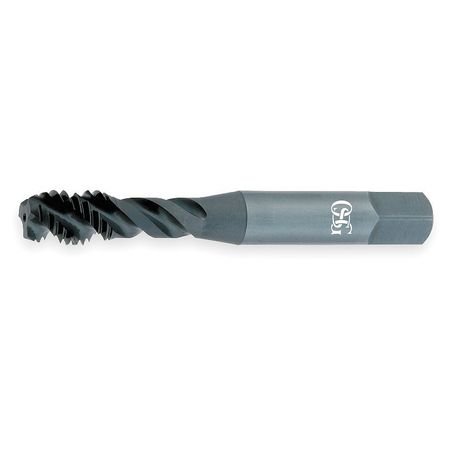

Spiral Flute Tap, Bot, HSSE, B/O, 3, 10-24

Spiral Flute Tap, Bot, HSSE, B/O, 3, 10-24

zoom

Brand: OSG
PartNumber: 0136601
Model: 0136601
PackageQuantity: 1
Binding: Misc.
Manufacturer: OSG Tap And Die
Label: OSG Tap And Die

Attributes

Key	Value
# of flutes	3
75% Thread Drill Size	#25
brand	OSG
chamfer	1.5P - 2P
Coolant Fed	Non-Coolant Through
coolant thru	No
Country of Origin (subj.	Brazil
Cutting Direction - Mac.	Right Hand
Drill Bit Size	0.1467 in, 0.1494 in, 0.
Extended Neck	Yes
Helix Angle	45 Degrees
Item	Spiral Flute Tap
list number	303
List Number	303
Measurement System	Pipe
Number of Flutes	3
Number of Pieces	1
Overall Length	2-3/8"
overall length inch	2.370
Pitch Diameter Limit	H2
Primary Material Applic.	Stainless Steel, Steel
Primary Material Applic.	M, P1
Series	303
Shank Dia.	0.194"
Shank Length	1 1/2 in
Shank Type - Machining	Straight
square length	0.252"
Square Size	0.1520 in
Standards	ANSI
sti thread	No
Tap Chamfer	Bottoming
Tap Dimension Type	Inch
Tap Finish	Oxide
Tap Grouping	Tap
Tap Material	High Speed Steel
Tap Shank Standard	ANSI
Tap Size	#10
Tap Style	Spiral Flute
Tap Thread Size	#10-24
Tap Thread Type	UNC
Thread Direction	Right Hand
thread length	0.327"
Thread Length	7/8"
Thread Limit	H2
Thread Size	#10-24
Thread Standard	UNC
Threads per Inch	24 TPI
unspsc	23241600

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G5723514	21.19	1	In Stock		Osg	0.02	21.19 @ 1
	Grainger	4HHP6	32.8	1	In Stock	7	OSG		32.8 @ 1
	tmttoolbox.com	0136601	65.31	1	In Stock		osg		65.31 @ 1
