TE Raychem 628395-000

B07NQSRGLQ

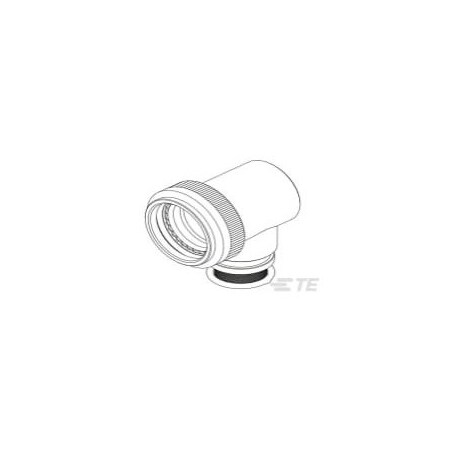

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Adapter Angle90
Adapter Entry Size8
Adapter Plating MaterialCadmium (AMS-QQ-P-416 T.
Base Product NumberTXR21AB90
Cable Diameter Range.25 ? .4 in
Cable Entry Diameter.01 ? .5 in
Cable Exit90?
Cable Opening-
CategoryConnectors, Interconnec.
ColorOlive Drab
Connector Detail Specif.MS3126, MS3128, MS3120,.
Connector General Speci.MIL-DTL-26482 Series 1/.
Connector Shell Size12
DescriptionCONN BACKSH ADPT SZ12 1.
Detailed DescriptionOlive Drab Connector Ba.
Diameter - Outside0.970" (24.65mm)
Digi-Key Part NumberTXR21AB90-1208BI-ND
FeaturesTinel Lock
For Use With/Related Pr.MIL-DTL-26482 Series I .
Includes6 pcs - 1 Backshell, 1 .
Ingress Protection-
ManufacturerTE Connectivity Raychem.
Manufacturer Product Nu.TXR21AB90-1208BI
Manufacturer Standard L.26 Weeks
MaterialAluminum Alloy, Aluminum
Material Flammability R.-
MfrTE Connectivity Raychem.
Operating Temperature R.-65 ? 175 ?C
Overbraid TerminationTinel-Lock Ring
PackageBulk
Package Quantity1
PlatingCadmium
Pluggable I/O Accessory.Tinel-Lock Adapter
Product StatusActive
Salt Spray Resistance500 Hr
SeriesTXR
Shell Size - Insert12
ShieldingShielded
StyleTinel-Lock Adapter
TE Adapter CodeIn Stock
Termination Device Incl.TR08BI
Termination Device TypeSide-Entry Tinel-Lock R.
Thread Size11/16-24 UNEF
TypeBackshell, Heat Shrink .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key2395241151.411225In StockTE Connectivity Raychem Cable Protection151.4112 @ 25
WaldomTE CONNECTIVITY RAYCHEM 628395-000157.61252TE CONNECTIVITY / RAYCHEM157.61 @ 25
Newark46AJ3063218.512RAYCHEM - TE CONNECTIVITY218.5 @ 1
thumbzoomZoroG700959001224.991In StockRaychem224.99 @ 1
