INDUSTRIAL MRO knox06004229-SDN5-24-100P

B07QC95TX1

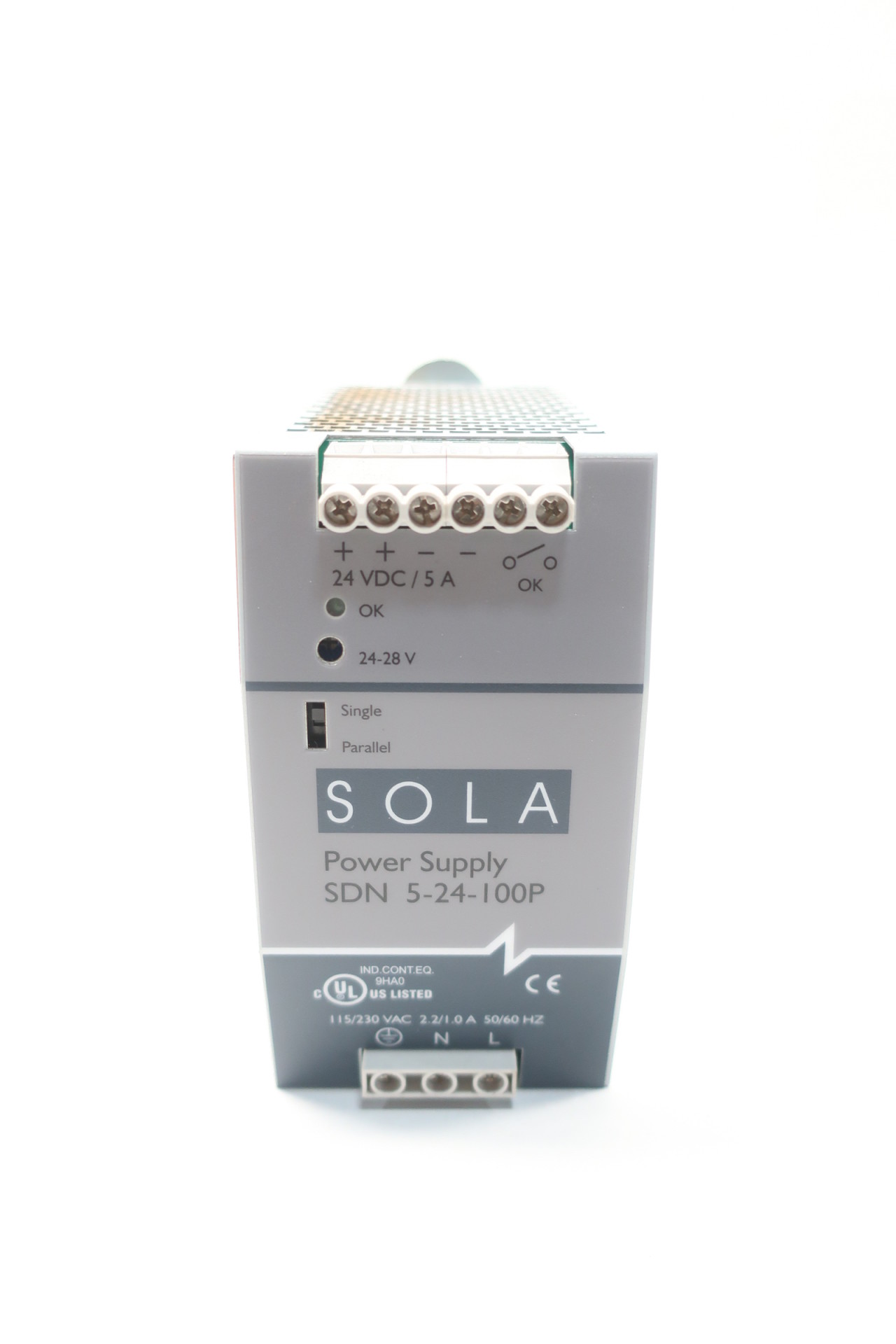

INDUSTRIAL MRO SDN5-24-100P 115/230V 5A NSMP-OEM

INDUSTRIAL MRO SDN5-24-100P 115/230V 5A NSMP-OEMzoom

Attributes

Key Value
AC Voltage - Input85 ~ 132 VAC, 176 ~ 264.
Alternate Part No.663-SDN5-24-100P
Amps5
ApplicationIndustrial Machine Cont.
ApplicationsHazardous Locations, In.
Approval AgencyCE, cULus, cURus
Base Product NumberSDN5
BrandSolaHD, Sola / Hevi-Duty
Cable Size16 - 10 AWG Solid
Case MaterialMetal Case
Catalog NumberSDN5-24-100P
CategoryPower Supplies - Extern.
ConfigurationEnclosed
Country of OriginTaiwan, Province Of Chi.
Current - Output (Max)5A
Current Stock197
DC Voltage - Input (Max)375V
DC Voltage - Input (Min)210V
Depth4.55 in
DescriptionAC/DC DIN RAIL SUPPLY 2.
Digi-Key Part Number2106-SDN5-24-100P-ND
Dimensions65 mm L x 116 mm W
Efficiency88%
EnclosureClass 1 Zone 2, IP20
Environmental Conditions90 RH Humidity Range
FeaturesAdjustable Output, IP20.
Frequency47-63 Hz
Frequency Rating47 - 63
Height4.88 in, 4.88, 4.88" (1.
Hertz47-63 Hz
Hold Up TimeGreater than 100 msec
Hz47 to 63 Hz
In-stock2300
In. Voltage85-132/176-264
Input TypeAC or DC, 1-Phase / Sin.
Input Voltage100 VAC ; 110 VAC ; 115.
Input Voltage Range115-230 Vac, 90-375 Vdc.
International ShippingNo
IP Rating20
ItemSDN Series Power Supply
Item TypeSDN-P DIN Rail Series
Lead TimeExpected to ship in 1-2.
Length4.55
Made in USANo
ManufacturerSolaHD, Sola/Hevi-Duty
Manufacturer Part No.SDN5-24-100P
Manufacturer Product Nu.SDN5-24-100P
Manufacturer Standard L.12 Weeks
MaterialMetal Housing
Maximum Operating Tempe.60 C
MfrSolaHD
Minimum Load Required-
Minimum Operating Tempe.-10 C
MountingDIN Rail/Chassis, DIN T.
Mounting TypeDIN Rail Mount, DIN Rail
MpnSDN524100P
NEMA Rating1
Number of Outputs1
Number of PhasesSingle
Operating Temp. Range-10 Degrees to 60 Degr.
Operating Temperature-10?C ~ 70?C (With Dera.
OperationPFC
Out. Voltage24 VDC
Output Amps5 A
Output Current5 A
Output Current (Channel.5 A
Output Current-Channel 15 A
Output NoiseLess than 50 mV
Output Power60-240 W, 120 W
Output Power Rating120 W
Output Voltage24V DC, 24 VDC
Output Voltage Range12, 24, 48 Vdc
Output Voltage-Channel 124 V
PackageBulk
Phase1
Phase - Electrical1
Power (Watts)120W
Power Rating120 W
Primary TypeAC-DC
ProductSwitching Supplies
Product CategoriesDC DC Non-Isolated - Li.
Product CategoryDIN Rail Power Supplies
Product HeaderSDN-P Series DIN Rail P.
Product StatusActive
RoHs StatusRohs
SeriesSDN-C Series, SDN, SDN-P
Size / Dimension4.55" L x 2.56" W x 4.8.
SKUZO-G1080904
Special FeaturesPower Factor Correction.
StandardUL (CANADA AND US), UL .
StandardscUL us E61379, cURus E1.
Status IndicatorGreen LED
Status Indicator : Visu.Green LED, DC OK
StyleSwitching
SubCategoryElectrical
TypeIndustrial
UL Recognized Component.Class I, Division 2, Gr.
UPC783472153190
Voltage - Output 124V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 5-
Voltage - Output 6-
Voltage Rating115/230
Volts AC Range115/230
Volts DC24
Volts DC Range210-375
Wattage120, 8.6
Width0 in, 1.97, 2.56, 2.56 .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD66921330.111In StockSOLA30.11 @ 1
Onlinecomponents.comSDN5-24-100P247.05110SOLA247.05 @ 1
Straight Road ElectronicsSDN524100P253.562In StockSola/Hevi-Duty253.56 @ 2
AmazonTPB00DE2POWU272.01In Stock1SOLA272.0 @ 1
thumbzoomCarlton Bates Company78347215319274.51In StockSOLAHD274.5 @ 1
thumbzoomZoroG5963599295.471In Stock2Sola295.47 @ 1
thumbzoomMRO Supply1011874322.252In StockSolaHD322.25 @ 2
thumbzoomsustainablesupply.comC1195532323.141In StockSola2.3323.14 @ 1
Hawk ElectronicsSDN524100P344.21In StockSola HD344.2 @ 1
standardelectricsupply.com35085344.4189Sola/Hevi-Duty344.4 @ 1
thumbzoomWalker IndustrialSDN524100P357.821In Stock17SolaHD357.82 @ 1
thumbzoomDigi-Key10072034365.5139SolaHD365.5 @ 1
thumbzoomsimsupply.comZO-G1080904398.891197Solahd398.89 @ 1
thumbzoomgordonelectricsupply.comSDN5-24-100P408.01In Stock380SOLA-HD408.0 @ 1
thumbzoomelectricalparts.comSDN524100P414.2096125Sola Hevi-Duty414.2096 @ 1
thumbzoomPlatt.com0560158416.06166Sola Hevi-Duty416.06 @ 1
us.rs-online.com70211351445.181In StockSolaHD445.18 @ 1
thumbzoommayerelectric.comSOLSDN524100P449.7712SOLA HEVI-DUTY449.77 @ 1
grainger.caWWG3WY64470.859384441In StockSOLAHD2.3470.85938444 @ 1
kirbyrisk.com1820429481.07111Solahd481.07 @ 1
thumbzoomUnited Electric116460525.991In StockSolaHD525.99 @ 1
thumbzoomNational Supply Network64911985530.971In StockSola/Hevi-Duty530.97 @ 1
thumbzoomRaptor SuppliesAD2ZBZ550.0490581In StockSOLA/HEVI-DUTY550.049058 @ 1
thumbzoomswatee.comSDN5-24-100P609.97124Sola/Hevi-Duty609.97 @ 1
thumbzoombscsource.comSDN524100P769.191In StockSola/Hevi-Duty769.19 @ 1
thumbzoomcrescentelectric.com87608851.231112SolaHD851.23 @ 1
