- mpnBL-9463-1000
- brandname: Belden
- manufacturername: Belden

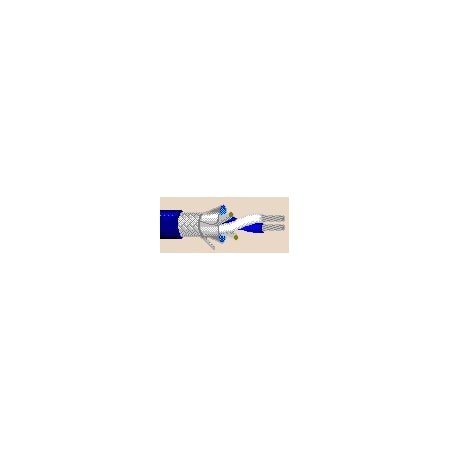

Belden Twinaxial Cable, 20Awg, 78 Ohm, 1000Ft, Blue - 9463 J221000
- Brand: Belden
- PartNumber: 9463 J221000
- Model: 9463 J221000
- Color: Blue
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: BELDEN
- Label: BELDEN
Attributes
| Key | Value |
|---|
| Alternate Part No. | 566-9463-1000 |
| Application | For industrial automati. |
| AWG Size | 20 |
| Brand | Belden Wire & Cable |
| Cable Type | PLC and DCS Cable, Twin. |
| Color | Blue, Strong |
| Conductor Count | 2 |
| Conductor Material | Tinned Copper (TC), Tin. |
| Conductor Size | 20 AWG |
| Configuration | 1 Pair |
| Country of Origin | US - United States |
| CPR Euroclass | Eca |
| CPR UKCA Class | Eca |
| Delivery Restrictions | Due to size or weight o. |
| ECCN | EAR99 |
| EU CE Mark | Yes |
| EU Directive 2015/863/EU | Yes |
| Impedance | 78 Ohms |
| Insulation Material | Polyethylene (PE), Poly. |
| ISO/IEC Flammability | IEC 60332-1-2 |
| Jacket Color | Blue |
| Jacket Colour | Blue |
| Jacket Material | PVC, Polyvinyl Chloride. |
| Length | 1000 ft, 1000 ft. |
| Manufacturer | Belden Wire & Cable |
| Manufacturer Part No. | 9463 J221000 |
| Material@Insulation01 | PE - Polyethylene |
| Material@OuterShield1 2 | Tinned Copper (TC) |
| Maximum Temperature | + 80 C |
| NEC Articles | Article 725;Article 800 |
| No. of Conductors | 2 |
| Number of Coaxial | 2 |
| Number of Conductors | 2 |
| Outer Diameter | 0.238 in. |
| Outside Diameter | 0.238 in |
| Packaging | Coil |
| PMSHA Specification | P-7K-SC-182141-MSHA |
| Product Category | Coaxial Cables |
| Product Header | Industrial Automation a. |
| Put-Up Type | Reel |
| Series | 9463 Series, 9463 |
| Shield Material | Aluminum/Polyester Tape. |
| Shielded | Overall Beldfoil Shield |
| Shielding | Shielded, Braid, Foil, . |
| Standards | UL AWM Style 2464 ; NEC. |
| Storage Temperature Ran. | -40?C to +80?C |
| Stranding | 7 x 28, 7x28 |
| Stranding@Conductor1 | 7x28 |
| Suitability - Indoor | Yes |
| Suitability - Sunlight . | Yes |
| Temperature, Rating | -40 to 80 C |
| UL Flammability | UL 1685 UL Loading |
| UL Temp Rating | 80?C (UL AWM Style 2464) |
| UL voltage rating | 300 V RMS (UL AWM Style. |
| Unit Weight | 17.690 kg |
| UNSPSC | 26121600 |
| Voltage Rating | 300 V |
| Wire Gauge - AWG | 20 |
| Wire Size | 20 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | turtle.com | BDN 9463 J221000 | 1.85 | 1 | 1000 | | Belden | | 1.85 @ 1000 |
 | French Gerleman | BELD9463J221000 | 2.27 | 1 | 1774 | | Belden | | 2.27 @ 1000 |
 | alldataresource.com | B9463-1000 | 2.5 | 1 | 1000 | | Belden | | 2.5 @ 1000 |
| kirbyrisk.com | 1799764 | 4.17436 | 1000 | 1000 | | Belden | | 4.17436 @ 1000 |
 | swatee.com | 9463 J221000 | 1389.64 | 1 | 47360 | | Belden Wire & Cable | | 1389.64 @ 1000 |
| AmazonTP | B005T7E50A | 1552.35 | 1 | 1000 | 1 | Belden | | 1552.35 @ 1000 |
| RS Delivers | 136-6349 | 1682.82 | 1 | 1000 | | Belden | | 1682.82 @ 1000 |
 | Markertek | BL-9463-1000 | 2063.93 | 1 | 1000 | | Belden | | 2063.93 @ 1000 |
| Graybar | 99568676 | 2402.4448 | 1 | 1000 | | Belden | | 2402.4448 @ 1000 |
 | industrialnetworking.com | 9463 J221000 | 2465.6 | 1 | 1000 | | Belden | | 2465.6 @ 1000 |
| us.rs-online.com | 70004544 | 2569.86 | 1 | 1000 | | Belden | | 2569.86 @ 1000 |
 | Newark | 87K6358 | 2706.99 | 1 | 1000 | | BELDEN | | 2706.99 @ 1000 |
 | Zoro | G2106484 | 29449.75 | 25 | 1000 | | Belden | | 29449.75 @ 1000 |
