AO Smith UB09CCH2F

B0042GLPWA

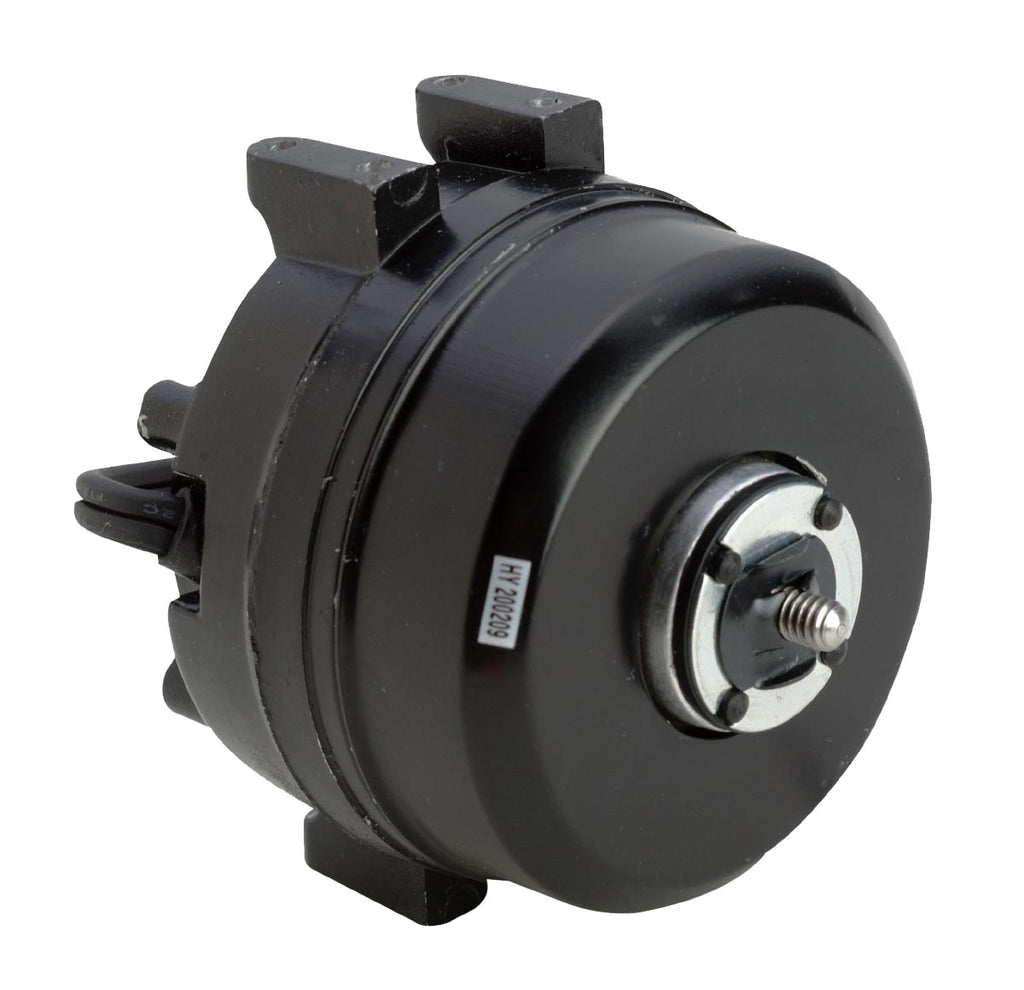

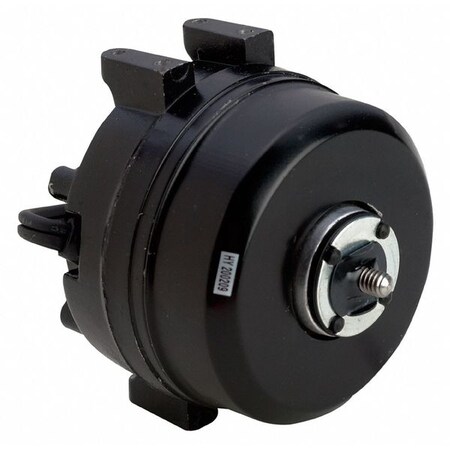

A.O. Smith UB09CCH2F 230 Volt 1550 RPM Unit Bearing Fan Motor UB09CCH2F

A.O. Smith UB09CCH2F 230 Volt 1550 RPM Unit Bearing Fan Motor UB09CCH2Fzoom

Attributes

Key Value
Body Dia.3-7/16"
Bolt Circle Dia.2-13/16"
Country of Origin (subj.China
FrameNon-Standard
Frame MaterialCast Iron
Full Load Amps0.27
HP1/83
Hz60/50
Includes(4) Mounting Screws, Sp.
Ins. ClassB
ItemUnit Bearing Motor
Length Less Shaft3"
Max. Ambient Temp.50 Degrees C
Motor ApplicationHVAC/R
Motor BearingsUnit
Motor DesignShaded Pole
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Frame MaterialCast Iron
Motor Mounting PositionAll Angle
Motor Mounting TypeRear/Foot
Motor Service Factor1.00
Motor Shaft DesignThreaded
Motor Shaft RotationCCWLE
Motor Sub ApplicationRefrigerator/Freezer
Motor Thermal ProtectionImpedance
Nameplate RPM1550
Output Watts9
Overall Length3-7/16"
Phase1
RPM Range1501-1600
Shaft Dia.1/4"
Shaft Length7/16"
Voltage230
Voltage Compatibility230, 240, 115/230, 120/.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG366352721.921In Stock26Century21.92 @ 1
thumbzoomsustainablesupply.comC209034628.911In StockCentury15.028.91 @ 1
thumbzoomcshincorporated.comUB09CCH2F29.611In StockAO Smith / Century4.029.61 @ 1
