Chicago Latrobe 48207

B09TJR1PC5

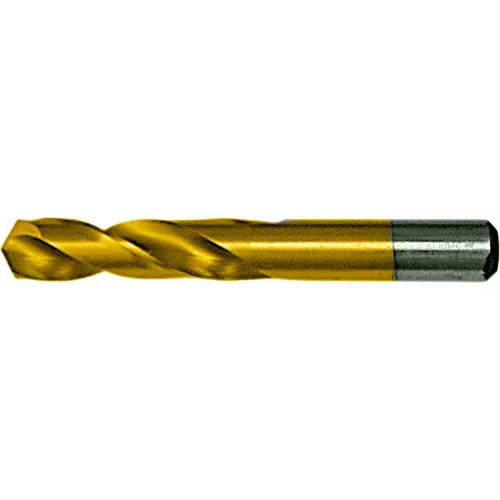

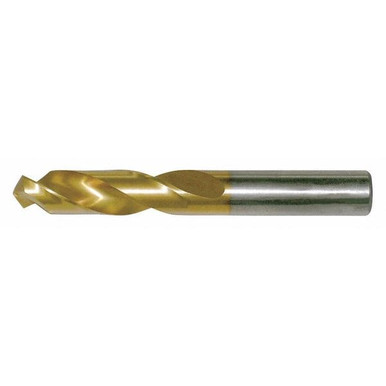

Chicago-Latrobe 48207 159-TN/2159 Heavy Duty Screw Machine Drill, 7/64 in Drill - Fraction, 0.1094 in Drill - Decimal Inch, HSS, TiN Coated (12 Each)

Chicago-Latrobe 48207 159-TN/2159 Heavy Duty Screw Machine Drill, 7/64 in Drill - Fraction, 0.1094 in Drill - Decimal Inch, HSS, TiN Coated (12 Each)zoom

Attributes

Key Value
ApplicationFor Drilling Alloy Stee.
Bit Dia.7/64"
BrandChicago-Latrobe
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of Origin (subj.United States
Current Stock26
Cutting DirectionRight Hand
Decimal Equivalent0.1094
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.1094"
Diameter (Fraction)7/64"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishTiN
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle135 Degrees
Drill Bit Point TypeSplit Point
Drill Bit Size7/64 in
Drill ConstructionHeavy-Duty
Drill Diameter Tolerance+0.0000 in /-0.0005 in
Drill Length ClassScrew Machine Length
Drill Point Length0.0227 in
Drill Size SystemFractional
Drill StyleScrew Machine Drill
Drilling Length13/16"
Finish - MachiningTiN
Flute Length0.8125", 13/16 in
Flute Length (Metric)20.64mm
Flute TypeSpiral
GradeHeavy Duty
Hand of CutRight
Hand of SpiralRight
Helix Angle28 Degrees
International ShippingNo
ItemScrew Machine Drill Bit
List Number159-TN
MaterialHSS, High Speed Steel
Material - MachiningHigh Speed Steel
Material Grade - Machin.Heavy Duty
Maximum Drilling Depth13/16 in
Measurement SystemFractional Inch
Mpn48207
Number of Flutes2
Number of Pieces0
Overall Length1.8125", 1 13/16 in
Overall Length (Metric)46.04mm
Point Angle135?
Point StyleSplit
Point TypeSplit
Primary Material Applic.Cast Iron, Steel, Tool .
Primary Material Applic.K, P
Series159-TN
Shank ConfigurationStraight
Shank Dia.7/64 in
Shank Length1.0000", 1 in
Shank Length (Metric)25.40mm
Shank ShapeStraight
Shank Size0.1094", 7/64"
Shank Size (Metric)2.78mm
Shank TypeStraight
Shank Type - MachiningStraight
Sizes Included7/64"
SKUZO-G2991523
Spiral DirectionRight Hand
StandardsANSI
SubCategoryMachining
Surface ConditionTiN
Tool Size7/64"
UPC662355482070

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB25464082.981212Chicago-Latrobe2.98 @ 12
thumbzoomMegadepot482073.17112Chicago-Latrobe3.17 @ 12
thumbzoomheavydutydepot.com482073.173212Chicago-Latrobe3.17 @ 32
thumbzoomusmegastore.com482073.23112Chicago-Latrobe3.23 @ 12
thumbzoomZoroG29915233.67141Chicago-Latrobe3.67 @ 12
thumbzoombscsource.com482074.09112Chicago-Latrobe4.09 @ 12
thumbzoomNational Supply Network61313385.1625112Chicago-Latrobe5.1625 @ 12
thumbzoomGuardian061313385.89112Chicago-Latrobe5.89 @ 12
thumbzoomsimsupply.comZO-G29915239.23126Chicago-Latrobe9.23 @ 12
