- mpn48232
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

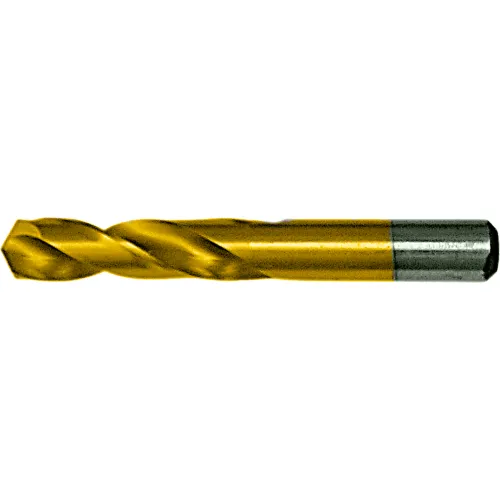

Chicago-Latrobe 48232 159-TN/2159 Heavy Duty Screw Machine Drill, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, HSS, TiN Coated (Each)
- Brand: Chicago Latrobe
- PartNumber: 48232
- PackageQuantity: 6
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Bit Dia. | 1/2" |
| Cutting Depth | 2-1/4 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.5000 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.5000" |
| Diameter (Fraction) | 1/2" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 1/2 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.1036 in |
| Drill Size - Decimal In. | 0.5 in |
| Drill Size - Fraction | 1/2 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Drilling Length | 2-1/4" |
| Finish | TiN Coated |
| Flute Length | 2 1/4 in, 2.2500", 2-1/. |
| Flute Length (Metric) | 57.15mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Screw Machine Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 2 1/4 in |
| Number of Flutes | 2 |
| Overall Length | 3.7500", 3 3/4 in, 3-3/. |
| Overall Length (Metric) | 95.25mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 159-TN/2159 |
| Shank Configuration | Straight |
| Shank Dia. | 1/2 in |
| Shank Length | 1 1/2 in, 1.5000" |
| Shank Length (Metric) | 38.10mm |
| Shank Size | 0.5000", 1/2", 1/2 in D. |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Straight |
| Sizes Included | 1/2" |
| Style | 159-TN |
| Surface Condition | TiN |
| Tool Size | 1/2" |
| Type | Heavy Duty |
