Cle-line C23836

mpnC23836
brandname: Cle-Line
manufacturername: Cle-Line

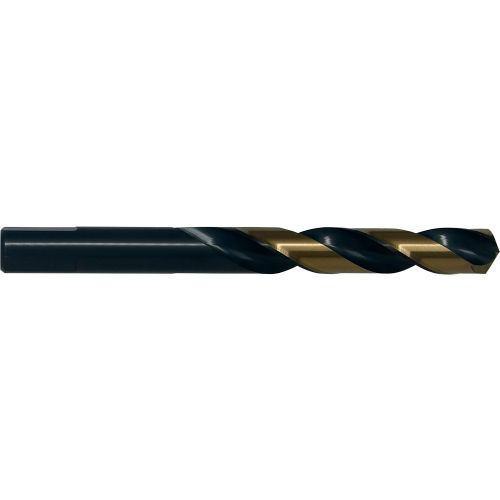

Mechanics Drill, HSS, 5/32, 135 Deg

Mechanics Drill, HSS, 5/32, 135 Deg

zoom

Brand: Cle-line
PartNumber: C23836
PackageQuantity: 1
Binding: Misc.
Manufacturer: CLE-LINE
Label: CLE-LINE

Attributes

Key	Value
Applicable Materials	Low Carbon/Stainless St.
Application	For Use On Alloy, Stain.
Brand	Cle-Line
Current Stock	42
Cutting Depth	1-11/16 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1563
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1562"
Diameter (Fraction)	5/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black/Gold
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	135 Degrees
Drill Bit Size	5/32 in
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Mechanics Length
Drill Point Length	0.0324 in
Drill Size - Decimal In.	0.1562 in
Drill Size - Fraction	5/32 in
Drill Size System	Fractional
Drill Style	Mechanics Length Drill
Finish	Black/Gold Oxide
Flute Length	1.6875", 1 11/16 in, 1-.
Flute Length (Metric)	42.86mm
Flute Type	Spiral
Grade	Heavy Duty
Hand of Cut	Right
Hand of Spiral	Right
International Shipping	No
List Number	1875
Material	HSS
Maximum Drilling Depth	5/8 in
Measurement System	Imperial
Mpn	C23836
Number of Flutes	2
Number of Pieces	1
Overall Length	2-3/4 in, 2 3/4 in, 2.7.
Overall Length (Metric)	69.85mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split point, Split
Series	1875R
Shank Configuration	Straight
Shank Dia.	9/64 in
Shank Length	1.0625", 1 1/16 in
Shank Length (Metric)	26.99mm
Shank Size	0.1562", 5/32 in
Shank Size (Metric)	3.97mm
Shank Type	Straight
SKU	ZO-G1425155
Style	1875R
SubCategory	Machining
Surface Condition	Black & Gold
Tool Size	5/32"
Type	Heavy Duty
UPC	697334238362

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C23836	1.16	1	12		Cle-Line		1.16 @ 12
	heavydutydepot.com	C23836	1.16	87	12		Cle-Line		1.16 @ 87
	MRO Supply	6125086	1.53	33	12		Cle-Line		1.53 @ 33
	Zoro	G1425155	1.64	1	2599		Cle-Line	0.01	1.64 @ 12
	usmegastore.com	C23836	2.21	1	12		Cle-Line		2.21 @ 12
	sustainablesupply.com	C1465299	2.33	1	12		Cle-Line	0.01	2.33 @ 12
	simsupply.com	ZO-G1425155	7.77	1	42		Cle-Line		7.77 @ 12
	Global Industrial	WBB2545340	14.9364	1	12		Cle-Line		14.9364 @ 12
	AmazonSC	B00J9FW50K	32.35	1	12		Cle-line		32.35 @ 12
