CLEVELAND C08749

mpnC08749
brandname: CLEVELAND
manufacturername: CLEVELAND

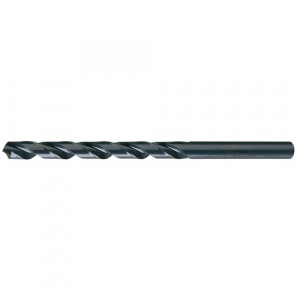

CLEVELAND Taper Length Drill,6.50mm,HSS C08749

CLEVELAND Taper Length Drill,6.50mm,HSS C08749

zoom

Brand: CLEVELAND
PartNumber: C08749
Model: C08749
Size: 6.5mm
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Application	For Stainless Steel, To.
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Cutting Depth	97 mm
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.2559
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Drill Bit Dimension Type	Metric
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	6.50 mm
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Taper Length
Drill Point Length	0.0769 mm
Drill Size - Decimal In.	0.2559 in
Drill Size - Metric	6.5 mm
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	97.00 mm, 97 mm
Flute Type	Spiral
Grade	General Purpose
Helix Angle	21 Degrees /34 Degrees
Item	Taper Length Drill Bit
List Number	2510
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	General Purpose
Maximum Drilling Depth	97.00 mm
Measurement System	Metric
Number of Flutes	2
Overall Length	148.00 mm, 148 mm
Point Angle	118 deg
Point Type	Radial
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	2510
Shank Dia.	6.50 mm
Shank Length	51.00 mm
Shank Size	6.5 mm
Shank Type	Straight
Shank Type - Machining	Straight
Sizes Included	6.50mm
Spiral Direction	Right Hand
Standards	DIN 340
Style	2510
Surface Condition	Steam Oxide
Tool Size	6.5mm
Type	General Purpose

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6110021	8.28	5	10		Cleveland		8.28 @ 10
	usmegastore.com	C08749	8.6	1	10		Cleveland		8.6 @ 10
	Zoro	G2995680	11.0	1	10		Cleveland	0.06	11.0 @ 10
	sustainablesupply.com	C2975056	11.64	1	10		Cleveland	0.06	11.64 @ 10
	bscsource.com	C08749	14.09	1	10		Cleveland		14.09 @ 10
	National Supply Network	63723514	15.859	1	10		Cleveland		15.859 @ 10
	Guardian	63723514	18.56	1	10		Cleveland		18.56 @ 10
