Hubbell HBL4770C

mpnHUBHBL4770C
brandname: Hubbell\u0020Kellems
manufacturername: Hubbell\u0020Kellems

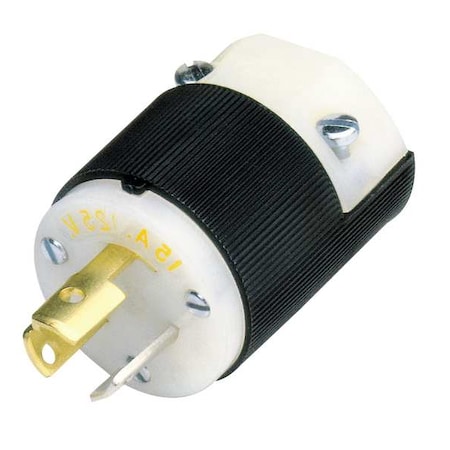

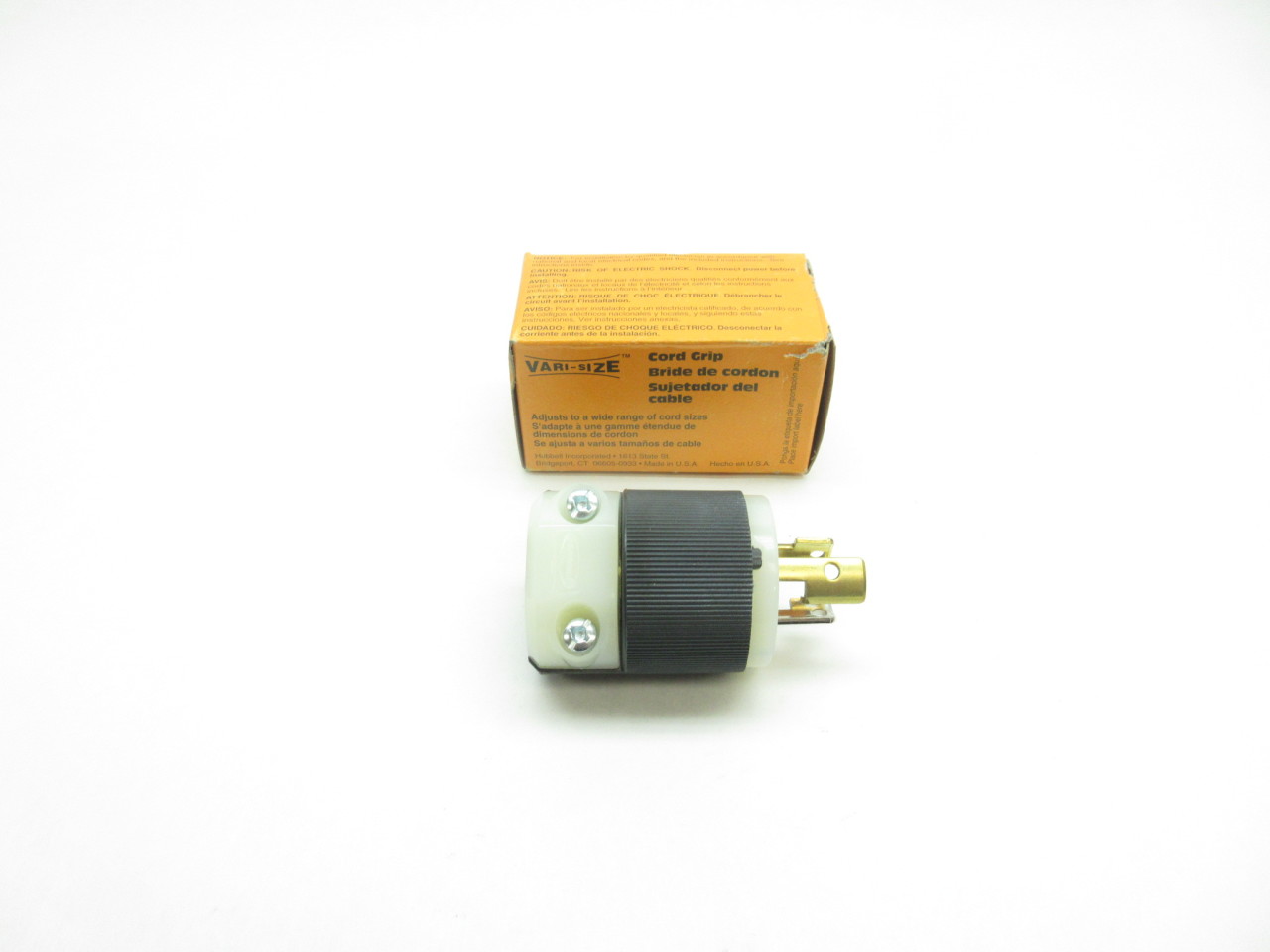

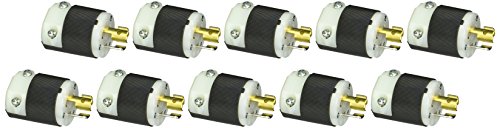

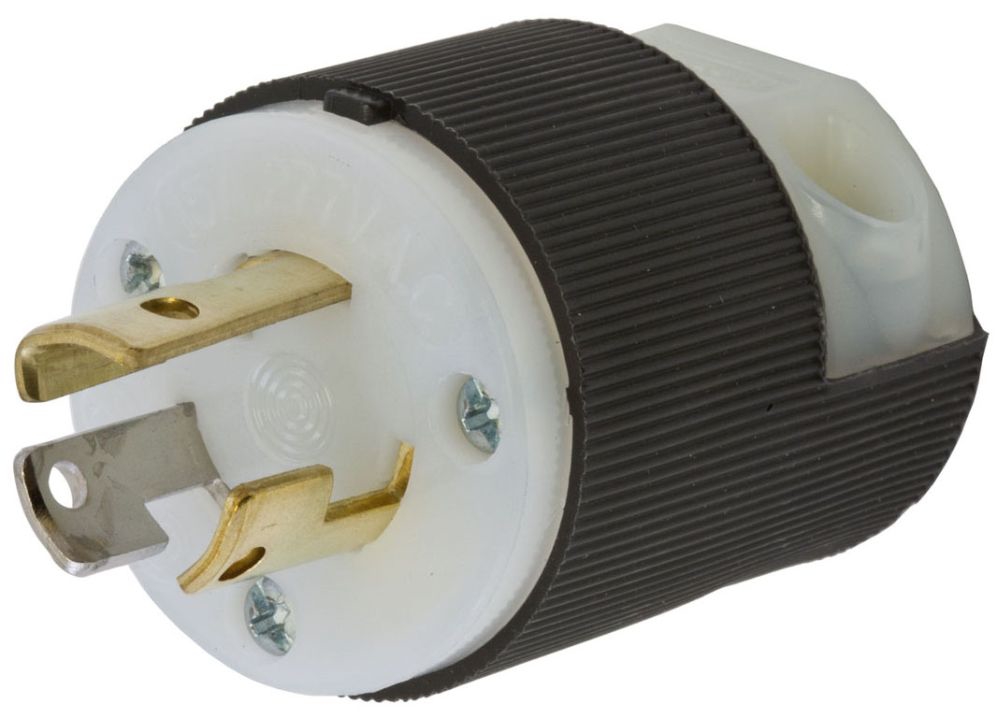

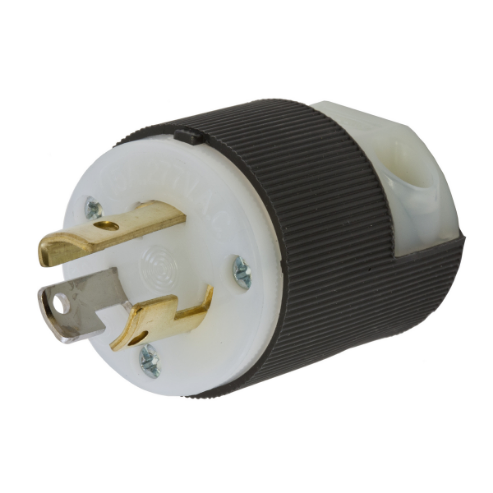

Hubbell HBL4770C Locking Plug, 15 amp, 277V, L7-15P, Black/White (Pack of 10)

Brand: Hubbell
PartNumber: HBL4770C
Model: HUBHBL4770C
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Agency Approvals	UL ; CSA
Amperage	Amperage, 15 A
Amperage Rating	15A
Amps	15
Amps - Plugs and Recept.	15
Antimicrobial	No
Application	Extra Heavy Duty Indust.
Approval	Approval
Approvals	CSA, UL
ASIN	B009DILHN4
AWG Range	#16 AWG to #8 AWG
Batteries Required?	No
Blade Material	Brass
Body Length	1.53 in
Body Type	Straight
Boot Code	A
Brand	Twist-Lock Insulgrip
Cable Range	0.230 - 0.720 in.
Cable range	0.230 - 0.720 in
Color	Black/White, Color, Bla.
Color - Plugs and Recep.	Black/White
Color Family	Multi
Configuration	Configuration
Connection Orientation	Straight
Connectivity	Pressure Terminal Screws
Constructional Feature	Constructional Feature
Contact Material	Brass
Contact Type	Pin
Cord dia	230 in-0.720 in
Cord Diameter	0.23 to 0.72 in
Cord Size	Cord Size, 0.230 in to .
Cord type	All Listed Portables
Corrosion Resistant	No
Country of Origin	US - United States
Country of Origin (subj.	United States
Current / amperage rati.	15 A
Current Rating	15 A
Current rating	15 A
Dielectric strength	Withstands 2,000V minim.
Dimensions	1.53 in x 1.53 in x 1.9.
Display Type	Standard Sized
ECCN	EAR99
Environmental conditions	Indoor Dry Unless Prote.
Family Name	Twist-Lock? Family
Family Series	Hubbell Plugs & Recepta.
For Environment	Dry
For Location	Indoor
For Maximum Cable Diame.	0.72 in
For Minimum Cable Diame.	0.23 in
Grade	Industrial
Grade - Plugs and Recep.	Industrial
Gross Weight	0.15 lbs
Ground Type	Ground Type
Grounding	Grounded
Height	1.97 in., 1.97 in
Horsepower Rating	2 hp
Housing Color	Black, White
Housing Material	Black Nylon, Nylon
HP	2, 2.0
IP Rating	20, IP20
Isolated Ground	No
Item	Item, Locking Plug
Item - Plugs and Recept.	Locking Plug
Item model number	HBL4770C
Item Number	HBL4770C
Item Package Quantity	3
Length	1.53 in., 1.53 in
Manufacturer	Hubbell
Manufacturer Part Number	HBL4770C
Market	Industrial
Material	Material, Nylon
Material - mounting har.	Cord Mounted
Max HP	2
Maximum Operating Tempe.	75 Degrees C
Maximum Wire Size	8 AWG
Minimum Operating Tempe.	-40 Degrees C
Minimum Wire Size	16 AWG
Mounting Type	Cable
NEMA Configuration	L7-15P
NEMA Plug Configuration	L7-15P
NEMA Plug Configuration.	L7-15P
Nema Rating	L7-15P
NEMA Type	L7-15P
Net Weight	0.15 lbs
No. of Poles	2
No. of Wires	3
Number of Blades	3
Number of Contacts	3
Number of poles	2-Pole
Number of Poles	2
Number of Wires	3
Number of wires	3-Wire
Operating temperature	Maximum continuous 75C .
Outside Diameter	1.527 in
Overall Length	1.53 in
Part Number	HBL4770C
Phase	1, Single phase
Polarized	Yes
Primary Type	Twist Lock
Product Header	Twist-Lock Plug
Rated Voltage	277V AC
Resistance Properties	Chemical Resistant, Imp.
Series	Insulgrip Series
Shrouded	No
Shrouded / Non-Shrouded	Non-Shrouded
Standard	Certified to CSA C22.2 .
Standards	UL/CSA
Termination	Screw
Type	Plugs, Locking Plug
UL 94 Flammability Rati.	HB
Unspsc	Unspsc
UNSPSC	39121402
UPC Code	783585171708
UPC ID	UPC ID
Voltage	277VAC, 277 VAC, Voltage
Voltage - Plugs and Rec.	277V AC
Voltage Rating	277V AC, 277 V
Voltage rating descript.	277 VAC
Watertight	No
Width	1.53 in.
Width (in)	1.53
Wire Connection Type	Screw Terminals
Wire size	#16 AWG to #8 AWG
Wire Size	8-16 AWG
Wiring Style	Standard

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Task Surplus	IG-TAS257-128-4B11	15.0	1	10		HUBBELL		15.0 @ 10
Onlinecomponents.com	HBL4770C	17.31	1	19		HUBBELL		17.31 @ 10
Zoro	G2444985	18.28	1	10		Hubbell	0.15	18.28 @ 10
Kelly Hayes	HBL4770C	18.32	1	70		Hubbell Wiring Device-Kellems		18.32 @ 10
Carlton Bates Company	78358517170	22.09	1	10		HUBBELL		22.09 @ 10
mecampbell.com	HUBHBL4770C	24.03	1	10	54	Hubbell Kellems		24.03 @ 10
MRO Supply	1023351	24.71	2	10		Hubbell Wiring		24.71 @ 10
gordonelectricsupply.com	HBL4770C	25.09	1	10		HUBBELL		25.09 @ 10
Galco	HBL4770C-HBBL	26.21	10	17		Hubbell	0.15	26.21 @ 10
turtle.com	HUB HBL4770C	26.47	1	10		Hubbell		26.47 @ 10
cbtcompany.com	HBL4770C	27.03	1	10		Hubbell Wiring Device-Kellems		27.03 @ 10
Grainger	1X985	27.5	1	1040	0	HUBBELL WIRING DEVICE-KELLEMS		27.5 @ 10
steinerelectric.com	26446	28.57	1	10		Hubbell Wiring Device-Kellems		28.57 @ 10
NRI Industrial	D603623	29.94	1	10		HUBBELL		29.94 @ 10
sustainablesupply.com	C2889953	30.42	1	10		Hubbell Kellems	0.15	30.42 @ 10
bscsource.com	HBL4770C	30.89	1	10		Hubbell Wiring Device-Kellems		30.89 @ 10
National Supply Network	54035258	33.829	1	10		Hubbell Wiring Device-Kellems		33.829 @ 10
Radwell	HBL4770C	34.0	1	10		HUBBELL KELLEMS		34.0 @ 10
Graybar	95005509	37.0832	1	52		Hubbell Wiring Device - Kellems		37.0832 @ 10
Newark	94F9510	37.2	10	10		HUBBELL WIRING DEVICES		37.2 @ 10
us.rs-online.com	70116102	37.65	1	55		Hubbell Wiring Device-Kellems		37.65 @ 10
United Electric	105132	38.87	1	31		WIRING DEVICE-KELLEMS		38.87 @ 10
kirbyrisk.com	486789	43.88	1	10		Hubbell		43.88 @ 10
Raptor Supplies	AB4CXA	51.688611	1	10		HUBBELL WIRING DEVICE-KELLEMS		51.688611 @ 10
Amazon	B009DILHN4	65.0	1	10		Hubbell	0.5	65.0 @ 10
AmazonTP	B013PLAKUU	71.43	1	10	2	HUBBELL		71.43 @ 10
standardelectricsupply.com	18607	247.1	1	10		Hubbell		247.1 @ 10
