CAI - HUBBELL WIRING DEVICE-KELLEMS HBL430P7W

B07J2XFNYT

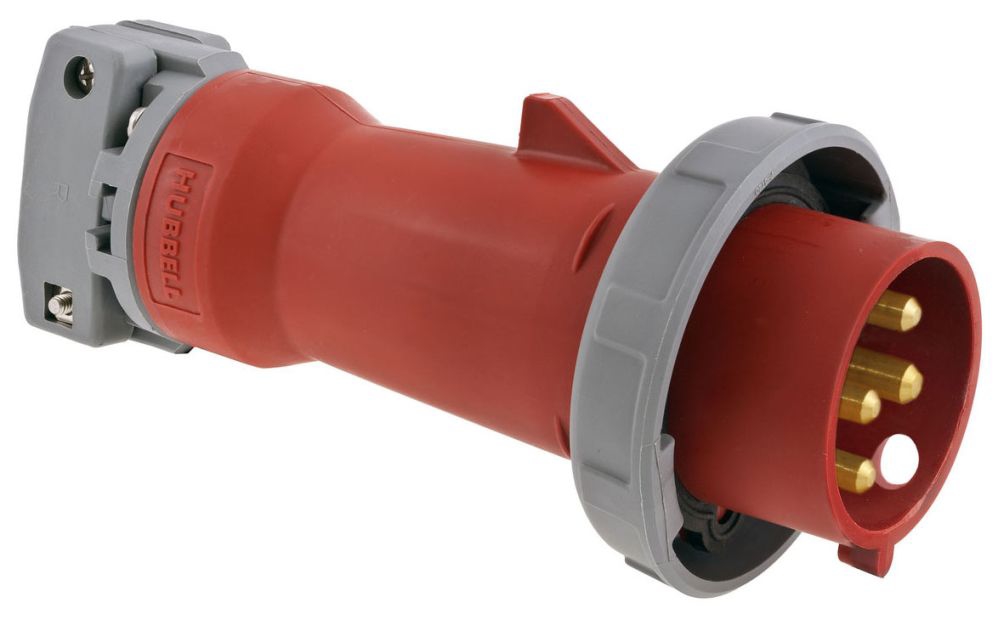

Hubbell Wiring Device-KELLEMS 30 Amp, 3-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Red

Hubbell Wiring Device-KELLEMS 30 Amp, 3-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Redzoom

Attributes

Key Value
Agency ApprovalsUL ; CSA
Amperage30A, 30 A
Amperage Rating30A, 30 A
Amps30
Amps - Plugs and Recept.30
ApplicationHigh Ampacity Connectio.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
AWG Range#12 AWG to #8 AWG
Base Unit of MeasureEA
Body MaterialZytel 801 Nylon
Body Material - Pin and.Zytel 801 Nylon
BOX SIZE9.900x22.800x9.500 (in)
Built-In Strain ReliefYes
Cap TypeNo Cap or Cover
Carton - Gross Weight p.13.250 lb.
Carton - Number of Sub .10
Carton - Pack Descripti.Carton
Carton - SCC-14 Next Lo.783585404585
Carton - Total Units10 EA
Case MaterialNon-Metallic
Case Weight16.350 lb.
Class CodeA12
ColorRed
Color - Plugs and Recep.Red
Color FamilyRed
Connection DescriptionWater Resistant
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Contact MaterialBrass
Contact TypePin
Cord Diameter0.375 to 1.25 in
Cord TypeAll Portable
Country of OriginPR, US - United States
Country of Origin (subj.United States
Current / Amperage Rati.30 A
Current Rating30 A
Description - InvoicePS, IEC, PLUG, 3P4W, 30.
Dielectric Rating3000 VAC
Display SizeStandard Sized
Display TypeStandard Sized
Each - Pack DescriptionEach
Each - Width4.500 in
ECCNEAR99
Environmental ConditionsWatertight
EU RoHS IndicatorYes
Family SeriesHubbell Plugs & Recepta.
FeaturesWatertight and Abuse Re.
For Maximum Cable Diame.1.25 in
For Minimum Cable Diame.0.5 in
Freight Class Code06168002
Gross Weight1.5 lbs
GroundingGrounded
Grounding StyleIEC
Harmonization Code8536694020
Horsepower Rating15 hp
Housing ColorRed
Housing MaterialZytel 801 Nylon, Non-Me.
HP7 1/2 hp
Image Actual Or Represe.A
Industry Standard(s)CSA Standard C22.2 No. .
IP RatingIP67
ItemIEC Pin and Sleeve Plug
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL430P7W
Lockout-TagoutYes
Lowest Level UOMEach
ManufacturerHubbell
Manufacturer Part NumberHBL430P7W
MaterialComposite
Material - Mounting Har.Cord Mounted
Maximum Operating Tempe.+75 ?C, 75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C, -40 ?C
Minimum Wire Size12 AWG
MSDS FlagNo
NEMA Enclosure Rating4X
Nema RatingNon-NEMA
NEMA RatingNon-NEMA
Net Weight1.5 lbs
No. of Poles3
No. of Wires4
Number of Contacts4
Number of Poles3, 3-Pole
Number Of Poles3-Pole
Number Of Wires4-Wire
Number of Wires4-Wire, 4
Overall Length8.037 in
Pallet - Pack Descripti.Pallet
Pallet - Total Units320 EA
Pallet Height44.000 in
Pallet Length48.000 in
Pallet Weight566.000 lb.
Pallet Width40.000 in
PerformanceElectrical - Current In.
Phase3, Three Phase
Phase - Electrical3
Pin & Sleeve StandardsIEC 60309
Power Indicating LightNo
Product HeaderWatertight IEC Pin and .
Product SeriesIEC Watertight
Rated Voltage480V AC
Replaced Catalog Number430P7W;HBLS430P7W
Resistance PropertiesImpact Resistant, Moist.
Reverse ServiceNo
SeriesHBL Heavy Duty
ShroudedYes
Special FeaturesWatertight
StandardCSA Standard C22.2 No. .
StandardsC22.2 No. 182.1, CSA Ce.
StyleStandard Service
Sub Class CodeA12A180
Switch RatedNo
Temperature Range (F)-40-167 ?F
Terminal Screw MaterialStainless Steel
Terminal TypeScrew
TerminationScrew
TypeCable Plug, Watertight .
UL 94 Flammability Rati.HB
UNSPSC39121402
UPC Code783585404585
Voltage480VAC, 3 Phase 480V, 4.
Voltage - Plugs and Rec.480V AC
Voltage Color CodeRed
Voltage Rating480 V, 480V AC, 3 Phase.
Voltage Rating Descript.3 Phase 480 VAC
Weight1.3 lbs.
Width4.500 in
Wire Connection TypeScrew Terminals
Wire Size10 AWG, 11 AWG, 12 AWG,.
Wire Size Range12-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL430P7W194.351In StockHubbell194.35 @ 1
AmazonTPB00DWIAK84240.831In Stock1Hubbell240.83 @ 1
thumbzoomrobsindustrial.comHBL430P7W241.191In StockHUBBELL241.19 @ 1
thumbzoomZoroG2222963243.751In StockHubbell0.95243.75 @ 1
thumbzoomsustainablesupply.comC1207523265.751In StockHubbell0.95265.75 @ 1
thumbzoomKelly HayesHBL430P7W269.351139Hubbell Wiring Device-Kellems269.35 @ 1
AmazonUNKB000LDFA9C278.381In StockHubbell278.38 @ 1
thumbzoomCarlton Bates Company78358540458281.671In StockHUBBELL281.67 @ 1
LCOMP78358540458281.671In StockHubbell Wiring Device-Kellems281.67 @ 1
Sager ElectronicsHBL430P7W306.431In StockHubbell Wiring Device-Kellems306.43 @ 1
thumbzoomMRO Supply1022757321.331In StockHubbell Wiring321.33 @ 1
standardelectricsupply.com44539344.291In StockHubbell344.29 @ 1
thumbzoomgordonelectricsupply.comHBL430P7W349.451In StockHUBBELL349.45 @ 1
thumbzoomGalcoHBL430P7W-HBBL354.411In StockHubbell1.5354.41 @ 1
thumbzoomUnited Electric111583364.0318WIRING DEVICE-KELLEMS364.03 @ 1
cbtcompany.comHBL430P7W376.491In StockHubbell Wiring Device-Kellems376.49 @ 1
thumbzoommayerelectric.comHUBHBL430P7W389.651In StockHUBBELL WIRING DEVICES566.0389.65 @ 1
steinerelectric.com26997428.021In StockHubbell Wiring Device-Kellems428.02 @ 1
Graybar88126842430.696111Hubbell Wiring Device - Kellems430.696 @ 1
thumbzoomNewark89F2856448.261In StockHUBBELL WIRING DEVICES448.26 @ 1
us.rs-online.com70116113466.2128Hubbell Wiring Device-Kellems1.3466.2 @ 1
kirbyrisk.com490031478.3718Hubbell478.37 @ 1
thumbzoomRaptor SuppliesAE7LJX655.82858251In StockHUBBELL WIRING DEVICE-KELLEMS655.8285825 @ 1
