Lovejoy 68514476166

mpn68514476166
brandname: LOVEJOY
manufacturername: LOVEJOY

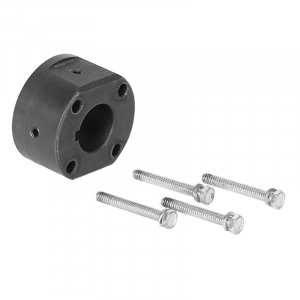

Lovejoy 68514476166 Cast Iron 9SCH Spacer Hub, Black Oxide, 1-1/8" Bore, 3.63" OD, 1/4" x 1/8" Keyway, 1800 Inch Pounds Item Torque

Lovejoy 68514476166 Cast Iron 9SCH Spacer Hub, Black Oxide, 1-1/8" Bore, 3.63" OD, 1/4" x 1/8" Keyway, 1800 Inch Pounds Item Torque

zoom

Brand: Lovejoy
PartNumber: 68514476166
Model: LOV 9SCH 1-1/8 SPACER HUB BLK OX KW
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Cap Screws Required	4
Bore Size	1-1/8 in
Bore Type	Finished Bore
Cap Screw Required Size	3/8 - 2-3/4
Color	Gray
Coupling Type	Coupling Hubs, S-Flex
Cubic inches	25.95849 in3
Dimension L	1.970 in (50.04 mm)
Dimension SL	1.170 in (29.72 mm)
Hub #	9SCH
Keyway Size (W x D)	1/4 x 1/8 in
Material	Cast Iron
Max. Bore	2.125 in
Max. Speed	3750.00 rpm
Nominal Torque (with EP.	1800 in-lb
Outside Diameter	3.630 in (92.20 mm)
Rated HP at 1,200 rpm	34.00 hp
Rated HP at 1,800 rpm	51.00 hp
Rated HP at 100 rpm	2.90 hp
Rated HP at 3,600 rpm	103.00 hp
Thread (Dimension T)	3/8-16
Torsional Stiffness	6875.00 in-lb/rad
Weight	4.20 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	68514476166	79.23	1	In Stock		Lovejoy	4.2	79.23 @ 1
	Megadepot	68514476166	87.17	1	In Stock		Lovejoy	4.2	87.17 @ 1
	heavydutydepot.com	68514476166	87.17	2	In Stock		Lovejoy		87.17 @ 2
