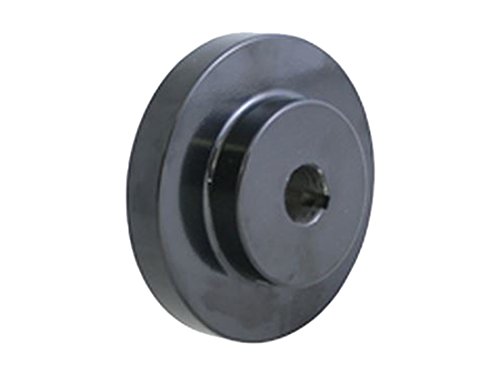

Lovejoy 68514476171 Cast Iron 9S Flange, 1.290"/1.291" Bore, 6.35" OD, 1/4" x 1/4" Keyway, 1800 Inch Pounds Item Torque

Lovejoy 68514476171 Cast Iron 9S Flange, 1.290"/1.291" Bore, 6.35" OD, 1/4" x 1/4" Keyway, 1800 Inch Pounds Item Torquezoom

Attributes

Key Value
Bore Size1-5/16 in
Bore TypeFinished Bore
ColorGray
Coupling Size9S
Coupling TypeS-Flex
Cubic inches97.17723 in3
Dimension FL1.030 in (26.16 mm)
Dimension HD3.630 in (92.20 mm)
Dimension L2.410 in (61.21 mm)
Dimension P0.780 in (19.81 mm)
Dimension SL0.410 in (10.41 mm)
Keyway Size (W x D)1/4 in
MaterialCast Iron
Max. Bore (Dimension ID)2.375 in
Max. Speed3750.00 rpm
Nominal Torque (with EP.1800 in-lb
Outside Diameter6.350 in (161.29 mm)
Rated HP at 1,200 rpm34.00 hp
Rated HP at 1,800 rpm51.00 hp
Rated HP at 100 rpm2.90 hp
Rated HP at 3,600 rpm103.00 hp
Thread (Dimension T)1/2-13
Torsional Stiffness6875.00 in-lb/rad
TypeCoupling Flange
Weight7.00 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com6851447617162.561In StockLovejoy7.062.56 @ 1
thumbzoomMegadepot6851447617168.081In StockLovejoy7.068.08 @ 1
thumbzoomheavydutydepot.com6851447617168.082In StockLovejoy68.08 @ 2
