Lovejoy 68514476496

mpn68514476496
brandname: LOVEJOY
manufacturername: LOVEJOY

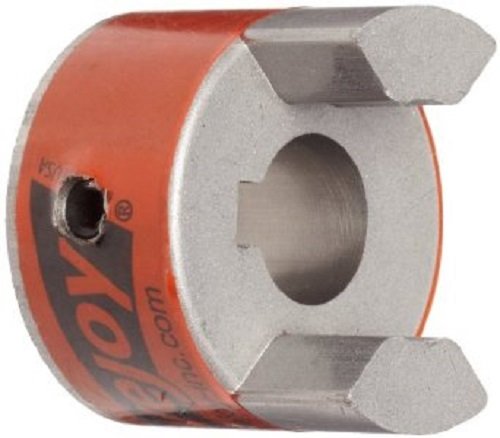

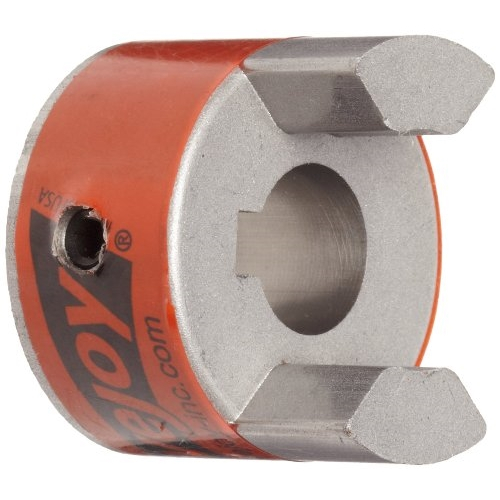

Lovejoy 76496 Size L110 Standard Jaw Coupling Hub, Sintered Iron, Metric, 37.5 mm Bore, 3.32" OD, 10 mm x 4 mm Keyway

Lovejoy 76496 Size L110 Standard Jaw Coupling Hub, Sintered Iron, Metric, 37.5 mm Bore, 3.32" OD, 10 mm x 4 mm Keyway

zoom

Brand: Lovejoy
PartNumber: 68514476496
Model: 68514476496
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Jaws	3
Bore Size	37.50 mm
Color	Metallic
Coupling Size	L110
Coupling Type	Jaw
Cubic inches	28.21734 in?
Dimension G	0.88 in (22.35 mm)
Dimension SL	0.750 in (19.05 mm)
Elastomeric Member	SOX (NBR) Rubber
Hub Length	2.56 in (65.02 mm)
Keyway Size (W x D)	10 x 4 mm
Length thru Bore	1.68 in (42.67 mm)
Material	Sintered Iron
Max. Bore (Dimensions I.	1.625 in (42 mm)
Max. Speed	5000 rpm
Min. Bore (Dimensions I.	0.625 in (16.00 mm)
Nominal Torque	792.00 in?lb (89.5 N?m)
Outside Diameter	3.32 in (84.33 mm)
Overall Length	4.22 in (107.19 mm)
Rated HP at 1,200 rpm	15.12 hp
Rated HP at 1,800 rpm	23.00 hp
Rated HP at 100 rpm	1.26 hp
Rated HP at 3,600 rpm	45.36 hp
Weight	2.7 lb
Weight (Complete Coupli.	6.60 lb
Weight (Complete Coupli.	5.30 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	68514476496	173.7	1	In Stock		Lovejoy	2.7	173.7 @ 1
	Megadepot	68514476496	185.5	1	In Stock		Lovejoy	2.7	185.5 @ 1
	heavydutydepot.com	68514476496	185.5	1	In Stock		Lovejoy		185.5 @ 1
