Molex / Waldom 15-45-3144

B00GQQTQKM

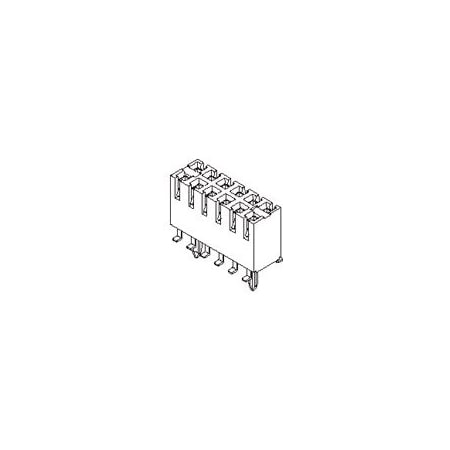

Molex / Waldom 15-45-3144 Connector Headers and PCB Receptacles

Molex / Waldom 15-45-3144 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Amps - Plugs and Recept.2.5 A
AngleVertical
ApplicationsAutomotive, General Pur.
Body Material - Pin and.High Temperature Thermo.
Color - Plugs and Recep.Black
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating (Amps)2.5A
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.368" (9.35mm)
Insulation MaterialLiquid Crystal Polymer .
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeSurface Mount
Number of Positions44
Number of Positions Loa.All
Number of Rows2
Operating Temp. Range-40? to +105?C
Operating Temperature-40?C ~ 105?C
Package Quantity1
Part StatusActive
Pitch - Mating0.100" (2.54mm)
Row Spacing - Mating0.100" (2.54mm)
StandardsCSA LR19980, UL E29179
StyleBoard to Board or Cable
Terminal ConnectionSurface Mount
TerminationSolder
Use WithBoard-to-Board, Signal
Voltage250V
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com15-45-31447.041740MOLEX / WALDOM7.04 @ 10
WaldomMOLEX 15-45-31447.5310434MOLEX7.53 @ 10
Digi-Key0015453144-ND7.8610372010Molex7.86103 @ 720
Newark01J46608.072010MOLEX8.0 @ 720
thumbzoomjensentools.com1015230310.04110Molex10.04 @ 10
thumbzoomRadwell15-45-314414.096010MOLEX14.0 @ 960
AmazonTPB07QQBNBR176.341101Molex / Waldom76.34 @ 10
AmazonSCB07QQBNBR179.9110Molex / Waldom79.9 @ 10
thumbzoomZoroG4032698102.9110Molex102.9 @ 10
