Omron E2E2-X18MY1-US

B0078RNPTG

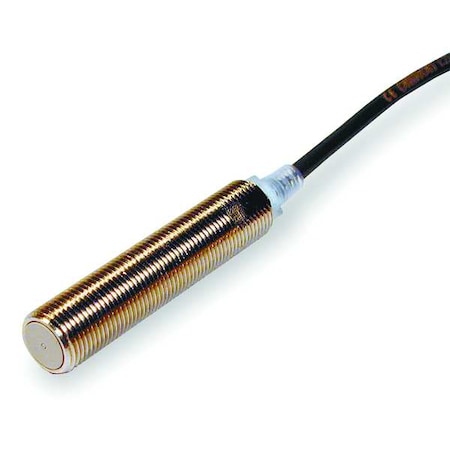

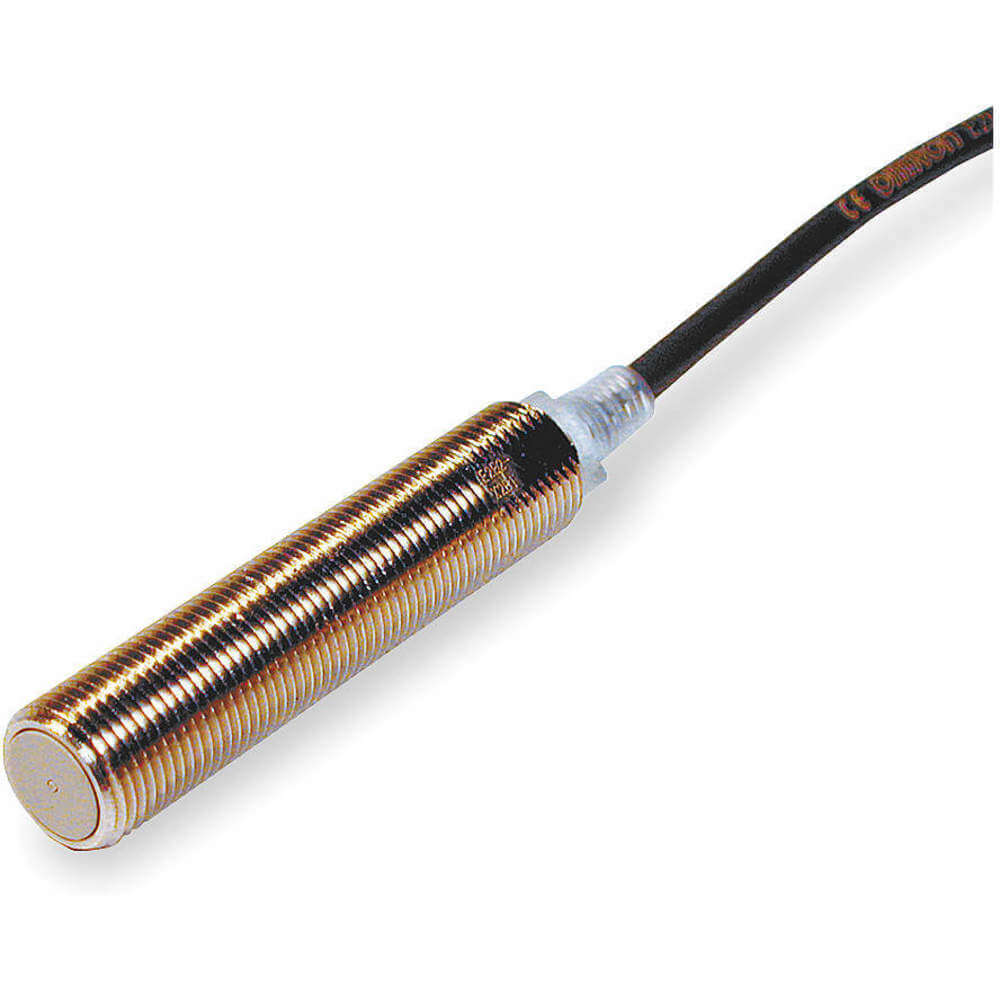

Proximity Sensor, Inductive, 30mm, NO

Proximity Sensor, Inductive, 30mm, NOzoom

Attributes

Key Value
Alternate Mfr Part Numb.E2E2X18MY1US
Basic Proximity Sensor .Metal
Body StyleCylindrical
Case MaterialNickel Plated Brass
Connection TypeM30
Description/Special Fea.LED Indication
Housing MaterialNickel Plated Brass
IncludesMOUNTING HARDWARE
IndicatorRed LED (Operation Indi.
Ingress ProtectionIP67, NEMA 1,4,6,12,13
IP RatingIP67, 67
ItemCylindrical Proximity S.
Leakage Current1.7 mA (Max.)
Length41 mm
Length (Straight Wirewa.41 mm
Material - BodyNickel-Plated Brass
Max. Current Load300mA
Max. Detecting Distance18 mm
Maximum Operating Tempe.85 C
Measurement Range18 mm
MfrOmron Automation and Sa.
Minimum Operating Tempe.-40 C
Mounting TypeM30 x 1.5 Threaded
NEMA Rating1, 12, 13, 4, 6
Operating Temp. Range-40 Degrees to 185 Deg.
Operating Temperature-40?C ~ 85?C
OutputNO
Output ModeNO
Output TypeSCR-NO, 2-Wire
Package / CaseCylinder, Threaded - M30
Package Quantity1
Part StatusActive
Primary TypeInductive Proximity Sen.
Proximity Sensing MethodInductive
Proximity Sensor Diamet.30 mm
Proximity Sensor Electr.2m Cable
Proximity Sensor Operat.25 Hz
Proximity Sensor Output.2 Wire
Proximity Sensor Power .24 to 240V AC
Proximity Sensor StyleCylindrical Proximity S.
Response Frequency25Hz
Sensing Distance0.709" (18mm)
Sensor TypeInductive
SeriesE2E Next Series
Shielded / UnshieldedUnshielded
ShieldingUnshielded
StandardsCE Compliance, CSA Cert.
Supply Voltage24-240 VAC
Switching Current300 mA
Switching Frequency0.025 kHz
TerminationPre-Wired
Termination StyleCable Leads
Voltage - Supply20 VAC ~ 264 VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comE2E2X18MY1US128.8211OMRON INDUSTRIAL128.82 @ 1
thumbzoomZoroG1931465143.991In StockOmron0.58143.99 @ 1
thumbzoomMRO Supply6163913161.641In StockOmron161.64 @ 1
AmazonSCB0078RNPTG172.491In StockOmron172.49 @ 1
thumbzoomDigi-KeyZ9200-ND175.771In StockOmron Automation and Safety175.77 @ 1
Airline HydraulicsOMRON E2E2-X18MY1-US191.01In StockOmron191.0 @ 1
Master ElectronicsE2E2X18MY1US197.9112Omron Automation197.91 @ 1
us.rs-online.com70179678236.913Omron Automation236.9 @ 1
thumbzoomRaptor SuppliesAB8YRU410.95015651In StockOMRON410.9501565 @ 1
