LY4AC24

mpnLY4AC24
brandname: OMRON INDUSTRIAL
manufacturername: OMRON INDUSTRIAL

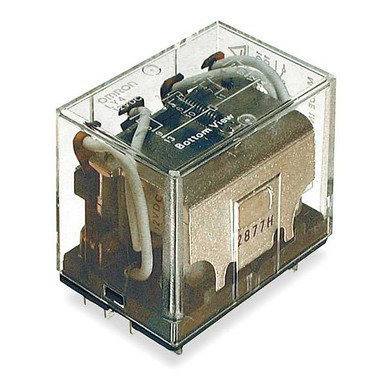

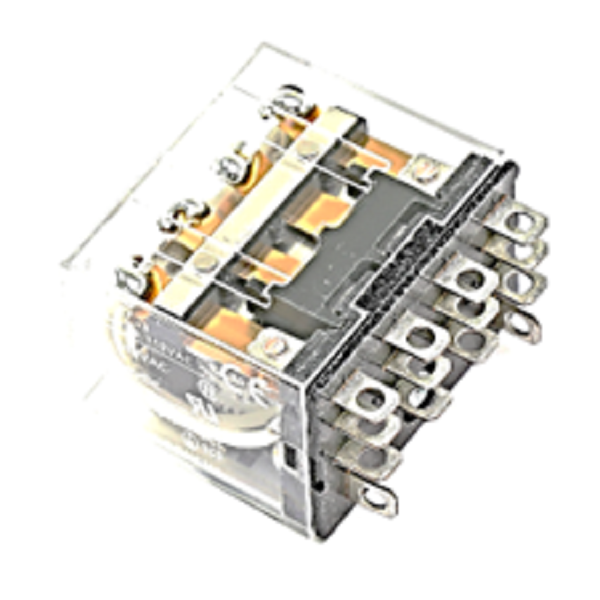

Relay, 14 Pins, 4pdt

PartNumber: LY4AC24
PackageQuantity: 1
Manufacturer: Omron
Label: Omron

Attributes

Key	Value
AC Contact Rating - Rel.	10A @ 120V, 10 A @ 120V
Alternate Mfr Part Numb.	LY4AC24
Base Product Number	LY4-AC
Base Type - Plug In Rel.	Square
Body Depth	1.42 in
Body Depth - Relay	1.10 in, 1.1 in
Body Height	1.1 in
Body Height - Relay	1.42 in
Body Width	1.63 in
Body Width - Relay	1.63 in
Brand	Omron
Category	Relays
Coil Current	46 mA, 80 mA
Coil Insulation	-
Coil Resistance	78 Ohms, 180 Ohms
Coil Type	Non Latching
Coil Voltage	24 VAC, 24VAC
Coil Volts	24V AC
Contact Current Rating	10 A
Contact Form	4PDT, 4PDT (4 Form C)
Contact Form - Relay	4PDT
Contact Material	Silver Alloy
Contact Rating (Current)	10 A
Contact Resistance	50 mOhms
Contact Voltage Rating	300
Control Voltage	24
Current Rating	10 A
Current Stock	97
DC Contact Rating - Rel.	10 A @ 24V, 10A @ 24V
Description	RELAY GEN PURPOSE 4PDT .
Detailed Description	General Purpose Relay 4.
Dielectric Rating	2000 VAC
Digi-Key Part Number	Z2270-ND
Dimensions	1.10 L x 1.63 W x 1.42 .
Features	Arc Barrier Equipped, H.
Flat Pin Width	0.197 in
Function	General Purpose
HP @ 120V	1/10 hp
HP @ 240V	1/3 hp
International Shipping	No
Item	General Purpose Relay
Item - Relay	General Purpose Relay
Lead Time	Expected to ship in 1-2.
Manufacturer	Omron Automation and Sa.
Manufacturer Product Nu.	LY4-AC24
Manufacturer Standard L.	26 Weeks
Maximum Operating Tempe.	40 C
Mfr	Omron Automation and Sa.
Minimum Operating Tempe.	-25 C
Mounting - Relay	Plug In, Plug-In
Mounting Type	Socket Mount, Socketable
Mpn	LY4-AC24
Must Operate Voltage	19.2 VAC
Must Release Voltage	7.2 VAC
Number of Pins	14 Pin
Number of Pins - Relay	14
Operate Time	25 ms
Operating Temperature	-25?C ~ 40?C
Overall Depth	1.67 in
Overall Height - Relay	1.69 in
Package	Bulk
Power Consumption - Rel.	2 VA, 2.0 VA
Power Rating	1100 VA ; 240 W
Primary Type	Power Relays
Product Status	Active
Push To Test	Manual
Relay Type	Electromechanical, Gene.
Release Time	25 ms
Seal Rating	-
Series	LY Series, LY
SKU	ZO-G0493087
Socket	Mfr. No. PTF14A
Socket Code - Relay	F
Standards	CE Certified, CSA Certi.
Status Indicator	No
SubCategory	Electrical
Switching Voltage	250VAC, 125VDC - Max
Termination	QC Tabs
Termination Style	Plug In
Voltage Rating	250 ; 125 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Newark	36K7552	4.81	1	74		OMRON INDUSTRIAL AUTOMATION		4.81 @ 1
gsistore.com	LY4-AC24	11.98	1	9999		Omron		11.98 @ 1
Onlinecomponents.com	LY4AC24	12.77	1	51		OMRON INDUSTRIAL		12.77 @ 1
Carlton Bates Company	40312347783	14.33	1	In Stock		OMRON		14.33 @ 1
ebay.com_zorotools	LY4-AC24	14.35	1	In Stock		OMRON		14.35 @ 1
AmazonTP	B005MIB5CW	14.53	1	In Stock	2	Omron		14.53 @ 1
AmazonUNK	B005MIB5CW	14.53	1	In Stock		Omron		14.53 @ 1
ebay.com_inventorymp	LY4-AC24	15.34	1	In Stock		OMRON		15.34 @ 1
Zoro	G0493087	18.59	1	100		Omron	0.15	18.59 @ 1
Kele	LY4-AC24	18.72	1	27		Omron		18.72 @ 1
grainger.ca	WWG2XC06	19.0886978	1	In Stock		OMRON	0.15	19.0886978 @ 1
Digi-Key	369538	21.37	1	16		Omron Automation and Safety		21.37 @ 1
ebay.com_plccenter	LY4-AC24	21.9	1	In Stock		OMRON		21.9 @ 1
us.rs-online.com	70178839	22.26	1	13		Omron Automation		22.26 @ 1
Airline Hydraulics	OMRON LY4-AC24	24.13	1	In Stock		Omron		24.13 @ 1
sustainablesupply.com	C1184432	25.24	1	In Stock		Omron	0.15	25.24 @ 1
simsupply.com	ZO-G0493087	27.97	1	97		Omron		27.97 @ 1
Master Electronics	LY4AC24	39.05	1	100		Omron Automation		21.0 @ 2
