- mpnOD1238-12HTB
- brandname: Orion (Knight Electronics, Inc.)
- manufacturername: Orion (Knight Electronics, Inc.)

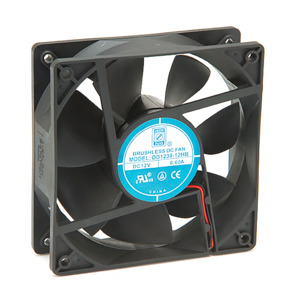

"Orion (Knight Electronics, Inc.) OD1238-12HTB Fan, DC Cooling w/Terminals, 4.72 in x 1.5 in, CFM 108-110"
- PartNumber: OD1238-12HTB
- Manufacturer: "Orion (Knight Electronics, Inc.)"
- Label: "Orion (Knight Electronics, Inc.)"
Attributes
| Key | Value |
|---|
| Air Flow | 127 CFM, 105 CFM, 105.0. |
| Alternate Mfr Part Numb. | OD1238PT-12HTB |
| Approval Agency | cURus, TUV |
| Approvals | cUR, TUV, UR |
| Approximate Size | 4.7 x 4.7 in. ; 120 x 1. |
| Approximate Thickness | 1.5 in. ; 38 mm |
| Base Product Number | OD1238 |
| Bearing Type | Dual Ball, Ball |
| Category | Fans, Thermal Management |
| Configuration | Square |
| Current Rating | 0.6 A, 0.5 A |
| Current Rating (Amps) | 0.5A |
| Description | FAN AXIAL 120X38.5MM 12. |
| Detailed Description | Fan Tubeaxial 12VDC Squ. |
| Digi-Key Part Number | 1053-1150-ND |
| Dimensions | 4.7 x 4.7 x 1.5 . ; 120. |
| Family Series | Orion Fans, DC-FAN Seri. |
| Fan Speed | 2,800 RPM |
| Fan Type | Tubeaxial, DC |
| Features | - |
| Gross Weight | 0 lbs |
| Impeller Material | Plastic |
| Ingress Protection | - |
| Item Number | OD1238-12HTB |
| Lifetime @ Temp. | 65000 Hrs @ 45?C |
| Manufacturer | Orion Fans, Orion |
| Manufacturer Part Number | OD1238-12HTB |
| Manufacturer Product Nu. | OD1238-12HTB |
| Manufacturer Standard L. | 19 Weeks |
| Material | Plastic |
| Material - Blade | Polybutylene Terephthal. |
| Material - Frame | Polybutylene Terephthal. |
| Maximum Operating Tempe. | 75 C |
| Mfr | Orion Fans |
| Minimum Operating Tempe. | -20 C |
| Net Weight | 0.62 lbs |
| Noise | 43.0dB |
| Noise Level | 47 dBA, 43 dB |
| Nominal Depth | 38 mm |
| Nominal Height | 120 mm |
| Nominal Voltage | 12 VDC |
| Nominal Width | 120 mm |
| Operating Temp Range (F) | -4-167 ?F |
| Operating Temperature | 14 ~ 158?F (-10 ~ 70?C) |
| Operating Voltage | 12 VDC |
| Package | Box |
| Power (Watts) | 6 W |
| Power Rating | 7.2 W |
| Product Series | DC-FAN |
| Product Status | Active |
| RoHS | Yes |
| Rotation | Clockwise, CW |
| RPM | 2800 RPM |
| Series | OD1238, OD1238 Series |
| Size | 4.7 x 1.5 (120 x 38) In. |
| Size / Dimension | Square - 120mm L x 120m. |
| Speed | 3000 RPM |
| Static Pressure | 0.31 in H2O (77.2 Pa), . |
| Tachometer Output | No |
| Termination | Terminals, 2 Terminals |
| Type | Square |
| Voltage - Rated | 12VDC |
| Voltage Range | - |
| Voltage Rating | 12 V |
| Weight | - |
| Width | 38.50mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | OD1238-12HTB | 16.67 | 1 | 9 | | ORION FANS | | 16.67 @ 1 |
| Hotenda | H1901461 | 19.06 | 1 | 72 | | Orion Fans | | 19.06 @ 1 |
 | jensentools.com | 10142198 | 22.85 | 1 | In Stock | | Orion Fans | | 22.85 @ 1 |
| us.rs-online.com | 70103293 | 24.9 | 1 | 122 | | Orion Fans | | 24.9 @ 1 |
 | Digi-Key | 2621055 | 24.9 | 1 | 27 | | Orion Fans | | 24.9 @ 1 |
 | Newark | 89AH2515 | 25.5 | 1 | 1 | | ORION FANS | | 25.5 @ 1 |
 | Galco | OD1238-12HTB-ORIN | 26.88 | 1 | In Stock | | Orion | 0.62 | 26.88 @ 1 |
