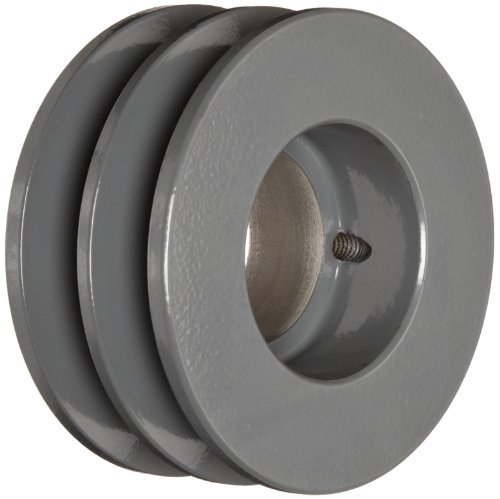

TB Woods 2BK36 FHP QT Bushed, 3.75" Outside Body Diameter V-Belt Sheave
- Brand: TB Woods
- PartNumber: 2BK36
- Model: 698672200868
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3L Pitch Diameter | Not Applicable |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 3.38 in, 3.25 in |
| 4L, A, or AX Belt Pitch. | 3 in |
| 5L Pitch Diameter | 3.813 in |
| 5L, B, or BX Belt Pitch. | 3.4 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 3.38 in, 3.25 in |
| AX Pitch Diameter | 3.38 in, 3.25 in |
| B Pitch Diameter | 3.813 in |
| Belt section | B-5L-A-4L |
| Bore Type | Bushed |
| Bore type | Quick disconnect bushing |
| Brand | Tb Woods |
| Bushing | QT |
| Bushing Required | QT |
| BX Pitch Diameter | 3.813 in |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.03 |
| Construction | Solid |
| Current Stock | 22 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 3.4 |
| Dimension | 0.44 |
| Face Diameter | 3.75 in |
| Face width | 1.75 |
| Face Width | 1.75 in |
| Face width (in) | 1.75 |
| Fits Shaft Dia. | 1/2 in to 1-1/2 in |
| For Belt Family | Classical, Classical Co. |
| For Belt Section (broad. | 4L, A, or AX, 5L, B, or. |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX |
| For Bushing Size | QT |
| For Bushing Type | Quick Detachable |
| For V-Belt Section | 4L, 5L, A, AX, B, BX |
| For V-Belt Type | Classical, Cogged, Band. |
| Groove cross section se. | B |
| I.D. | 2 |
| Industry Number | 2BK36 |
| Inertia WR? | 4 |
| Inside diameter (in) | 2.00 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Length through Bore | 1 1/4 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 6670 |
| Maximum Bore Diameter | 1 3/8 in, 1 1/2 in |
| Minimum Bore Diameter | 1/2 in |
| Mpn | 2BK36 |
| Number of Grooves | 2 |
| Number of grooves | 2 |
| Number of Steps | 2 |
| O.D. | 3.75 |
| Outside Diameter | 3.75 in |
| Outside diameter (in) | 3.75 |
| Overall Width | 2 3/16 in |
| Pitch diameter | 3.81 |
| Pitch Diameter | 3.81 in, Not Applicable |
| Pitch Diameter for V-Be. | 4L: 3.38 in / 5L: 3.813. |
| Pulley Bore Type | Quick Detachable Bushed. |
| Pulley Construction | Plain |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 3.75 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 6670 |
| Set Screw Included | No |
| SKU | ZO-G1968032 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672200868 |
| Weight | 2.3 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | sustainablesupply.com | C1694552 | 33.35 | 1 | In Stock | | TB Wood's | 2.55 | 33.35 @ 1 |
| AmazonTP | B003N17HOU | 41.97 | 1 | In Stock | 42 | TB Woods | | 41.97 @ 1 |
 | Zoro | G1968032 | 50.79 | 1 | 67 | | Tb Woods | 2.55 | 50.79 @ 1 |
| grainger.ca | WWG5UHK7 | 52.49754798 | 1 | In Stock | | TB WOOD'S | 2.55 | 52.49754798 @ 1 |
 | National Supply Network | 82223884 | 59.82 | 1 | In Stock | | TB Wood's | | 59.82 @ 1 |
 | simsupply.com | ZO-G1968032 | 60.22 | 1 | 22 | | Tb Woods | | 60.22 @ 1 |
 | MRO Supply | 347134 | 88.01 | 1 | In Stock | | TB Woods | | 88.01 @ 1 |
 | bscsource.com | 2BK36 | 88.59 | 1 | In Stock | | TB Wood's | | 88.59 @ 1 |
| us.rs-online.com | 73932002 | 97.66 | 1 | In Stock | | TB Wood's (Altra) | | 97.66 @ 1 |
 | Raptor Supplies | AE6PNY | 113.813271 | 1 | In Stock | | TB WOOD'S | | 113.813271 @ 1 |
