- mpnUCF212-38
- brandname: TRITAN
- manufacturername: TRITAN

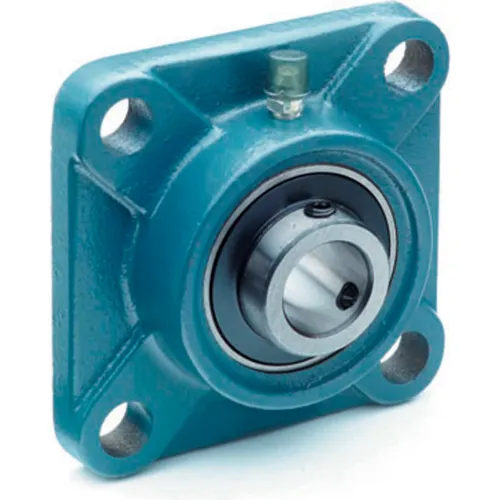

UCF212-38 - TRITAN - 4 Bolt Flange - Wide Inner Ring Insert - Set Screw -New
- Brand: Tritan
- PartNumber: UCF212-38
- PackageQuantity: 1
- Manufacturer: TRITAN
- Label: TRITAN
Attributes
| Key | Value |
|---|
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NL. |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Cen. | 5.6299" |
| Bolt Size | 5/8 in |
| Bore Dia. | 2.375" |
| Bore Diameter | 2 3/8 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Dynamic Load Capacity | 10,723.39 lbf, 10745 Lbf |
| Features | Anti-Rotation Device, C. |
| Finish | Painted |
| Flange Thickness | 0.781 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Square |
| Included Bearing | UC212-38 |
| International Shipping | No |
| Item | 4-Bolt Flange Bearing, . |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Ce. | 5.625 in |
| Mount Hole Center-to-Ce. | 5.625 in |
| Mount Hole Size | 3/4 in |
| Mounting Bolt Size | 5/8 in |
| Mpn | UCF212-38 |
| Number of Mount Holes | 4 |
| Overall Height | 68.7 mm, 6.89 in |
| Overall Length | 6.89 in, 175 mm |
| Overall Width | 2.703 in, 175 mm |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | UCF |
| Shaft Locking Type | Set Screw, Set Screws |
| SKU | ZO-G9446963 |
| Standards | ISO, AFBMA |
| Static Load Capacity | 7373 Lbf |
| Static Radial Load Capa. | 7,396.21 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Temp. Range | -4 to +248? F |
| UPC | 888569052926 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9446963 | 74.5 | 1 | In Stock | | Tritan | 8.57 | 74.5 @ 1 |
 | simsupply.com | ZO-G9446963 | 86.53 | 1 | In Stock | | Tritan | | 86.53 @ 1 |
 | Global Industrial | WBB1873273 | 127.8 | 1 | In Stock | | Tritan | | 127.8 @ 1 |
| grainger.ca | WWG36UY44 | 156.68699928 | 1 | In Stock | | TRITAN | 8.565 | 156.68699928 @ 1 |
 | Raptor Supplies | AH7JXT | 257.4709605 | 1 | In Stock | | TRITAN | | 257.4709605 @ 1 |
