Cle-Line C22783

mpnC22783
brandname: Cle-Line
manufacturername: Cle-Line

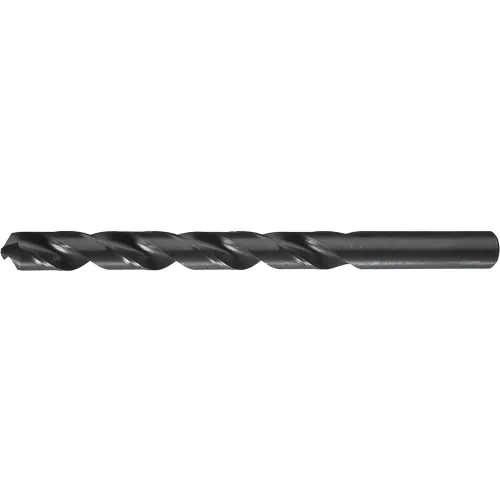

Cle-Line C22783 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 0.50 mm Drill Diameter (Pack of 12)

Cle-Line C22783 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 0.50 mm Drill Diameter (Pack of 12)

zoom

Brand: Cle-Line
PartNumber: C22783
Model: C22783
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Coolant Fed	Non-Coolant Through
Country of Origin (subj.	United States
Cutting Direction	Right Hand
Decimal Equivalent	0.0197
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.0197"
Diameter (Metric)	0.50mm
Drill Bit Dimension Type	Metric
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	0.50 mm
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Jobber Length
Drill Point Length	0.0059mm
Drill Size System	Metric
Drill Style	Jobber Drill
Finish - Machining	Black Oxide
Flute Length	0.2362", 6.00 mm
Flute Length (Metric)	6.00mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Jobber Length Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	5/64 in
Measurement System	Metric
Number of Flutes	2
Overall Length	22.00 mm, 0.8661"
Overall Length (Metric)	22.00mm
Point Angle	118?
Point Style	Radial
Primary Material Applic.	Aluminum, Cast Iron, St.
Primary Material Applic.	K, N, P
Series	1899
Shank Configuration	Straight
Shank Dia.	0.5 mm
Shank Length	16 mm, 0.6299"
Shank Length (Metric)	16.00mm
Shank Size	0.0197"
Shank Size (Metric)	0.50mm
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Standards	ASME B94.11M, DIN 338
Surface Condition	Steam Oxide
Tool Size	0.50mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Global Industrial	WBB2545094	2.1336	12	12		Cle-Line		2.1336 @ 12
	Megadepot	C22783	2.58	1	12		Cle-Line		2.58 @ 12
	heavydutydepot.com	C22783	2.58	39	12		Cle-Line		2.58 @ 39
	Zoro	G4943060	2.63	12	12	10	Cle-Line	0.63	2.63 @ 12
	usmegastore.com	C22783	2.65	1	12		Cle-Line		2.65 @ 12
