- mpnC22784
- brandname: Cle-Line
- manufacturername: Cle-Line

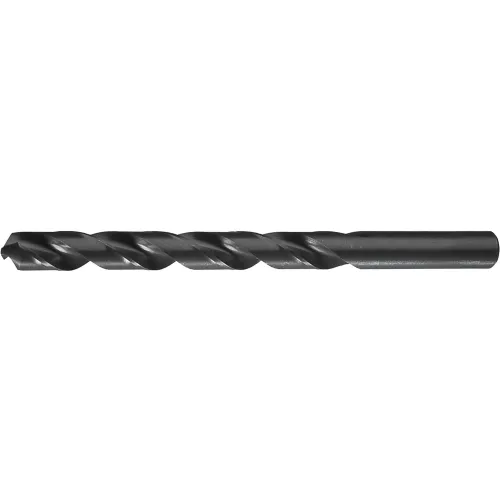

Cle-Line C22784 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 0.55 mm Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C22784
- Model: C22784
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0217 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0217" |
| Diameter (Metric) | 0.55mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Point Angle | 118 ?, 118 Degrees, 11. |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 0.55 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0065mm |
| Drill Size - Decimal In. | 0.0217 in |
| Drill Size - Metric | 0.55 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 7.00 mm, 7 mm, 0.2756" |
| Flute Length (Metric) | 7.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Item? | 50CL35 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 5/64 in |
| Measurement System | Metric |
| Mfr. Model? | C22784 |
| Number of Flutes | 2 |
| Overall Length | 24.00 mm, 0.9449", 24 mm |
| Overall Length (Metric) | 24.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum; Cast Iron; St. |
| Primary Material Applic. | K; N; P, K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 0.55 mm, 0.5 mm |
| Shank Length | 17 mm, 0.6693" |
| Shank Length (Metric) | 17.00mm |
| Shank Size | 0.0217", 0.55 mm Dia x . |
| Shank Size (Metric) | 0.55mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, DIN 340, . |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 0.55mm |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545090 | 1.2945 | 12 | 12 | | Cle-Line | | 1.2945 @ 12 |
 | Zoro | G4943079 | 1.5 | 12 | 12 | | Cle-Line | 0.63 | 1.5 @ 12 |
 | MRO Supply | 6124353 | 1.58 | 32 | 12 | | Cle-Line | | 1.58 @ 32 |
| grainger.ca | GNFC22784 | 1.61854738 | 1 | 12 | | CLE-LINE | 0.001 | 1.61854738 @ 12 |
 | Megadepot | C22784 | 1.8 | 1 | 12 | | Cle-Line | | 1.8 @ 12 |
 | heavydutydepot.com | C22784 | 1.8 | 56 | 12 | | Cle-Line | | 1.8 @ 56 |
 | usmegastore.com | C22784 | 1.88 | 1 | 12 | | Cle-Line | | 1.88 @ 12 |
| Grainger | 50CL35 | 2.03 | 1 | 12 | | CLE-LINE | | 2.03 @ 12 |
