Cleveland C08724

mpnC08724
brandname: CLEVELAND
manufacturername: CLEVELAND

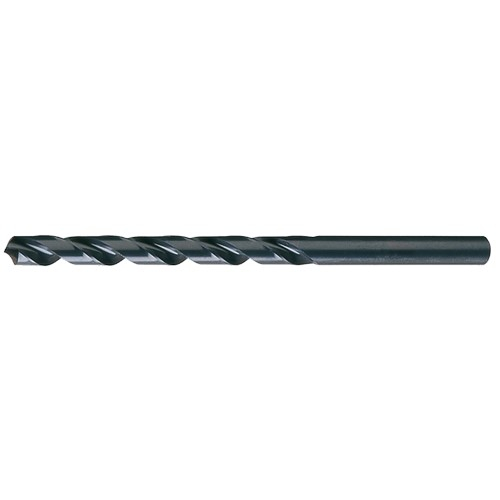

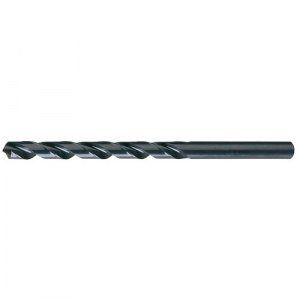

Cleveland C08724 High-Speed Steel General Purpose Taper Length Drill Bit, Steam Oxide Finish, Round Shank, Spiral Flute, 118 Degrees Radial Point, 4 Size (Pack of 10)

Cleveland C08724 High-Speed Steel General Purpose Taper Length Drill Bit, Steam Oxide Finish, Round Shank, Spiral Flute, 118 Degrees Radial Point, 4 Size (Pack of 10)

zoom

Brand: Cleveland
PartNumber: C08724
Model: C08724
Size: #4
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries, Inc.
Label: Greenfield Industries, Inc.

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Application	For Drilling Carbon Ste.
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Cutting Depth	3-5/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.2090
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Drill Bit Dimension Type	Wire
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	#4
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Taper Length
Drill Point Length	0.0628 in
Drill Size - Decimal In.	0.209 in
Drill Size - Wire	#4
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	3-5/8 in, 3 5/8 in
Flute Type	Spiral
Grade	General Purpose
Helix Angle	21 Degrees /34 Degrees
Item	Taper Length Drill Bit
List Number	2510
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	General Purpose
Maximum Drilling Depth	3 5/8 in
Measurement System	Wire
Number of Flutes	2
Overall Length	6 in
Point Angle	118 deg
Point Type	Radial
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	2510
Shank Dia.	13/64 in
Shank Length	2 3/8 in
Shank Size	0.209 in
Shank Type	Straight
Shank Type - Machining	Straight
Sizes Included	#4
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2510
Surface Condition	Steam Oxide
Tool Size	#4
Type	General Purpose

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6110010	7.98	5	10		Cleveland		7.98 @ 10
	Megadepot	C08724	9.01	1	10		Cleveland		9.01 @ 10
	usmegastore.com	C08724	9.06	1	10		Cleveland		9.06 @ 10
	Zoro	G2995507	10.0	1	10		Cleveland	0.04	10.0 @ 10
	sustainablesupply.com	C2975034	11.23	1	10		Cleveland	0.04	11.23 @ 10
	bscsource.com	C08724	13.59	1	10		Cleveland		13.59 @ 10
	National Supply Network	63725048	15.109	1	10		Cleveland		15.109 @ 10
	Guardian	63725048	17.87	1	10		Cleveland		17.87 @ 10
