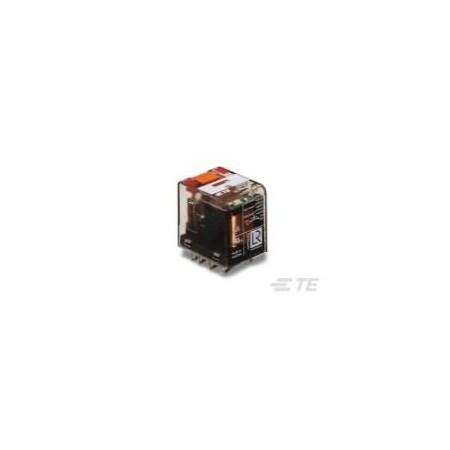

TE Raychem PT370S15

mpnPT370S15
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Raychem Connector

Brand: TE Raychem
PartNumber: PT370S15
Manufacturer: TE Raychem
Label: TE Raychem

Attributes

Key	Value
Alternate Mfr Part Numb.	5352463
Base Product Number	PT370
Body Depth - Relay	1.102 in
Body Height - Relay	1.142 in
Body Width - Relay	0.886 in
Category	Relays
Coil Insulation	-
Coil Resistance	4.85 kOhms, 4845 ?
Coil Type	Non Latching, Monostabl.
Coil Voltage	115VAC
Coil Volts	115V AC
Contact Current Rating	10 A
Contact Form	3PDT, 3PDT (3 Form C)
Contact Form - Relay	3 Form C (CO)
Contact Limiting Breaki.	10A
Contact Limiting Contin.	10A
Contact Limiting Making.	20A
Contact Limiting Short-.	300A
Contact Material	AgNi90/10, Silver Nicke.
Contact Rating (Current)	10 A
Contact Voltage Rating	240V AC, 115 VAC
Current Rating	10 A
Description	RELAY GEN PURPOSE 3PDT .
Detailed Description	General Purpose Relay 3.
Digi-Key Part Number	PB1419-ND
Features	Manual Operation, Mecha.
Function	General Purpose
Insulation Clearance	4 mm [ .157 in ]
Insulation Creepage	4 mm [ .157 in ]
Item - Relay	Miniature Relay PT
Manufacturer	TE Connectivity Potter .
Manufacturer Product Nu.	PT370S15
Manufacturer Standard L.	96 Weeks
Mfr	TE Connectivity Potter .
Mounting Type	Socket Mount, Socketabl.
Must Operate Voltage	92 VAC
Must Release Voltage	34.5 VAC
Number of Poles	3
Operating Temp. Range	50 to 70?C
Operating Temperature	-40?C ~ 70?C
Package	Tube
Power Consumption - Rel.	1VA
Primary Type	Power Relays
Product Status	Active
Protection Category	RTII
Relay Type	Electromechanical, Gene.
Seal Rating	-
Series	PT, SCHRACK, PT Series
Special Features	LED Indicator
Standards	RoHS
Switching Current	10mA @ 12V
Switching Voltage	400VAC - Max
Terminal Type	Plug-In, Quick Connect
Termination	Screw
Termination Style	Plug In, Quick Connect .
Voltage Rating	115 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	TE CONNECTIVITY POTTER-BRUMFIELD PT370S15	6.11	10	182	TE CONNECTIVITY / POTTER-BRUMFIELD	6.11 @ 10
us.rs-online.com	70288575	6.52	1	In Stock	TE Connectivity	6.52 @ 1
Onlinecomponents.com	9-1415039-1	7.24	1	104	TE Connectivity / AMP Brand	7.24 @ 1
Verical	9-1415039-1	8.3	8	64	TE Connectivity / AMP	8.3 @ 8
Digi-Key	2398517	10.3	1	174	TE Connectivity Potter & Brumfield Relays	10.3 @ 1
Mouser	655-9-1415039-1	10.94	1	1	TE Connectivity / AMP	10.94 @ 1
Zoro	G305866537	91.9	1	In Stock	Te Connectivity	91.9 @ 1
