Weg Electric 00736ET3E213JP-SG

B07BQDK2G3

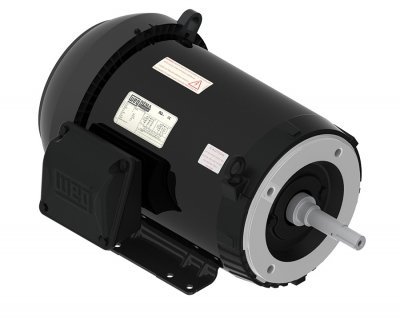

WEG Electric, 00736ET3E213JP-SG, 7.5HP, 3600RPM, 3PH, 208V;230V;460V, 213/5JP Frame, Standard Flange, Foot Mount, TEFC, Close Coupled Pump Motor w/Shaft Grounding Ring.

WEG Electric, 00736ET3E213JP-SG, 7.5HP, 3600RPM, 3PH, 208V;230V;460V, 213/5JP Frame, Standard Flange, Foot Mount, TEFC, Close Coupled Pump Motor w/Shaft Grounding Ring.zoom

Attributes

Key Value
Amperage Rating8.7 A
Application TypeJet Pump (JM/JP) Motors
ClassificationJM-JP & Jet Pump
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Degree of ProtectionIP55
Description:MOTOR 7.5HP 2P 213/5JP .
Dimensions25.079 in L
Drive End Flange TypeC-Face
EfficiencyLeft position
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight144.00
Family SeriesWEG Electric Motors
FL Amps8.67
FL Efficiency89.5
Frame213/5JP, 213JP, 215JP
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower7.5 hp, 7-1/2 hp
HP7.5
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number00736ET3E213JP-SG
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00736ET3E213JP-SG
MaterialRolled Steel
MFG Part #:00736ET3E213JP-SG
Model14329716
MountingFoot Mount
Mounting TypeFoot Mount, C-Face Foot.
NEMA Frame213/5JP
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating7.5 hp
Part Number00736ET3E213JP-SG
Phase3, 3 ph
Product TypePump
RPM3600, 3400 - 3600, 3,60.
Service Factor1.15
Speed3600 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxC
Torque Rating11.0 ft-lb
TypeClosed Couple Pump Cont.
UPC:7899058018265
Variable Torque Speed R.1000:1
Voltage230/460//190-220/380-41.
Voltage (AC)208 VAC
Voltage Rating230/460 VAC
Volts208/230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00736ET3E213JP-SG780.01In StockWEG161.0780.0 @ 1
thumbzoomWalker Industrial00736ET3E213JP-SG1233.751In Stock17WEG1233.75 @ 1
thumbzoommotorsandcontrol.com00736ET3E213JP-SG1233.751In StockWEG Electric144.01233.75 @ 1
kscdirect.comWEG 00736ET3E213JP-SG1243.761In StockWEG ELECTRIC CORP1243.76 @ 1
thumbzoomMRO Supply25201071266.651In StockWEG1266.65 @ 1
thumbzoomGalco00736ET3E213JP-SG-WEG1351.091In StockWEG Electric1351.09 @ 1
thumbzoomindustrialrefrigerationparts.com00736ET3E213JP-SG1393.61In StockWEG1393.6 @ 1
thumbzoomRadwell00736ET3E213JP-SG1500.01In StockWEG1500.0 @ 1
thumbzoomDealers Electric00736ET3E213JP-SG1501.911In StockWeg144.01501.91 @ 1
thumbzoomPurvis00736ET3E213JP-SG1503.531In StockWEG1503.53 @ 1
motionindustries.com061433662110.041In StockWEG Electric Corporation2110.04 @ 1
