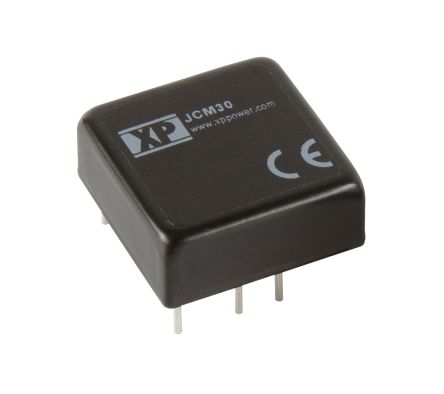

XP POWER JCM3024D12

B07695H3JY

Isolated Board Mount DC/DC Converter, 2 Output, 30 W, 12 V, 1.25 A, -12 V, 1.25 A

Isolated Board Mount DC/DC Converter, 2 Output, 30 W, 12 V, 1.25 A, -12 V, 1.25 Azoom

Attributes

Key Value
ApplicationsITE (Commercial)
Base Product NumberJCM3024
BrandXP Power
CategoryPower Supplies - Board .
Control FeaturesEnable, Active High
Current - Output (Max)1.25A, 1.25A
Depth10.4mm
DescriptionDC DC CONVERTER +/-12V .
Detailed DescriptionIsolated Module DC DC C.
Digi-Key Part Number1470-3711-ND
Efficiency91%
FeaturesRemote On/Off, OVP, SCP
Input Voltage Nominal24 V dc
Input Voltage Range18 ? 36 V dc
Isolation Voltage1.6kV dc
Length25.4mm
Load Regulation1%
ManufacturerXP Power
Manufacturer Product Nu.JCM3024D12
Manufacturer Standard L.60 Weeks
Maximum TemperatureMaximum Temperature
MfrXP Power
Minimum Temperature-40?C
Mounting TypeThrough Hole, Mounting .
Number of Outputs2
Operating Temperature-40?C ~ 100?C
Output CurrentOutput Current
Output Voltage?12V dc
Output Voltage Adjustme.?11.88 V dc, ?12.12 V dc
PackageTube, 1 x 1 in
Package / Case6-DIP Module
Part StatusActive
Power (Watts)30 W
Power RatingPower Rating
Product StatusActive
SeriesJCM30 (30W), JCM30
Size / Dimension1.00" L x 1.00" W x 0.4.
Standard Number62368-1
Standards MetCE, Conducted EN55032 C.
StockStock
TypeIsolated Module
Voltage - Input (Max)36V
Voltage - Input (Min)18V
Voltage - Isolation1.6 kV
Voltage - Output 112V
Voltage - Output 2-12V
Voltage - Output 3-
Width25.4mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7192893642.3910In StockXP Power42.39 @ 10
thumbzoomDigi-Key622091645.1116XP Power45.1 @ 1
thumbzoomNewark01AC682147.21In StockXP POWER47.2 @ 1
thumbzoomRS Delivers124-504850.4361In StockXP Power50.436 @ 1
AmazonSCB07695H3JY51.341In StockXP POWER51.34 @ 1
