- mpnC22680
- brandname: Cle-Line
- manufacturername: Cle-Line

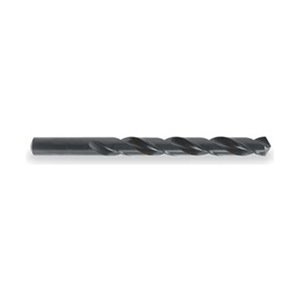

Jobber Bit, 30, High Speed Steel
- Brand: Cle-line
- PartNumber: C22680
- Model: C22680
- PackageQuantity: 1
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 797 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1285 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1285" |
| Diameter (Wire/Let) | 30 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #30 |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0386 in |
| Drill Size - Decimal In. | 0.1285 in |
| Drill Size - Wire | #30 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Tin, Black Oxide |
| Flute Length | 1-5/8 in, 1.6250", 1 5/. |
| Flute Length (Metric) | 41.27mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 7/32 in |
| Mpn | C22680 |
| Number of Flutes | 2 |
| Overall Length | 2-3/4 in, 2 3/4 in, 2.7. |
| Overall Length (Metric) | 69.85mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 1/8 in |
| Shank Length | 1.1250", 1 1/8 in |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.1285 in Dia x 1.125 i. |
| Shank Size (Metric) | 3.26mm |
| Shank Type | Straight |
| SKU | ZO-G1203702 |
| Style | 1899 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | #30 |
| UPC | 697334226802 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545073 | 0.9227 | 12 | 12 | | Cle-Line | | 0.9227 @ 12 |
 | MRO Supply | 6124273 | 1.17 | 43 | 12 | | Cle-Line | | 1.17 @ 43 |
 | Zoro | G1203702 | 1.19 | 1 | 2632 | | Cle-Line | 0.01 | 1.19 @ 12 |
 | Megadepot | C22680 | 1.48 | 1 | 12 | | Cle-Line | | 1.48 @ 12 |
 | usmegastore.com | C22680 | 1.48 | 1 | 12 | | Cle-Line | | 1.48 @ 12 |
 | heavydutydepot.com | C22680 | 1.48 | 68 | 12 | | Cle-Line | | 1.48 @ 68 |
 | Raptor Supplies | AD6TJK | 1.541943 | 1 | 12 | | CLE-LINE | | 1.541943 @ 12 |
 | sustainablesupply.com | C1465136 | 1.64 | 1 | 12 | | Cle-Line | 0.01 | 1.64 @ 12 |
 | simsupply.com | ZO-G1203702 | 7.38 | 1 | 797 | | Cle-Line | | 7.38 @ 12 |
